Pyrolysis Oil Distillation Plant

Burn the preheater first, use the flue to heat the distillation reactor, and pass the flue gas into the preheater.

Send Inquiry

PRODUCT INTRODUCTION

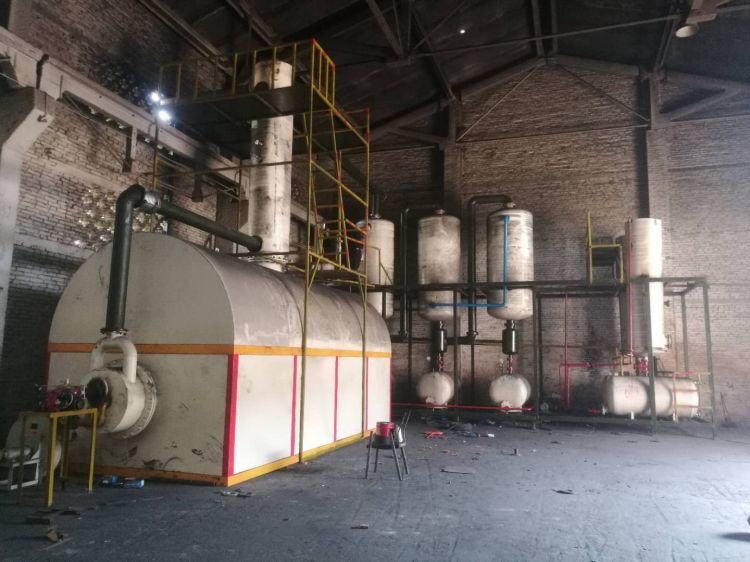

Introduction of Pyrolysis Oil Distillation Plant

product-990-496

1) Burn the preheater first, use the flue to heat the distillation reactor, and pass the flue gas into the preheater.

2) Then, the waste oil preheated by the preheater is injected into the distillation reactor through the oil pump, and the heated waste oil is subject to distillation and pyrolysis.

3) Then enter the fractionating tower to fractionate the high-temperature oil and gas.

4) The upper air outlet is mainly composed of light oil and gas components, which are introduced into the shell and tube condenser for cooling. The middle air outlet is composed of oil and gas components, which are introduced into another shell and tube condenser. A port is set at the top of the preheating tank, which is introduced into the third shell and tube condenser.

5) Condensate the above three kinds of oil and gas respectively. Three condensers correspond to three oil tanks.

6) The non condensable gas passes through the safety water seal, also known as the flame arrester, and then the non condensable gas enters the furnace as fuel to heat the distilling furnace. Thus, the operation cost of distillation equipment can be saved.

Main Technical Characteristics

(A) Different kinds of waste oil can be treated: such as waste motor oil, waste lubricating oil, tire oil, pyrolysis oil, waste diesel oil, etc.

(B) Water cooling system

"S" type tube cooling, long cooling distance and long cooling time, ensure that the oil and gas are fully condensed into oil. Improve oil yield.

The waste oil is dehydrated to prevent the waste oil from overflowing into the catalytic tower when it is heated in the distillation furnace, so as to prolong the service life of the catalyst.

(D) Flue gas treatment system

The flue gas is discharged after being treated by the dust removal system, so that it meets the discharge standard and does not pollute the environment.

(E) Oil Purification System

After the refined oil is filtered and precipitated, the color is more translucent. Improve the quality of refined oil.

(F) Electric heating system

Precise temperature control to improve the quality of refined oil.

Flowing Chart

product-528-512

Domestic Initiation

(1) The operation cost is low, and the non condensable gas generated in operation can be used as fuel.

(2) The equipment is easy to operate with low labor intensity. Only 1 worker/shift is required.

(3) Process and distill various waste oils, such as waste diesel oil, waste engine oil, various waste engine oil, waste plastic oil, tire oil, etc.

(4) The product oil is of high quality, and the cracked diesel oil can be used in industry, civil use, and even diesel engines.

(5) Good environmental protection effect. The equipment will not produce waste smoke, waste water, etc. during operation.

(6) High oil yield, up to 75% - 90% (based on the oil content of raw oil)

Production Consumption

Item	Parameter
Power	15KW-20KW
Water	50KG/day
Fuel	60KG/H
Worker	2 people

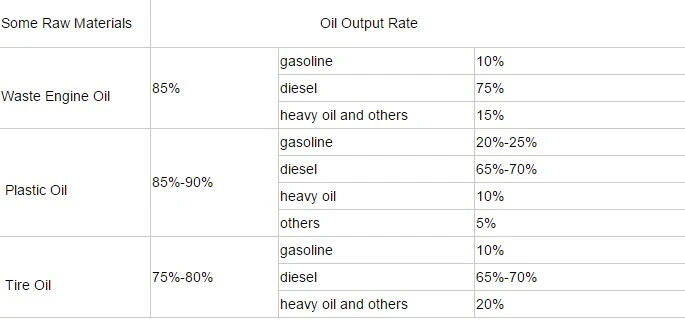

Oil Output Rate

product-685-320
