Skid-mounted Waste Pyrolysis Plant
Skid-mounted Waste Pyrolysis Plant is one kind of pyrolysis machine, which has a small capacity and is designed for free installation. This is mainly used for laboratory and farming; some farmers use this machine to get the fuel oil for their own agricultural machinery.
Technical parameters
Model: JZLY-500kg
Processing Capacity: 50kg-5T/D
Operation Mode: Batch Type
Pyrolysis Reactor Thickness: 10mm-20mm
Customization: Shape, Size, and Color
Cooling Method: Cycle Water
Application: waste tyre, plastic, rubber, oil sludge, etc.
Fuels Choice: Oil, gas, coal, electricity
Power: customized
Type of Installation: free installation
Installation Area (m): depends on the model
Details of the machine
Pyrolysis reactor
The pyrolysis reactor uses national standard Q345R boiler-grade steel plate with a thickness of 20mm and an ac-shaped head. Can withstand high temperature and high pressure; The ac-shaped head can release the trust pressure while loading the waste tires, which can extend the service of the reactor.
The insulation shell
The insulation shell adopts ceramic fiber cotton, withstands high temperature up to1260℃, use304 stainless steel welding rods for fixation, which has the advantage of high temperature resistance, non-falling off, and then adds a curing agent. It has good thermal insulation performance, saving fuel oil, is very lightweight, easy to transport, and install.
tug dispensing technology
Large standard I-beam; wide tug diameter 240mm and length 235mm to ensure stable operation.
The rear slag discharge technology
The rear slag discharge developed by our company has a short slag discharge time. It can realize one batch per day; The outlet is face to ground, not face to person, so it is safer.

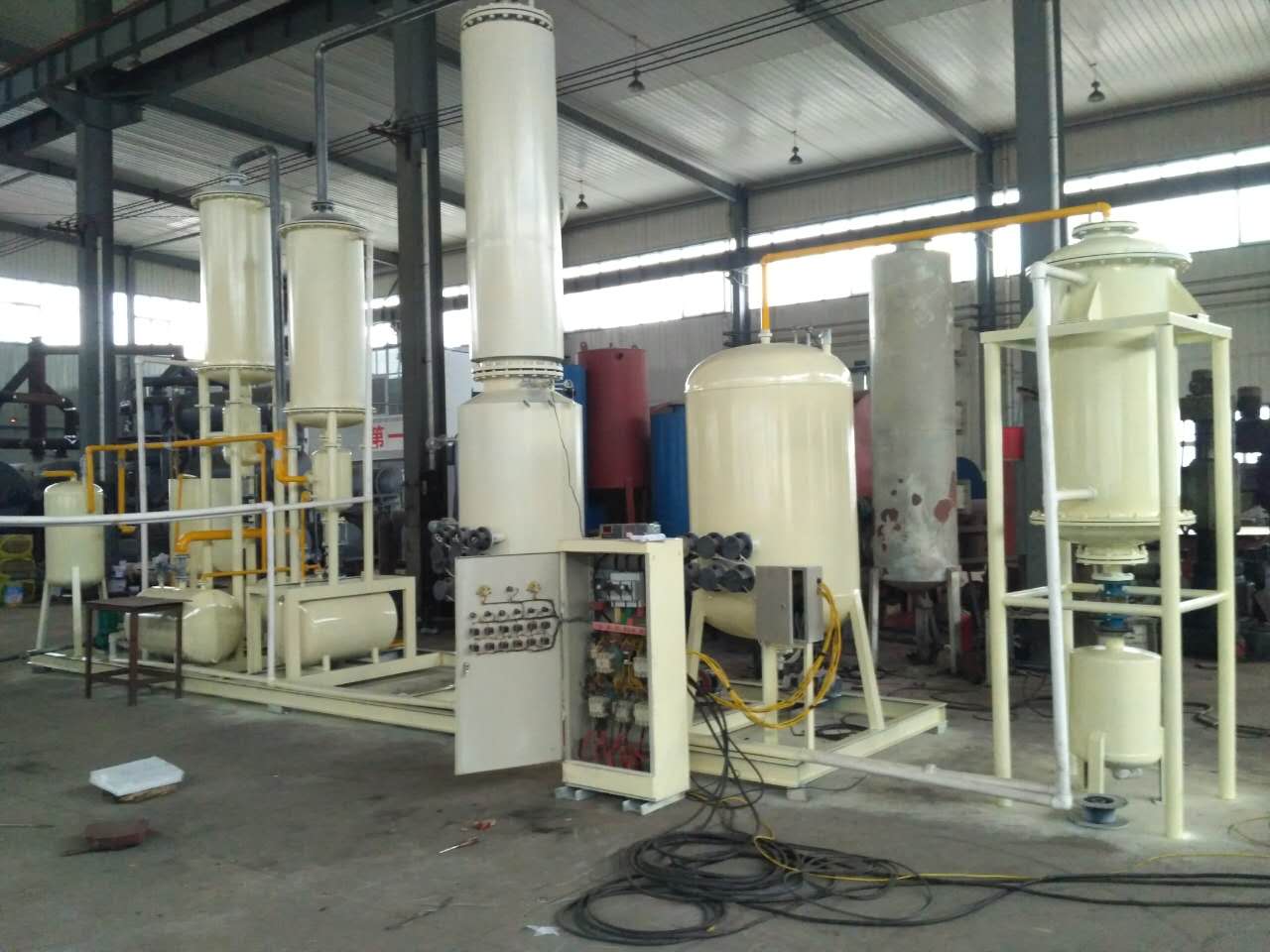

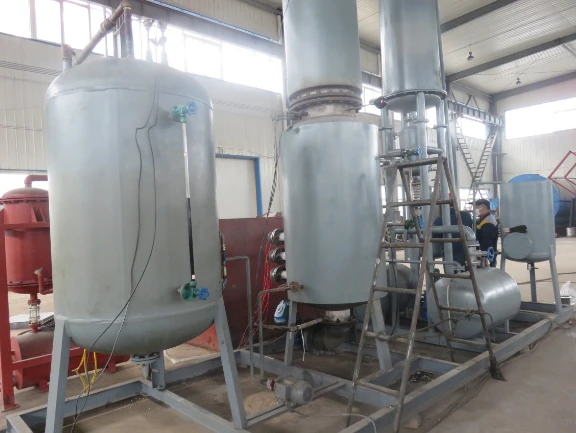

Skid-mounted Waste Pyrolysis Plant's picture
Our service
We offer a comprehensive service
In addition to the regular waste pyrolysis plant that we already have.
Pre-sales service
1. Provide project design, including layout drawings and technical data etc, if there need, we can also provide investment return analysis data for your reference.
2. Provide a real running site visit. If you need, you can take your materials to our factory to have a trial operation.
If you need, we can arrange for our engineer go to your site for your pyrolysis plant project.
Production
Provide the real-time images and videos of the pyrolysis machine's production.
Ensure equipment is of good quality and delivered on time.
Transportation service
From our order tracking department, you will receive professional transportation advice for your pyrolysis plant.
When necessary, we can be responsible for exporting the machine to your country.
Installation and commission
1. Provide professional engineering guide installation service for your machine, and our engineers will be at your service when necessary.
2. Provide commissioning service, ensure your machine can run smoothly.
3. Provide training service for your workers, ensuring your workers can run the machine by themselves.
After-sales service
1. I year warranty is provided since clients sign the act of acceptance, but lifetime technical support is provided.
We will provide lifelong tracking service for your pyrolysis equipment. During the pyrolysis machine warranty period, for product quality problems due to our manufacturing, we will be responsible for repairing or replacing parts for free.
After-sales service
3. We will provide long-term concessional pyrolysis machine parts. We stock sufficient spare parts in our warehouse for our customers, will provide professional technical advice for all products or service what you need.
4. Video conference, our engineer can go to your running site when necessary.
5. Provide 24/7 online support.
