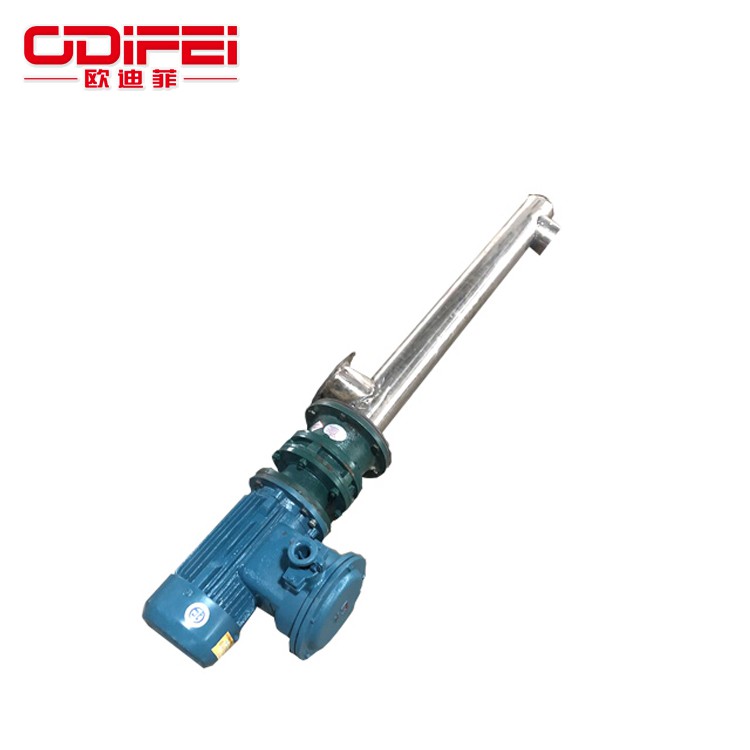

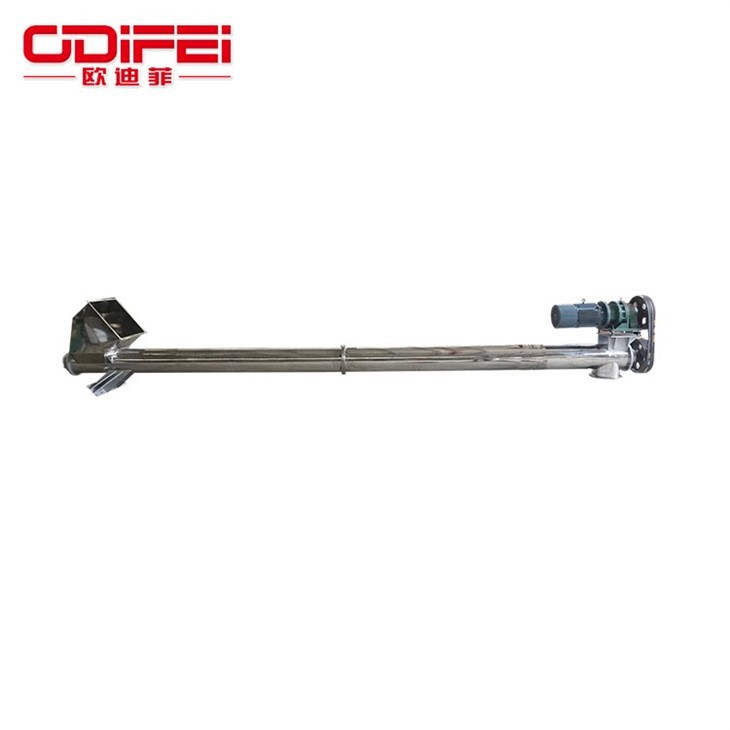

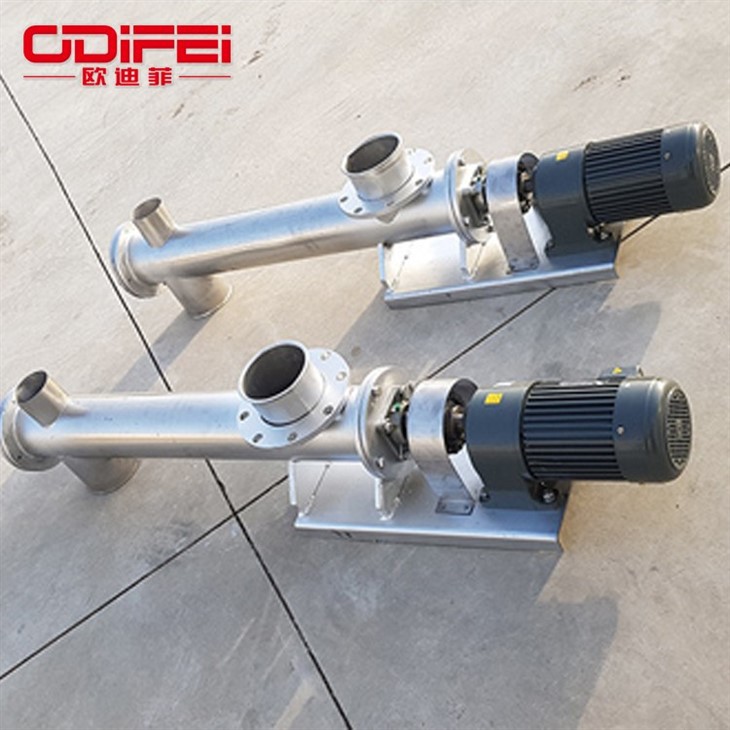

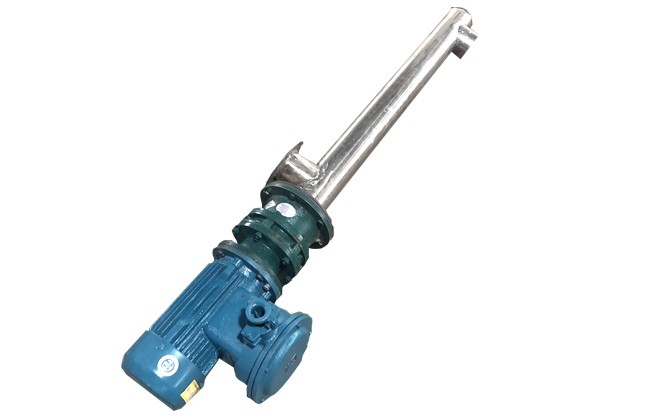

Stainless Steel Screw Conveyor



Because the stainless steel screw conveyor is polished with 304 or 316 stainless steel, it is clean and hygienic, will not rust, and the equipment has good sealing performance, which can avoid pollution to the conveyed materials and the environment, and has good wear resistance and corrosion resistance. ℃ powder, granule and small block materials. In addition, the stainless steel screw conveyor has a discharge valve at the lower end of the feeding port, and the screw can be reversed to discharge, so the discharge and cleaning are very convenient, suitable for horizontal or inclined conveying powder, granular and small block materials. In the fields of food, medicine and sewage sludge treatment.







1. Clean and hygienic, not easy to rust: all parts of the whole machine in contact with the material are made of stainless steel and polished inside and out. The gap between the inner wall of the stainless steel feeding tube and the spiral blade is not more than 3mm. The spiral blade is laser-cut, and all welding ports are polished to achieve smoothness. No residual material.

2. Corrosion resistance: It is made of 304 or 316 stainless steel, so it can avoid chemical reaction with acid and alkaline materials when conveying materials.

3. High temperature resistance: It can transport powder, granule and small block materials with temperature up to 200℃.

4. No pollution: The equipment has good sealing performance, which can avoid the phenomenon of dust flying and material leakage during the conveying process.

5. The bottom is designed with a material cleaning port. If you need to change the material, you only need to blow it down with an air gun to remove a small part of the residual material. And a safety switch is designed at the clearing port. Once the clearing door is opened, the power will be cut off, which is safe and reliable.

6. The imported universal bearing is designed with heat insulation and dustproof, and the two ends of the feeding machine are designed with imported oil seals to ensure that dust and sundries enter the bearing and have a long service life.

7. The circuit is designed for overload protection, which effectively protects the motor from burning and is durable. It has the function of stopping when the material is full, and the material is not automatically drawn. Just set the material time, no need for workers to take care of it.





LS type	100	160	200	250	315	400	500	630	800	1000	1250
GX type			200	250	300	400	500
Diameter(mm)	100	160	200	250	315	400	500	630	800	1000	1250
pitch(mm)	100	160	200	250	315	355	400	450	500	560	630
speed(r/min)	140	120	90	90	75	75	60	60	45	35	30
Capacity QΦ=0.33(m³/h)	2.2	7.6	11	22	36.4	66.1	93.1	160	223	304	458
Power Pd 1=10m(KW)	1.1	1.5	2.2	2.4	3.2	5.1	4.1	8.6	12	16	24.4
Power Pd 1=30m(KW)	1.6	2.8	3.2	5.3	8.4	11	15.3	25.9	36	48	73.3
speed(r/min)	120	90	75	75	60	60	45	45	35	30	20
Capacity QΦ=0.33(m³/h)	1.9	5.7	18	18	29.1	52.9	69.8	125	174	261	305
Power Pd 1=10m(KW)	1.0	1.3	2.1	2.1	2.9	4.1	4.7	6.8	9.4	14.1	16.5
Power Pd 1=30m(KW)	1.5	2.3	4.5	4.5	7	8.9	11.6	20.4	28.3	42.2	49.5
speed(r/min)	90	75	60	60	45	45	35	35	30	20	16
Capacity QΦ=0.33(m³/h)	1.4	4.8	15	15	21.8	39.6	54.3	97	149	174	244
Power Pd 1=10m(KW)	0.9	1.2	1.9	1.9	2.5	3.4	4.3	5.4	8.1	9.5	13.3
Power Pd 1=30m(KW)	1.2	2.2	3.8	3.8	5.4	6.8	9.2	16	24.4	28.6	39.9
speed(r/min)	75	60	45	45	35	35	30	30	20	16	13
Capacity QΦ=0.33(m³/h)	1.2	3.8	11	11	17	31.7	46.5	73.0	99.3	139	199
Power Pd 1=10m(KW)	0.75	1.1	1.6	1.6	2.1	3.1	3.7	4.6	5.7	7.7	11
Power Pd 1=30m(KW)	1.1	1.8	3.4	3.4	4.4	5.6	8	14	16.7	23.2	33



1. GX type: There are seven specifications of screw diameters including 150, 200, 250, 300, 400, 500, 600mm. Corresponding conveying system for one-way conveying with horizontal or inclination angle less than 20°.

2. LS type: LS type Luo Xuoh press conveyor is a replacement product of GX type Stainless Steel Screw Conveyor. The screw diameter is 100-1250mm, there are eleven specifications, and the driving mode has two forms of single-end drive and double-end drive. ; The length of the LS type screw feeder is every 0.5m, and the corresponding conveying system can be formed according to different site needs. Like the GX type Stainless Steel Screw Conveyor, it is used for one-way conveying with a horizontal or inclination angle less than 20°.









Stainless Steel Screw Conveyor is mainly composed of driving device, head assembly, casing, shaftless spiral body, tank lining plate, feeding port, discharging port, machine cover (when necessary), base and so on.
1. Driving device: Cycloidal pinwheel reducer or shaft-mounted hard-tooth surface gear reducer is used. In the design, the driving device should be set at the end of the discharge port as much as possible, so that the screw body is in a tension state during operation.
2. The head is equipped with a thrust bearing, which can bear the axial force generated when conveying materials.
3. Chassis: The chassis is U-shaped or O-shaped, with a rain-proof cover on the upper part, and the material is stainless steel or carbon steel or glass fiber reinforced plastic.
4. Shaftless spiral body: the material is stainless steel or carbon steel.
5. Tank lining board: the material is wear-resistant plastic plate or rubber plate or cast stone plate, etc.
6. Inlet and outlet: There are two kinds of square and round. Generally, the form of inlet and outlet is determined by the user.





Stainless steel screw conveyors are suitable for applications in which any contamination of the processed material must be strictly avoided and absolute cleanliness and perfect corrosion resistance are required, such as in environmental technology, milling of flour and animal feed, food processing and packaging, plastics and chemicals in the pharmaceutical industry as well as Sewage sludge treatment and other industries.











According to the working conditions on site, the conveying methods of the Stainless Steel Screw Conveyor are as follows. In special cases, please contact our sales staff to make the most suitable solution.When choosing a deep Stainless Steel Screw Conveyor, please note the following:











1. Material selection: The material can be divided into different types of stainless steel such as 304, 304L, 310, 316, 316L, etc., which can be reasonably selected according to the conveyed materials, and high-grade stainless steel is selected for highly corrosive materials, such as 316, 316L stainless steel, If the simple humidity is relatively high and the corrosion is weak, 304 stainless steel can be selected.

2. Workmanship standard: Since the stainless steel screw conveyor is mainly used in industries that require high sanitary conditions such as food and medicine, the machine needs to be strictly polished to make the equipment easy to clean and sterilize in the later use process.

3. Sealing requirements: The seal between the screw shaft and the bearing adopts double oil seal seal. An oil seal on the left prevents fine powder from entering the bearing seat, and a seal on the right prevents the grease of the bearing from flowing into the barrel along the axis and contaminating the material.

4. Others: such as whether it needs to be lengthened, conveying inclination, whether the feeding port needs to be equipped with a hopper, the size of the feeding hopper, etc.









1. When the screw shaft rotates, due to the gravity of the material and the frictional force generated by the tank wall, the material can only move forward along the groove bottom of the conveyor under the push of the blade, and it seems that it cannot rotate. The nut moves in translation along the rotating screw.

2. The movement of materials in the intermediate bearing depends on the thrust of the materials advancing behind them. Therefore, the transportation of materials in the conveyor is all a sliding movement.

3. In order to make the screw shaft in a more favorable tension state, the drive device and the discharge port are generally placed at the same end of the conveyor, and the feed port is placed as close as possible to the tail of the other end.

4. The rotating screw blade pushes the material for conveying, so that the force that the material does not rotate with the Stainless Steel Screw Conveyor blade is the weight of the material itself and the frictional resistance of the Stainless Steel Screw Conveyor casing to the material.

5. The surface type of the blade includes solid surface type, belt type surface type, blade surface type and other types according to the different conveying materials. The screw shaft of the Stainless Steel Screw Conveyor has a thrust bearing at the end of the material moving direction to give the screw axial reaction force with the material. When the length of the machine is long, an intermediate hanging bearing should be added.

6. The tubular Stainless Steel Screw Conveyor is mainly used for horizontal and vertical conveying of various powdery, granular and small pieces of loose materials.

7. The material will produce friction on the side wall of the tubular Stainless Steel Screw Conveyor, so it is very important to choose the size of the reducer and motor to drive the tubular Stainless Steel Screw Conveyor. As for the feeding method of the tubular Stainless Steel Screw Conveyor, the material must be fed into Jiaolong from the feeding port at first. Many manufacturers use this method to realize the feeding work.





1. Regularly check whether the transmission chain of the Stainless Steel Screw Conveyor is worn or not. If there is any abnormality, please replace it in time.

2. Check whether the link bolts of the chain plates of the Stainless Steel Screw Conveyor are tightened. If they are loose, they should be tightened in time.

3. Check the tension of the transmission chain of the Stainless Steel Screw Conveyor. Too loose and too tight will easily lead to bearing wear.

4. Regularly check whether the lubricating oil of the chain conveyor reducer needs to be added.

5. There must be no foreign matter in the Stainless Steel Screw Conveyor, which may easily cause chain jams, etc., and should be cleaned up in time.

6. Frequent startup, overload startup and full-load startup are prohibited.





1. Before starting the auger conveyor, carefully check whether there is any remaining dust and debris in the machine groove;

2. The feeding must be uniform;

3. A screen should be added to the feed port of the auger conveyor;

4. The machine slot and machine slot cover must be careful;

5. Before shutting down, the materials in the machine should be unloaded as much as possible;

6. When the machine stops in the middle of the operation, the materials in the machine should be unloaded as much as possible, and the materials in the machine cannot be discharged in time;

7. Regularly check the wear of the spiral blades;

8. Each lubricating part of the conveyor should be lubricated in strict accordance with the requirements;

9. When making harsh noises, it should be checked in time;

10. The bearings at both ends of the auger conveyor should be strictly sealed;

11. Pay close attention to monitor the temperature exceeding the allowable temperature.





Fault name	Cause	Approach
Material cannot be transported	Whether there is enough material in the hopper	Even if there is some material in the hopper, it may not be possible to deliver material if there is not a sufficient number of material "heads"
	Is there any material stuck in the hopper?	Used to inject air downwards from the outside. As air escapes from under the discs, they vibrate and inflate the material
	Check feed limit	Without enough material entering the conveyor, the desired conveying speed may not be achieved
Overcurrent	The inner wall of the box adheres to the material, and the resistance increases	clean up
	The case or bearing is bent and rubs against each other	adjust straight





Pre-Sale Service:

• Guide customers to choose the appropriate equipment model.
• Send engineering and technical personnel to the production site in time to plan the site for customers, design reasonable processes and solutions.
• We can design and manufacture products according to the special needs of customers to meet the different needs of investors



On Sale Service:

• Strict inspection of products before leaving the factory
• Ships according to contract



After-sale Service:

• The main warranty period of the equipment sold by our company is one year (except for the failure or damage caused by human factors, fuel factors or irresistible natural phenomena, and vulnerable parts are not covered by the warranty: fuel injectors, pump heads, photosensitive eyes, etc.).
• If the equipment failure is caused by human factors, the cost will be charged according to the factory price.
• After receiving the warranty notice, reply within 2 hours. 24 hours technical guidance to solve problems.







Zhengzhou Odifei Machinery Equipment Co., Ltd. has been focusing on conveying equipment for 17 years. Its main business is: spiral vibration vertical elevator, slat feeder, Stainless Steel Screw Conveyor, slat conveyor, Stainless Steel Screw Conveyor, large angle Stainless Steel Screw Conveyor, Stainless Steel Screw Conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, TH ring chain bucket elevator, NE bucket elevator, NSE bucket elevator and other full range of bucket elevators. TD75 Stainless Steel Screw Conveyor (or Stainless Steel Screw Conveyor), mobile conveyor, Stainless Steel Screw Conveyor with large inclination angle ribs; Stainless Steel Screw Conveyor, shaftless Stainless Steel Screw Conveyor; light, medium and heavy Stainless Steel Screw Conveyor; chain bucket conveyor machine, SCD trough clinker conveyor; horizontal double shaft mixer; light, medium and heavy plate feeder; GZG motor vibration feeder; trommel screen, shaftless trommel screen;

In 2010, our company's R&D team entered the resource recycling industry, and successively developed domestic waste treatment scaly conveyors, domestic waste screening and sorting shaftless trommel screens, construction waste slat feeders, and electric arc furnace scaly scrap conveyors, which not only create It also creates objective social and environmental benefits, and is an indispensable part of the resource recycling industry chain.

Zhengzhou Odifei Machinery Equipment Co., Ltd. has continuously carried out technological innovation in the spirit of excellence, and has developed several practical new products. The product is advanced in design, fine in production, reliable in performance, has international advanced level, sells well at home and abroad, and aims to be the industry leader!





Q: Are you a factory or a trading company?

A: We are a factory, established in 2007, specializing in the manufacture of spiral vibration vertical elevator, slat feeder, Stainless Steel Screw Conveyor, slat conveyor, Stainless Steel Screw Conveyor, large angle Stainless Steel Screw Conveyor, Stainless Steel Screw Conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, and so on.



Q: How about spare parts?

A: We always provide spare parts at cost price and give you a list of spare parts when you buy the machine.



Q: Will you test the machine before delivery?

A: Yes, we will test each machine and production line before delivery, and send the working video to you. You can also check with us before delivery.



Q: Can this Stainless Steel Screw Conveyor be conveyed vertically?

A: We have vertical Stainless Steel Screw Conveyors and bucket elevators. According to material characteristics and conveying height, we can choose the most suitable conveying or lifting equipment.

Q: Can the Stainless Steel Screw Conveyor cool the material?

A : Yes, you can choose a water-cooled Stainless Steel Screw Conveyor.



Q: Can the Stainless Steel Screw Conveyor have multiple inlets or outlets?

A : Yes, when feeding at multiple feed points at the same time, please pay attention to uniform feeding and control the feeding amount.











1. Please provide material name, specific gravity, particle size, etc

2. Are there other characteristics: such as viscosity, temperature, corrosivity, etc?

3. Conveying length, horizontal conveying or inclined conveying?

4. Conveying capacity / hour
