The Pipe Screw Conveyor is a major variant of the Screw Conveyor, a completely enclosed continuous conveying device that uses rotating helical blades to propel materials forward within a circular tube.
Features
1. It has a large and stable bearing capacity.
2. It has strong adaptability, convenient installation and maintenance, and long service life.
3. The whole is small in size, high in speed, fast, and evenly conveyed.
4. The discharge end of the machine is equipped with a cleaning device; the whole machine has low noise, strong adaptability, and the position of the inlet and outlet is flexible.
5. It has good sealing performance, the shell is made of seamless steel pipe, and the ends are connected by flanges, which have good rigidity.
Technical Parameters
| Model | GX150 | GX200 | GX250 | GX300 | GX400 | GX500 | GX600 |
| Spiral diameter (mm) | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| Helical pitch (mm) | 120 | 160 | 200 | 240 | 320 | 400 | 480 |
| Screw shaft rotation speed (r/min) | ≤120 | 100 | 90 | 80 | 71 | 63 | 50 |
| Maximum power | Y example 00.55-100KW | ||||||
| Gearbox type | ZQ250-ZQ850 | ||||||
| Maximum conveying capacity (m³/h) | 4.5 | 8.5 | 16.5 | 32.5 | 54 | 79 | 139 |
| Maximum conveying length (m) | ≤70 | ||||||
| Large tilt angle | ≤15° | ||||||
The Structure
Pipe Screw Conveyor is mainly composed of the driving device, head assembly, casing, shaftless spiral body, tank lining plate, feeding port, discharging port, machine cover (when necessary), base, and so on.
1. Driving device: A cycloidal pinwheel reducer or a shaft-mounted hard-tooth surface gear reducer is used. In the design, the driving device should be set at the end of the discharge port as much as possible, so that the screw body is in a tension state during operation.

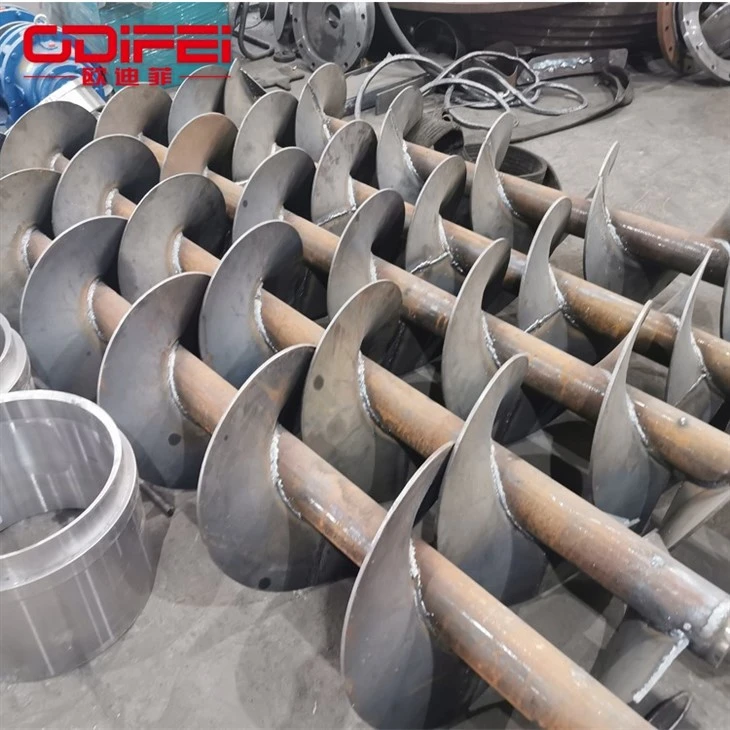

2. Shaftless spiral body: the material is stainless steel or carbon steel.
3. Tank lining board: the material is a wear-resistant plastic plate or rubber plate, or a cast stone plate, etc.
4. Inlet and outlet: There are two kinds of square and round. Generally, the form of the inlet and outlet is determined by the user.

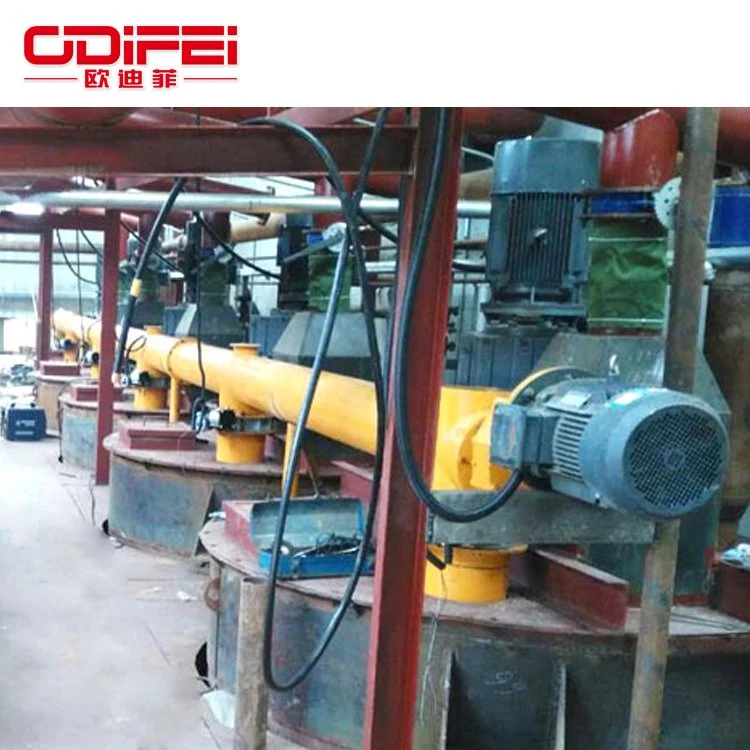

screw conveyor application
Pipe Screw Conveyor are experts in the enclosed conveying of powders and granular materials, playing a key role in numerous industrial sectors: In flour mills and feed plants, they silently transport golden wheat grains and corn, safeguarding the source of food production; In dusty cement mixing plants, they convey cement and fly ash in an enclosed manner, becoming a key player in environmentally friendly production;

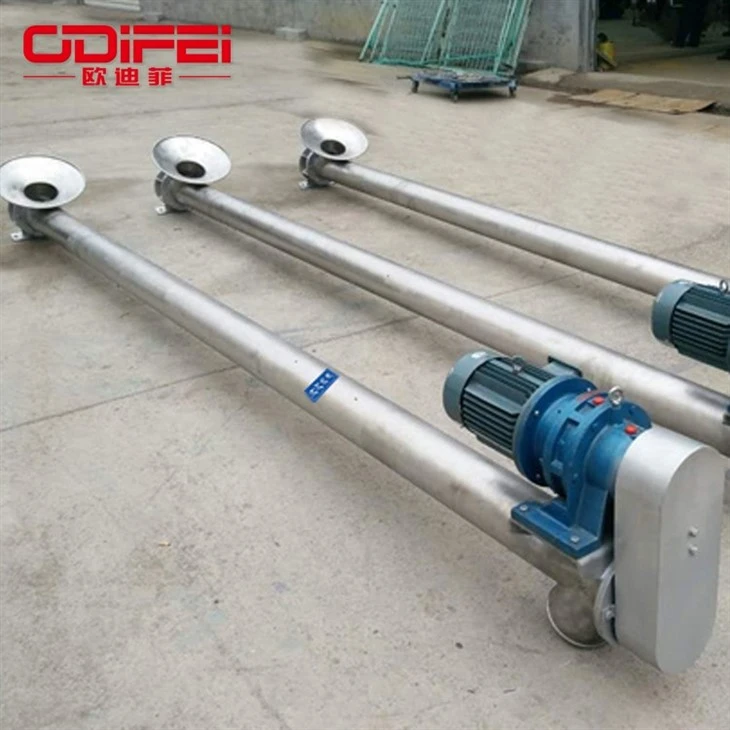

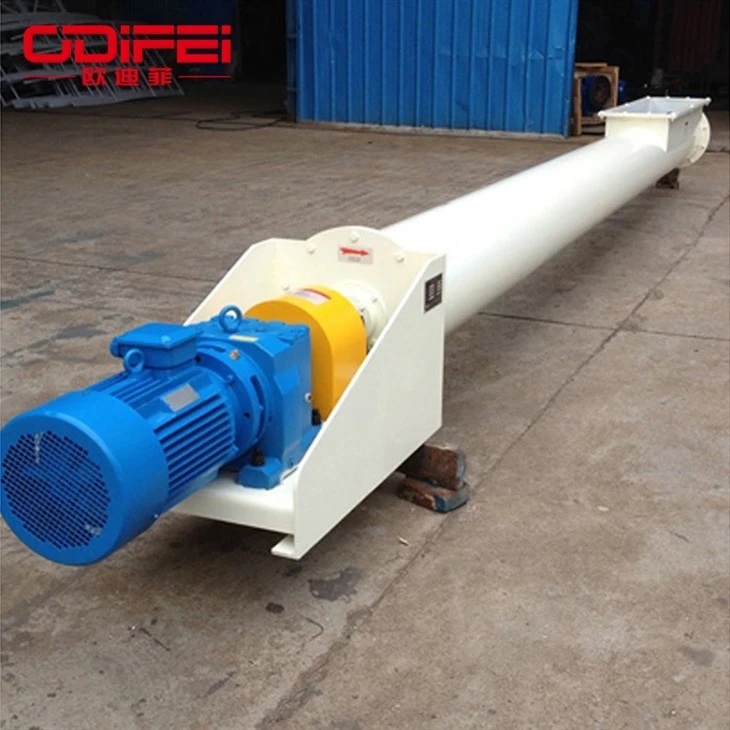

details display
