Mobile Screw Conveyor

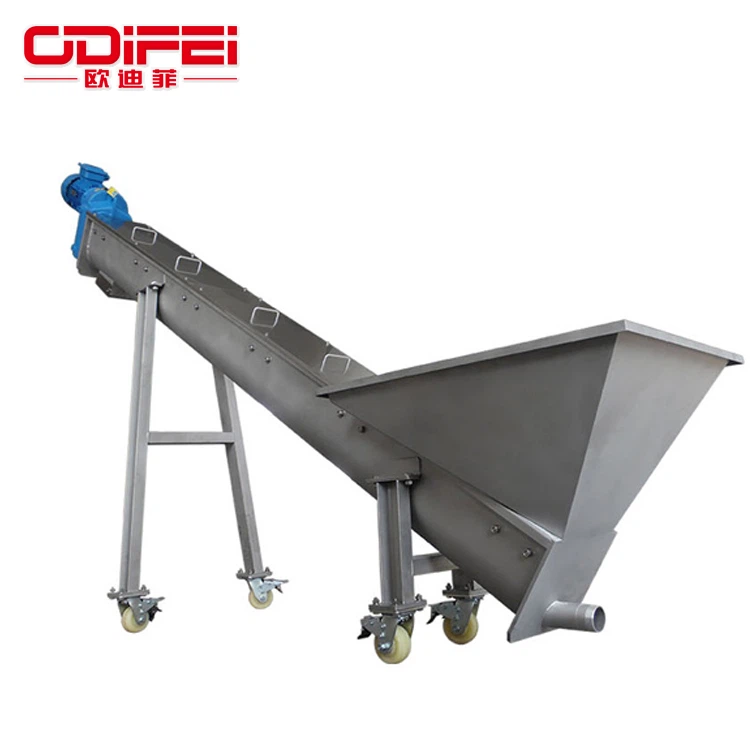

The mobile screw conveyor is equipped with a universal wheel at the bottom of the conventional screw conveyor, which is convenient to move and is suitable for the transportation of bulk materials in an unfixed position. The material box is designed to be separated, the material box vibrates and the amplitude is adjustable, and it is easy to load and unload. In order to facilitate the cleaning of residual materials, it is designed as follows: the screw can be reversed for discharging, the lower end of the material pipe has a gate for discharging, and the whole screw can be easily taken out. The inlet and outlet of the mobile screw conveyor of Zhengzhou Oudifei Machinery Equipment Co., Ltd. can be made into the required inclination angle according to the situation of the work site, and it can be connected and fixed with other supporting equipment.







1. The bottom can be moved freely. The bottom is equipped with moving wheels, which can be moved at will according to the site conditions. Two people can push it into and out of the warehouse, which can be used for occasions where the loading and unloading places change.

2. Large processing capacity

It can be inclined and arranged vertically, the conveying capacity can reach 199 cubic meters per hour, and the length can reach 70 meters.

3. Control at will

The feeding motor and the vibrating motor are controlled by their respective switches and the vibration amplitude is adjustable, and the whole screw can be easily disassembled and cleaned.

4. The amount of feeding is adjustable

The machine has automatic feeding and automatic stop (independent use needs to install our company's control system in order to complete the automatic feeding function)

5. Easy to install and disassemble

Soft connection between the screw and the barrel and the silo, easy to disassemble; there is a valve and a forward and reverse switch at the lower end of the barrel, which is convenient for cleaning;

A screw conveyor usually consists of three parts: the screw body, the in-out device, and the drive device.





LS type	100	160	200	250	315	400	500	630	800	1000	1250
GX type			200	250	300	400	500
Diameter(mm)	100	160	200	250	315	400	500	630	800	1000	1250
pitch(mm)	100	160	200	250	315	355	400	450	500	560	630
speed(r/min)	140	120	90	90	75	75	60	60	45	35	30
Capacity QΦ=0.33(m³/h)	2.2	7.6	11	22	36.4	66.1	93.1	160	223	304	458
Power Pd 1=10m(KW)	1.1	1.5	2.2	2.4	3.2	5.1	4.1	8.6	12	16	24.4
Power Pd 1=30m(KW)	1.6	2.8	3.2	5.3	8.4	11	15.3	25.9	36	48	73.3
speed(r/min)	120	90	75	75	60	60	45	45	35	30	20
Capacity QΦ=0.33(m³/h)	1.9	5.7	18	18	29.1	52.9	69.8	125	174	261	305
Power Pd 1=10m(KW)	1.0	1.3	2.1	2.1	2.9	4.1	4.7	6.8	9.4	14.1	16.5
Power Pd 1=30m(KW)	1.5	2.3	4.5	4.5	7	8.9	11.6	20.4	28.3	42.2	49.5
speed(r/min)	90	75	60	60	45	45	35	35	30	20	16
Capacity QΦ=0.33(m³/h)	1.4	4.8	15	15	21.8	39.6	54.3	97	149	174	244
Power Pd 1=10m(KW)	0.9	1.2	1.9	1.9	2.5	3.4	4.3	5.4	8.1	9.5	13.3
Power Pd 1=30m(KW)	1.2	2.2	3.8	3.8	5.4	6.8	9.2	16	24.4	28.6	39.9
speed(r/min)	75	60	45	45	35	35	30	30	20	16	13
Capacity QΦ=0.33(m³/h)	1.2	3.8	11	11	17	31.7	46.5	73.0	99.3	139	199
Power Pd 1=10m(KW)	0.75	1.1	1.6	1.6	2.1	3.1	3.7	4.6	5.7	7.7	11
Power Pd 1=30m(KW)	1.1	1.8	3.4	3.4	4.4	5.6	8	14	16.7	23.2	33



1. GX type: There are seven specifications of screw diameters including 150, 200, 250, 300, 400, 500, 600mm. Corresponding conveying system for one-way conveying with horizontal or inclination angle less than 20°.

2. LS type: LS type Luo Xuoh press conveyor is a replacement product of GX type Mobile screw conveyor. The screw diameter is 100-1250mm, there are eleven specifications, and the driving mode has two forms of single-end drive and double-end drive. ; The length of the LS type screw feeder is every 0.5m, and the corresponding conveying system can be formed according to different site needs. Like the GX type Mobile screw conveyor, it is used for one-way conveying with a horizontal or inclination angle less than 20°.









Mobile screw conveyor is mainly composed of driving device, head assembly, casing, shaftless spiral body, tank lining plate, feeding port, discharging port, machine cover (when necessary), base and so on.
1. Driving device: Cycloidal pinwheel reducer or shaft-mounted hard-tooth surface gear reducer is used. In the design, the driving device should be set at the end of the discharge port as much as possible, so that the screw body is in a tension state during operation.
2. The head is equipped with a thrust bearing, which can bear the axial force generated when conveying materials.
3. Chassis: The chassis is U-shaped or O-shaped, with a rain-proof cover on the upper part, and the material is stainless steel or carbon steel or glass fiber reinforced plastic.
4. Shaftless spiral body: the material is stainless steel or carbon steel.
5. Tank lining board: the material is wear-resistant plastic plate or rubber plate or cast stone plate, etc.
6. Inlet and outlet: There are two kinds of square and round. Generally, the form of inlet and outlet is determined by the user.





Horizontal Mobile screw conveyors can be used for powder, granular and small block materials in various industries for conveying, metering, cooling, mixing, separation, compaction and loading. According to your requirements, horizontal Mobile screw conveyors can achieve dust-proof, gas-free Tight or watertight, thus protecting not only your product from external influences, but also the environment.





Such as: Coal mine, ash, slag, cement, grain, recycled rubber powder, zinc oxide, calcium carbonate, etc., the material temperature is less than 200 ℃. The screw machine is not suitable for conveying materials that are perishable, viscous, and easy to agglomerate.











According to the working conditions on site, the conveying methods of the Mobile screw conveyor are as follows. In special cases, please contact our sales staff to make the most suitable solution.When choosing a deep Mobile screw conveyor, please note the following:











1. When the screw shaft rotates, due to the gravity of the material and the frictional force generated by the tank wall, the material can only move forward along the groove bottom of the conveyor under the push of the blade, and it seems that it cannot rotate. The nut moves in translation along the rotating screw.

2. The movement of materials in the intermediate bearing depends on the thrust of the materials advancing behind them. Therefore, the transportation of materials in the conveyor is all a sliding movement.

3. In order to make the screw shaft in a more favorable tension state, the drive device and the discharge port are generally placed at the same end of the conveyor, and the feed port is placed as close as possible to the tail of the other end.

4. The rotating screw blade pushes the material for conveying, so that the force that the material does not rotate with the Mobile screw conveyor blade is the weight of the material itself and the frictional resistance of the Mobile screw conveyor casing to the material.

5. The surface type of the blade includes solid surface type, belt type surface type, blade surface type and other types according to the different conveying materials. The screw shaft of the Mobile screw conveyor has a thrust bearing at the end of the material moving direction to give the screw axial reaction force with the material. When the length of the machine is long, an intermediate hanging bearing should be added.

6. The tubular Mobile screw conveyor is mainly used for horizontal and vertical conveying of various powdery, granular and small pieces of loose materials.

7. The material will produce friction on the side wall of the tubular Mobile screw conveyor, so it is very important to choose the size of the reducer and motor to drive the tubular Mobile screw conveyor. As for the feeding method of the tubular Mobile screw conveyor, the material must be fed into Jiaolong from the feeding port at first. Many manufacturers use this method to realize the feeding work.





1. Regularly check whether the transmission chain of the Mobile screw conveyor is worn or not. If there is any abnormality, please replace it in time.

2. Check whether the link bolts of the chain plates of the Mobile screw conveyor are tightened. If they are loose, they should be tightened in time.

3. Check the tension of the transmission chain of the Mobile screw conveyor. Too loose and too tight will easily lead to bearing wear.

4. Regularly check whether the lubricating oil of the chain conveyor reducer needs to be added.

5. There must be no foreign matter in the Mobile screw conveyor, which may easily cause chain jams, etc., and should be cleaned up in time.

6. Frequent startup, overload startup and full-load startup are prohibited.





1. Before starting the auger conveyor, carefully check whether there is any remaining dust and debris in the machine groove;

2. The feeding must be uniform;

3. A screen should be added to the feed port of the auger conveyor;

4. The machine slot and machine slot cover must be careful;

5. Before shutting down, the materials in the machine should be unloaded as much as possible;

6. When the machine stops in the middle of the operation, the materials in the machine should be unloaded as much as possible, and the materials in the machine cannot be discharged in time;

7. Regularly check the wear of the spiral blades;

8. Each lubricating part of the conveyor should be lubricated in strict accordance with the requirements;

9. When making harsh noises, it should be checked in time;

10. The bearings at both ends of the auger conveyor should be strictly sealed;

11. Pay close attention to monitor the temperature exceeding the allowable temperature.





Pre-Sale Service:

• Guide customers to choose the appropriate equipment model.
• Send engineering and technical personnel to the production site in time to plan the site for customers, design reasonable processes and solutions.
• We can design and manufacture products according to the special needs of customers to meet the different needs of investors



On Sale Service:

• Strict inspection of products before leaving the factory
• Ships according to contract



After-sale Service:

• The main warranty period of the equipment sold by our company is one year (except for the failure or damage caused by human factors, fuel factors or irresistible natural phenomena, and vulnerable parts are not covered by the warranty: fuel injectors, pump heads, photosensitive eyes, etc.).
• If the equipment failure is caused by human factors, the cost will be charged according to the factory price.
• After receiving the warranty notice, reply within 2 hours. 24 hours technical guidance to solve problems.







Zhengzhou Odifei Machinery Equipment Co., Ltd. has been focusing on conveying equipment for 17 years. Its main business is: spiral vibration vertical elevator, slat feeder, Mobile screw conveyor, slat conveyor, Mobile screw conveyor, large angle Mobile screw conveyor, Mobile screw conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, TH ring chain bucket elevator, NE bucket elevator, NSE bucket elevator and other full range of bucket elevators. TD75 Mobile screw conveyor (or Mobile screw conveyor), mobile conveyor, Mobile screw conveyor with large inclination angle ribs; Mobile screw conveyor, shaftless Mobile screw conveyor; light, medium and heavy Mobile screw conveyor; chain bucket conveyor machine, SCD trough clinker conveyor; horizontal double shaft mixer; light, medium and heavy plate feeder; GZG motor vibration feeder; trommel screen, shaftless trommel screen;

In 2010, our company's R&D team entered the resource recycling industry, and successively developed domestic waste treatment scaly conveyors, domestic waste screening and sorting shaftless trommel screens, construction waste slat feeders, and electric arc furnace scaly scrap conveyors, which not only create It also creates objective social and environmental benefits, and is an indispensable part of the resource recycling industry chain.

Zhengzhou Odifei Machinery Equipment Co., Ltd. has continuously carried out technological innovation in the spirit of excellence, and has developed several practical new products. The product is advanced in design, fine in production, reliable in performance, has international advanced level, sells well at home and abroad, and aims to be the industry leader!









Q: Are you a factory or a trading company?

A: We are a factory, established in 2007, specializing in the manufacture of spiral vibration vertical elevator, slat feeder, Mobile screw conveyor, slat conveyor, Mobile screw conveyor, large angle Mobile screw conveyor, Mobile screw conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, and so on.



Q: How about spare parts?

A: We always provide spare parts at cost price and give you a list of spare parts when you buy the machine.



Q: Will you test the machine before delivery?

A: Yes, we will test each machine and production line before delivery, and send the working video to you. You can also check with us before delivery.



Q: Can this Mobile screw conveyor be conveyed vertically?

A: We have vertical Mobile screw conveyors and bucket elevators. According to material characteristics and conveying height, we can choose the most suitable conveying or lifting equipment.

Q: Can the Mobile screw conveyor cool the material?

A : Yes, you can choose a water-cooled Mobile screw conveyor.



Q: Can the Mobile screw conveyor have multiple inlets or outlets?

A : Yes, when feeding at multiple feed points at the same time, please pay attention to uniform feeding and control the feeding amount.











1. Please provide material name, specific gravity, particle size, etc

2. Are there other characteristics: such as viscosity, temperature, corrosivity, etc?

3. Conveying length, horizontal conveying or inclined conveying?

4. Conveying capacity / hour
