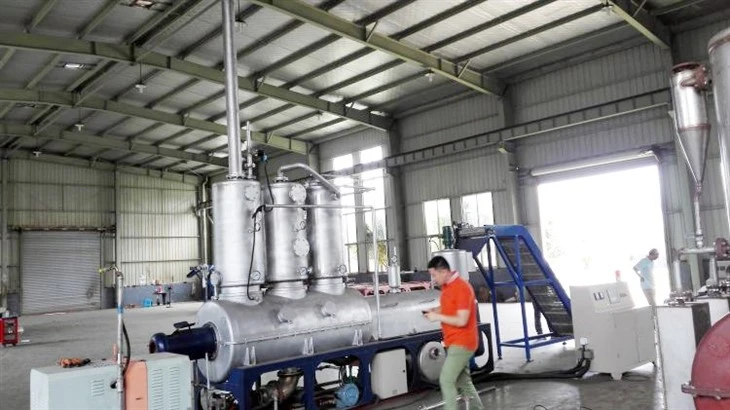

Plastic Pyrolysis Machine

The plastic pyrolysis machine is similar to the tyre pyrolysis machine; it is used to pyrolyze the waste solids. The difference is that this kind of pyrolysis machine, produced by our Jinzhen company, is used to pyrolyze waste plastic, such as PE, ABS, and so on. It converts the plastic into pyrolysis oil, carbon black, and syngas.

The working process of the plastic pyrolysis machine is described below:

1. Put the waste plastic into the pyrolysis reactor; you can do it manually or use an auto feeder.

2. After feeding the plastic, close the reactor door, and start to heat the pyrolysis reactor. When the temperature of the pyrolysis reactor reaches a certain point, usually it is about 120-150℃,  oil gas will be generated.

3. The oil gas will go through the pipe, enter the cooling system, then be cooled down to liquid pyrolysis oil, store in the oil tank. There are some oil gases which can not be cooled; we call them non-condensable gases. These oil gases will go through the waste gas pipe and then reach the furnace to heat the pyrolysis reactor again.

4. After finishing the pyrolysis process, carbon black will be discharged by the slag discharge devices.

5. Use the dust removal system to deal with the flue gas generated in the pyrolysis process to remove the solid particles contained in the flue gas.

Now we have become one of the leading manufacturers of pyrolysis machines in China. Our plastic pyrolysis machine has the following advantages :

1. The operation of the plastic pyrolysis machine is 100% safe.

2. The non-condensable gas can be recycled by heating the pyrolysis reactor,  which can save fuel energy.

3. Our kind of pyrolysis machine has many kinds of designs, and we can customize depend on your detailed requirements.

Below is some small model of the pyrolysis machine's technical data. If you want to customize a bigger daily capacity, contact us, and we can design this for you.

Item	Details
Model	JZLY-30KG	JZLY-50KG	JZLY-100KG	JZLY-300KG
Daily Capacity	30KG	50KG	100KG	300KG
Operation mode	Batch
Raw Materials	Waste Plastic, Tyre, Rubber, Oil Sludge
Reactor Size	D0.6*L1.0m	D0.8*L1.5m	D1*L2m	D1.4*L2.5m
Pattern	Horizontal & Rotary
Heating Materials	Charcoal, Wood, Fuel Oil, Natural Gas, LPG, etc.
Total Power	3kw/h	3kw/h	10kw/h	10kw/h
Floor Area	3㎡	5㎡	15㎡	30㎡
Operating Pressure	Normal Pressure
Cooling Method	Water Cooling
Life span	5-8 Years

After the pyrolysis process, you will obtain pyrolysis oil, carbon black, and flammable gas.

1. Pyrolysis oil(Plastic oil) can be widely used in iron and steel, boiler plants, ceramics, electric power, chemical industry, or hotels, guesthouses, and other industries, as fuel oil or generator sets.

2. Carbon black can be used as a clay brick or fuel.

3. Flammable gas(Non-condensable combustible gas) can be recycled and used to heat the reactor.
