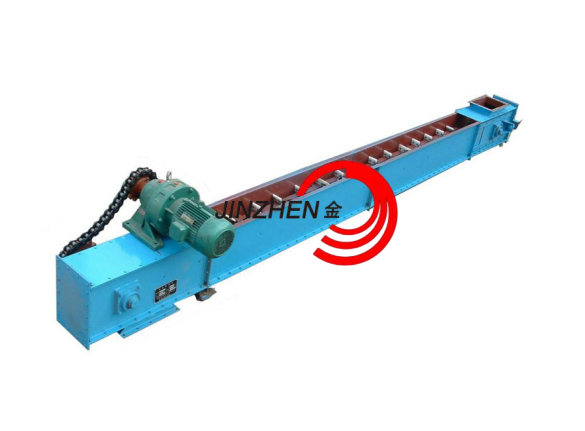

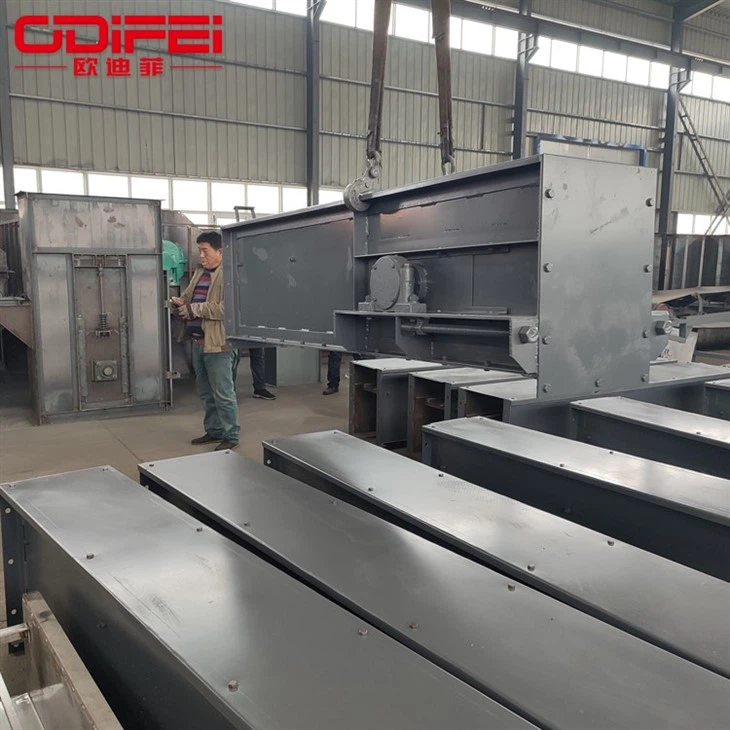

Belt Scraper Conveyor

The Belt scraper conveyor is that the open chute is used as a bearing member for coal, gangue, or materials, and the scraper is fixed on the chain (composed of a scraper chain) as a traction member.

1. Large conveying capacity.

2. Low energy consumption. With the help of the internal friction of the material, the pushing material is pulled, and the maximum work done by the moving parts becomes effective work. Compared with the screw conveyor, it saves 30% - 60% electricity.

3. Long service life and low cost. Alloy steel or 45# steel is used as the conveyor chain, and its normal service life is more than 5 years.

4. Sealed and safe. Fully sealed casing of the whole machine

5. Flexible process layout. It can be transported uphill or obliquely.

 The types of scrapers used in belt scraper conveyor are mainly classified according to their shape, function, installation method, and the characteristics of the materials they apply to. Different types of scrapers determine the conveying efficiency, applicable scenarios, and wear conditions.

Material Characteristics:

Lightweight and fluffy → U-shaped scraper is preferred.

Moist and sticky → A V-shaped scraper or scraper with non-stick coating is preferred.

Highly abrasive → O-shaped or H-shaped scraper made of wear-resistant material.

Conveying Conditions:

Sard angle or vertical conveying → Requires a grid-type scraper.

High capacity → Select U-shaped or oversized scraper.

Easy replacement → External, replaceable blade design.

MC, MZ, GSZ, GSL
Model		12	16	18	20	25	30	32	35	40	50	60	63
Slot width(mm)		120	160	180	200	250	300	320	350	400	500	600	630
scraper chain	length of each(mm)	100	100	125	125	125	200	200	200	200	200	250	250
		125	125			160
	Line speedm/s	0.1 - 0.183	0.133 - 0.183			0.283- 0.25	0.21-0.26		0.26-0.206			0.25-0.35
Conveying capacity (m³/h)		3.89 - 5.17	9.22 - 12.67	10.37 - 14.25	12.8 - 17.16	33 - 36	36.29- 44.39	38.7 - 47.92	56.7 - 69.4	64.8 - 79.3	90 - 110.16	118.8 - 166.32	124.74 - 174.64
Conveying distance (m)		Vertical 20 horizontal 25
Motor power(kw)		2.2-22

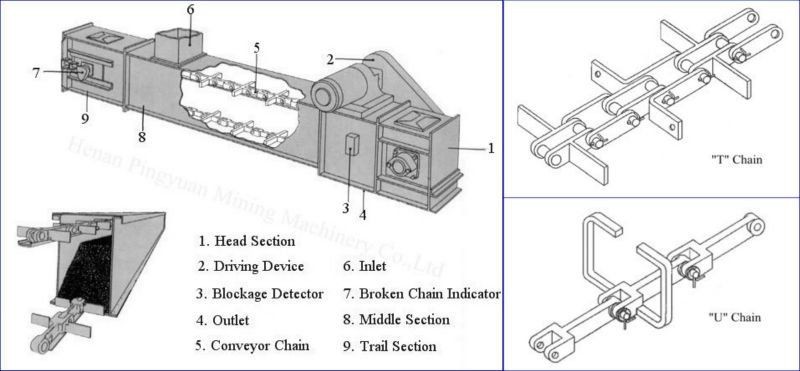

(1) Transmission system

The transmission system consists of a motor, a reducer, and a coupling, which is the power part of the Belt scraper conveyor. The layout of the transmission system has two basic forms, vertical type and horizontal type, and can also be adjusted according to the site location. In order to facilitate installation, a chassis for installing the motor and reducer is designed under the transmission device.

(2) nose frame

The main function of the nose frame is to support the head wheel assembly.

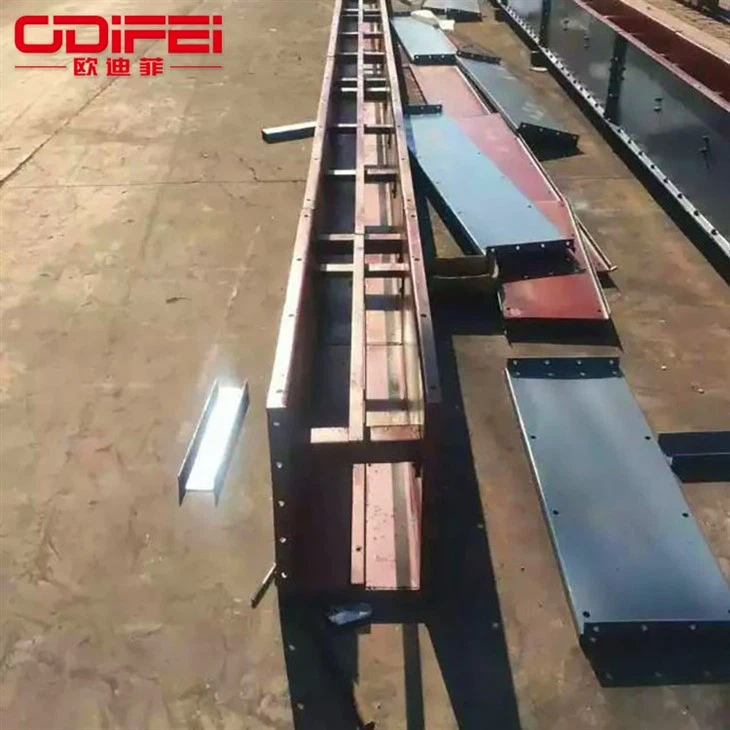

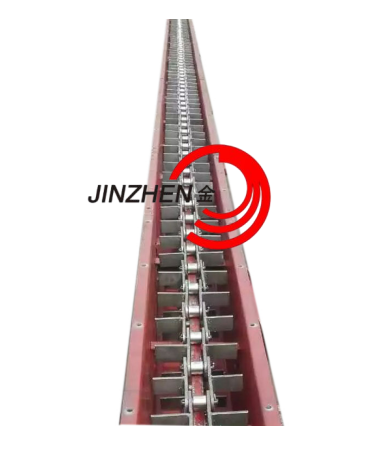

(3) Middle slot

The middle groove is the main body of the Belt scraper conveyor, and has the function of supporting the material and guiding the scraper chain.

(4) Tailstock

The tailstock mainly supports the tail wheel assembly and the tensioning device.

(5) Tail wheel assembly

The tail wheel assembly is composed of a shaft, sprocket, and bearing.

The process layout of scraper conveyors is key to their adaptability to different production scenarios, and is mainly classified based on their role in the process flow, conveying path, and directional changes. The following are some common process layout methods:

The process layout of scraper conveyors embodies their "flexibility" and "adaptability." From simple horizontal lines to complex "Z"-shaped inclines, from single-transport to convergence and diversion networks, and even special designs for circulation and shuttle systems, each layout is designed to optimally solve specific material handling challenges. A successful layout design is the result of a perfect combination of process flow, space planning, and equipment characteristics.

Due to the different use conditions, use space, and coal seam thickness, the requirements for conveying capacity and laying length are also different. Therefore, there are many types of Belt scraper conveyors produced and used at home and abroad.
