Double Chain Conveyor

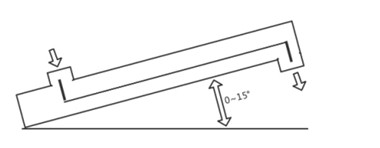

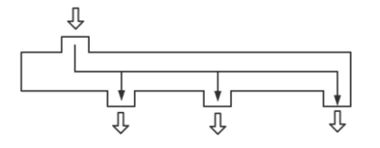

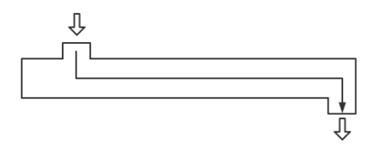

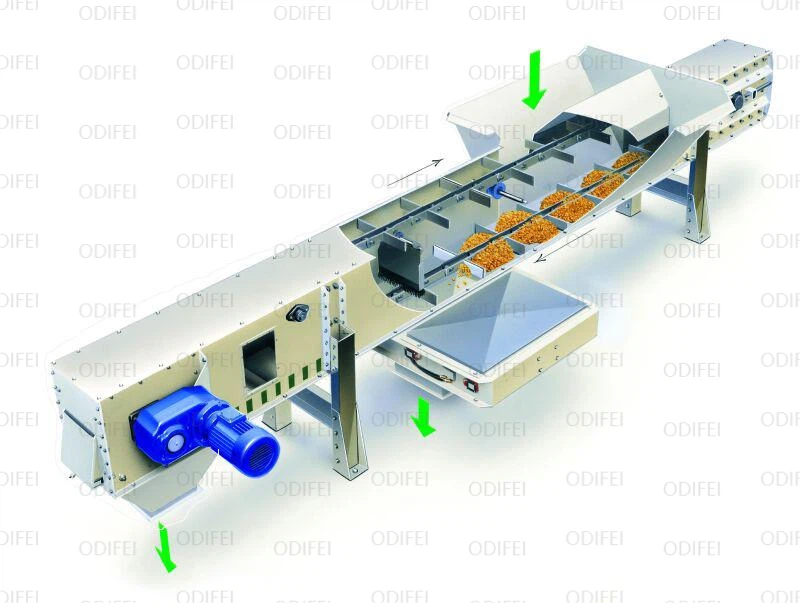

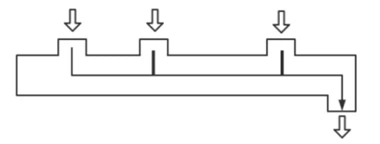

The main structure and components of various types of Double chain conveyors are basically the same. It consists of three parts: the nose, the middle and the tail. Double chain conveyors can be used for horizontal transport as well as inclined transport. When transporting upward along the inclination, the inclination angle of the coal seam shall not exceed 25°, and when transporting downward, the inclination angle shall not exceed 20°. The flexible Double chain conveyor is allowed to bend 2°～4° in the horizontal and vertical directions.







1. Large transportation volume.

2. Long transportation distance.

3. High-power motor.

4. Long life.









Model	Slot width(mm)	Ideal granularity(mm)	10% maximum granularity(mm)	Basic conveying capacity(m³/h)						Materials Humidity(theory)
				chain speed
				10	13.5	15	16	20	25	≤5% To the extent that the hands can be squeezed into a ball and scattered after the sale, it can still be loose.
FU150	150	<4	<8	6-7		9		12	15
FU200	200	<5	<10	12		18		22	27
FU270	270	<7	<15	16	20	25	30	35	45
FU350	350	<9	<18		40	55	70	90	130
FU410	410	<11	<21		50	80		120	175
FU500	500	<13	<25		100	140		160	240
FU600	600	<<15	<<30		150	190		230	310
FU700	700	<<18	<<32		200	250		310	400



Note:

1. The chain can be customized: ring chain, plate chain, die forging chain, etc.

2. Types are: single-chain scraper, double-chain scraper, multi-chain scraper, etc.







(1) Transmission system

The transmission system consists of a motor, a reducer and a coupling, which is the power part of the Double chain conveyor. The layout of the transmission system has two basic forms, vertical type and horizontal type, and can also be adjusted according to the site location. In order to facilitate installation, a chassis for installing the motor and reducer is designed under the transmission device.

(2) nose frame

The main function of the nose frame is to support the head wheel assembly.

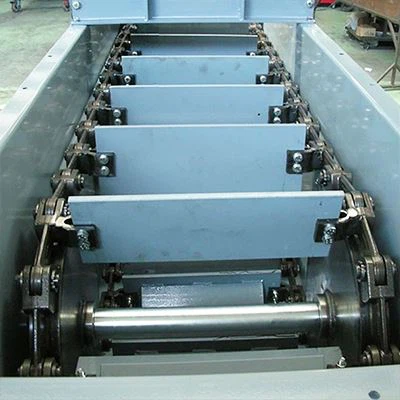

(3) Head wheel assembly

The head wheel assembly is composed of a transmission shaft, a sprocket and a bearing part. The sprocket is connected to the drive shaft by a key, and the power output by the reducer is transmitted to the scraper chain through the drive shaft and the sprocket, so that the scraper chain can perform infinitely closed circular motion.

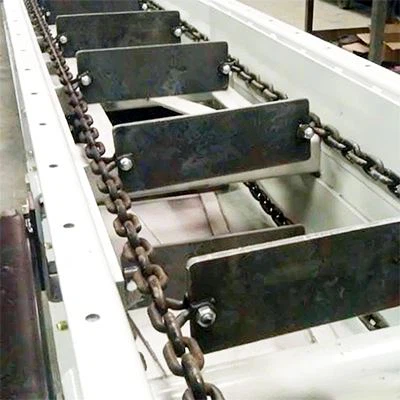

(4) Scraper chain

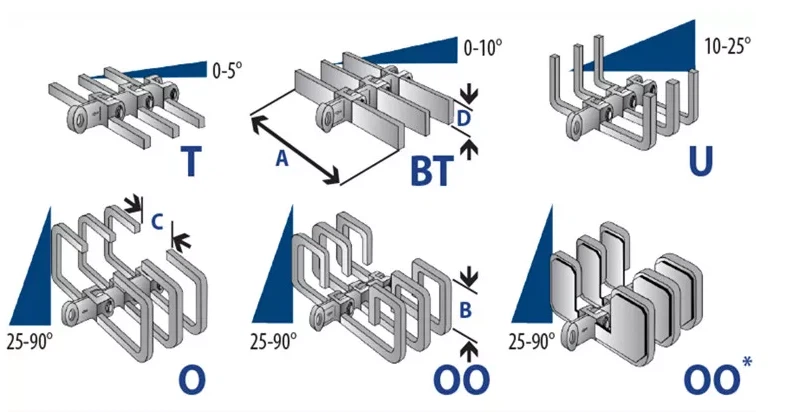

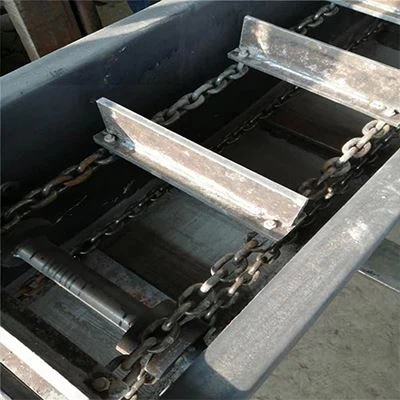

The scraper chain is composed of chain, connecting ring and scraper. The scraper is connected and fixed on the chain through the connecting ring, and the material is transported by the pushing or pulling of the scraper.

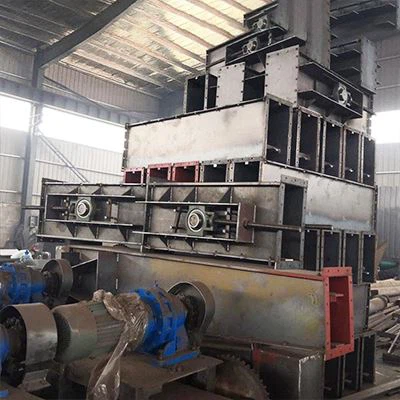

(5) Middle slot

The middle groove is the main body of the Double chain conveyor, and has the function of supporting the material and guiding the scraper chain.

(6) Tailstock

The tailstock mainly supports the tail wheel assembly and the tensioning device.

(7) Tail wheel assembly

The tail wheel assembly is composed of shaft, sprocket and bearing.

(8) Tensioning device

The main function of the tensioning device is to pull the bearing seat of the tail sprocket through the screw rod, so that the tail sprocket moves backward to tension the scraper chain.









Coal powder, crushed coal, soot, carbon black, ammonium bicarbonate, pyrite powder, ammonium chloride, copper concentrate powder, alumina powder, gypsum powder, limestone powder, soda powder, urea, activated carbon, sodium oxide, silicon Calcium acid, asbestos powder, synthetic resin, rubber powder, calcium carbide, pottery ten, synthetic fertilizer, powdered pesticide, calcium sulfate, thiamine, soda ash, powdered medicine, wheat, soybean, rice, sugar, starch, crushed charcoal, wood chips , sawdust, polyvinyl alcohol synthetic detergent, fly ash phosphate fertilizer, etc.





High temperature, toxic, flammable and explosive, highly abrasive, highly corrosive, highly adhesive, highly suspending, highly fluid, hard and brittle Materials that do not want to be broken.







(1) Before starting the vehicle, check whether all parts of the equipment are loose and whether the voltage is normal; whether the lubrication system and cooling system are in good condition: there should be warning signals or measures.

(2) After starting, check the equipment for abnormal noise, vibration, etc.

(3) Observe the operation of the equipment in time during operation, whether the motor and reducer have abnormal noise; whether the scraper chain is floating, whether the scraper is skewed, etc.

(4) It is strictly forbidden to convey materials whose block size is larger than the requirement (above 300mm).

(5) It is strictly forbidden to maintain, adjust and clean up materials when the scraper is running.

(6) Do not open the inspection door on the tailstock when the equipment is running:

(7) When the scraper stops unexpectedly, the cause of the stop should be found out before restarting, and it can be started only after troubleshooting.





Pre-Sale Service:

• Guide customers to choose the appropriate equipment model.
• Send engineering and technical personnel to the production site in time to plan the site for customers, design reasonable processes and solutions.
• We can design and manufacture products according to the special needs of customers to meet the different needs of investors



On Sale Service:

• Strict inspection of products before leaving the factory
• Ships according to contract



After-sale Service:

• The main warranty period of the equipment sold by our company is one year (except for the failure or damage caused by human factors, fuel factors or irresistible natural phenomena, and vulnerable parts are not covered by the warranty: fuel injectors, pump heads, photosensitive eyes, etc.).
• If the equipment failure is caused by human factors, the cost will be charged according to the factory price.
• After receiving the warranty notice, reply within 2 hours. 24 hours technical guidance to solve problems.
