Chain Scraper



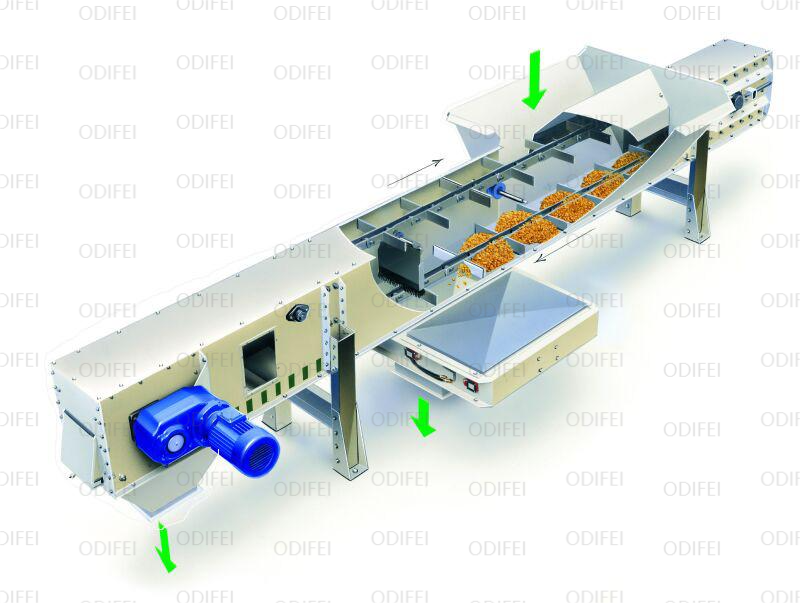

Buried Chain scraper is a kind of transportation equipment that continuously transports bulk materials by means of moving scraper chains in a closed rectangular section shell. Because the scraper chain is buried in the conveyed material during the conveying process, it is called buried Chain scraper. When the buried Chain scraper is conveying horizontally, the material is subjected to the pressure of the scraper chain in the moving direction and the weight of the material itself, which generates internal friction between the materials. This frictional force ensures the stable state between the material layers, and is enough to overcome the external frictional force generated by the material moving in the machine groove, so that the material forms a continuous and integral material flow and is transported.







1. The scraper is dragged by a single high-strength mining ring chain, and driven by a concave sprocket, which has the characteristics of large load capacity, long chain life and high strength.

2. The chain can be automatically tensioned, which can ensure that the chain is always in a moderately tensioned state for a long time, eliminating the need for manual and frequent tension operations.

3. The return section of the chain and scraper is supported by the supporting rollers, which not only saves effort and reduces wear, but also helps the chain to automatically tighten and slide through the automatic change of deflection between several supporting rollers of the chain.

4. If the driving mechanism is carried on the upper part of the machine head and integrated with the casing, the overall installation can be freely placed and operated on the spot without the use of anchor bolts.

5. The running speed can be controlled by a combination of YVP series motor and inverter, which is the most advanced speed regulation method.

6. The feeding method adopts the large size on both sides to enter through the shunt, so that the return chain and scraper are isolated from the feeding material, and conveyed forward with the same large-sized material layer thickness. The phenomenon that the chain and scraper bring back materials is not happen again.









Model	Slot width(mm)	Ideal granularity(mm)	10% maximum granularity(mm)	Basic conveying capacity(m³/h)						Materials Humidity(theory)
				chain speed
				10	13.5	15	16	20	25	≤5% To the extent that the hands can be squeezed into a ball and scattered after the sale, it can still be loose.
FU150	150	<4	<8	6-7		9		12	15
FU200	200	<5	<10	12		18		22	27
FU270	270	<7	<15	16	20	25	30	35	45
FU350	350	<9	<18		40	55	70	90	130
FU410	410	<11	<21		50	80		120	175
FU500	500	<13	<25		100	140		160	240
FU600	600	<<15	<<30		150	190		230	310
FU700	700	<<18	<<32		200	250		310	400



Note:

1. The chain can be customized: ring chain, plate chain, die forging chain, etc.

2. Types are: single-chain scraper, double-chain scraper, multi-chain scraper, etc.

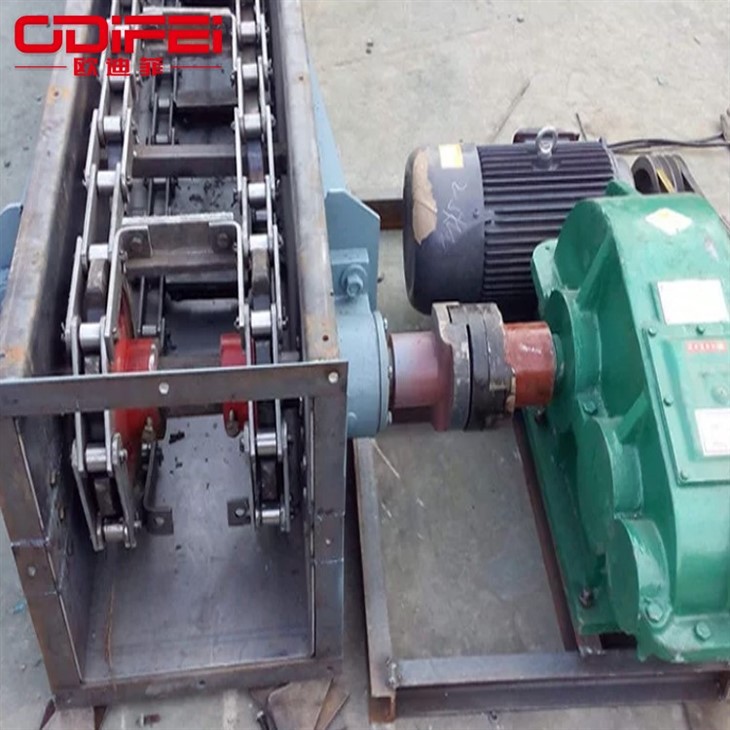

(1) Transmission system

The transmission system consists of a motor, a reducer and a coupling, which is the power part of the Chain scraper. The layout of the transmission system has two basic forms, vertical type and horizontal type, and can also be adjusted according to the site location. In order to facilitate installation, a chassis for installing the motor and reducer is designed under the transmission device.

(2) nose frame

The main function of the nose frame is to support the head wheel assembly.

(3) Head wheel assembly

The head wheel assembly is composed of a transmission shaft, a sprocket and a bearing part. The sprocket is connected to the drive shaft by a key, and the power output by the reducer is transmitted to the scraper chain through the drive shaft and the sprocket, so that the scraper chain can perform infinitely closed circular motion.

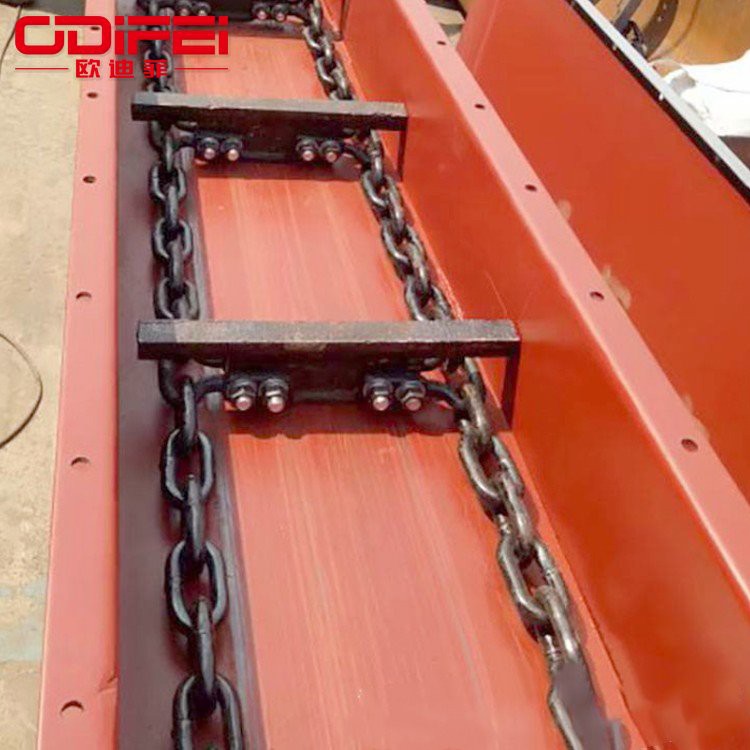

(4) Scraper chain

The scraper chain is composed of chain, connecting ring and scraper. The scraper is connected and fixed on the chain through the connecting ring, and the material is transported by the pushing or pulling of the scraper.

(5) Middle slot

The middle groove is the main body of the Chain scraper, and has the function of supporting the material and guiding the scraper chain.

(6) Tailstock

The tailstock mainly supports the tail wheel assembly and the tensioning device.

(7) Tail wheel assembly

The tail wheel assembly is composed of shaft, sprocket and bearing.

(8) Tensioning device

The main function of the tensioning device is to pull the bearing seat of the tail sprocket through the screw rod, so that the tail sprocket moves backward to tension the scraper chain.









Coal powder, crushed coal, soot, carbon black, ammonium bicarbonate, pyrite powder, ammonium chloride, copper concentrate powder, alumina powder, gypsum powder, limestone powder, soda powder, urea, activated carbon, sodium oxide, silicon Calcium acid, asbestos powder, synthetic resin, rubber powder, calcium carbide, pottery ten, synthetic fertilizer, powdered pesticide, calcium sulfate, thiamine, soda ash, powdered medicine, wheat, soybean, rice, sugar, starch, crushed charcoal, wood chips , sawdust, polyvinyl alcohol synthetic detergent, fly ash phosphate fertilizer, etc.





High temperature, toxic, flammable and explosive, highly abrasive, highly corrosive, highly adhesive, highly suspending, highly fluid, hard and brittle Materials that do not want to be broken.







(1) Before starting the vehicle, check whether all parts of the equipment are loose and whether the voltage is normal; whether the lubrication system and cooling system are in good condition: there should be warning signals or measures.

(2) After starting, check the equipment for abnormal noise, vibration, etc.

(3) Observe the operation of the equipment in time during operation, whether the motor and reducer have abnormal noise; whether the scraper chain is floating, whether the scraper is skewed, etc.

(4) It is strictly forbidden to convey materials whose block size is larger than the requirement (above 300mm).

(5) It is strictly forbidden to maintain, adjust and clean up materials when the scraper is running.

(6) Do not open the inspection door on the tailstock when the equipment is running:

(7) When the scraper stops unexpectedly, the cause of the stop should be found out before restarting, and it can be started only after troubleshooting.





Pre-Sale Service:

• Guide customers to choose the appropriate equipment model.
• Send engineering and technical personnel to the production site in time to plan the site for customers, design reasonable processes and solutions.
• We can design and manufacture products according to the special needs of customers to meet the different needs of investors



On Sale Service:

• Strict inspection of products before leaving the factory
• Ships according to contract



After-sale Service:

• The main warranty period of the equipment sold by our company is one year (except for the failure or damage caused by human factors, fuel factors or irresistible natural phenomena, and vulnerable parts are not covered by the warranty: fuel injectors, pump heads, photosensitive eyes, etc.).
• If the equipment failure is caused by human factors, the cost will be charged according to the factory price.
• After receiving the warranty notice, reply within 2 hours. 24 hours technical guidance to solve problems.







Zhengzhou Odifei Machinery Equipment Co., Ltd. has been focusing on conveying equipment for 17 years. Its main business is: spiral vibration vertical elevator, slat feeder, chain plate conveyor, slat conveyor, scraper conveyor, large angle belt conveyor, screw conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, TH ring chain bucket elevator, NE bucket elevator,Chain scraper,TD75 belt conveyor (or belt conveyor), mobile conveyor, belt conveyor with large inclination angle ribs; screw conveyor, shaftless screw conveyor; light, medium and heavy chain plate conveyor; chain bucket conveyor machine, SCD trough clinker conveyor; horizontal double shaft mixer; light, medium and heavy plate feeder; GZG motor vibration feeder; trommel screen, shaftless trommel screen;

In 2010, our company's R&D team entered the resource recycling industry, and successively developed domestic waste treatment scaly conveyors, domestic waste screening and sorting shaftless trommel screens, construction waste slat feeders, and electric arc furnace scaly scrap conveyors, which not only create It also creates objective social and environmental benefits, and is an indispensable part of the resource recycling industry chain.

Zhengzhou Odifei Machinery Equipment Co., Ltd. has continuously carried out technological innovation in the spirit of excellence, and has developed several practical new products. The product is advanced in design, fine in production, reliable in performance, has international advanced level, sells well at home and abroad, and aims to be the industry leader!







Q: Bucket elevators are composed of some components

A: Hopper: fixed on the tape (or traction chain), there are three kinds

Deep bucket - suitable for loose materials;

Shallow bucket - materials with high viscosity;

Triangle bucket - heavy and lumpy materials

Shell: Built-in transmission and stopper.

Body: The thin steel plate is welded into a square shell, and the installation is deviated.

Bottom: Install tensioning device.



Q: There are several types of bucket elevators

A: 1. According to the layout form: it can be divided into vertical type and inclined type

2. According to different discharge methods: it can be divided into centrifugal, gravity and hybrid.

3. According to different charging methods: it can be divided into excavation type and injection type.

4. According to the structure of the hopper: it can be divided into shallow bucket, deep bucket and triangular bucket.

5. According to different traction components: it can be divided into tape and steel chain.



Q: What is the working principle of bucket elevator

A: The conveying working principle of the bucket elevator is as follows: the hopper scoops up the material from the storage below, lifts it to the top with the conveyor belt or chain, turns down after bypassing the top wheel, and the bucket elevator dumps the material into the accepted in the slot. The drive belt of the belt-driven bucket elevator generally adopts a rubber belt, which is installed on the lower or upper driving drum and the upper and lower redirecting drums. The chain-driven bucket elevator is generally equipped with two parallel transmission chains, with a pair of transmission sprockets on the top or bottom, and a pair of redirecting sprockets on the bottom or top. Bucket elevators are generally equipped with casings to prevent dust from flying in the bucket elevators.



Q: What are the advantages and disadvantages of bucket elevators?

A: Advantages:

1. The structure is simple, the lateral size is small, and the floor space is small.

2. The lifting height is large, the conveying capacity is good, the body is fully enclosed, and the environmental pollution is small.

3. Low power consumption.

Shortcoming:

1. It is easy to block when overloaded, and the hopper is easy to wear.

2. It is only suitable for conveying powder, granular and small and medium-sized bulk cargo, such as grain, coal, sand, etc.

3. The goods cannot be transported in the horizontal direction.



Q: Are you a factory or a trading company? When building aChain scraper, What other materials are bucket elevators suitable for?

A: We are a factory, established in 2007, specializing in the manufacture of vertical vibration hoists, vertical vibration elevator, bucket elevators, belt conveyors, scale conveyors, screw conveyors, etc. Bucket elevator can be used in chemical industry, ceramic industry, food industry, metallurgical industry, etc..



Q: How about spare parts?

A: We always provide spare parts at cost price and give you a list of spare parts when you buy the machine.



Q: Will you test theChain scraper before delivery?

A: Yes, we will test each machine and production line before delivery, and send the working video to you. You can also check with us before delivery.











1. Material bulk density: r=0.2～1.8t/m3

2. Temperature: material temperature t＜100℃

3. Moisture content: For general materials, the materials should not be kneaded into a ball and not easy to loosen; for materials that increase the adhesiveness and compressibility after the moisture content increases, the materials should not be seriously adhered to the scraper.

4. Particle size: The particle size of the material is related to its hardness. If the particle size is too large, it is difficult to transport.





Due to the different use conditions, use space, and coal seam thickness, the requirements for conveying capacity and laying length are also different. Therefore, there are many types of Chain scrapers produced and used at home and abroad.







1. Please provide material name, specific gravity, particle size, etc

2. Are there other characteristics: such as viscosity, temperature, corrosivity, etc?

3. Conveying length, horizontal conveying or inclined conveying?

4. Conveying capacity / hour
