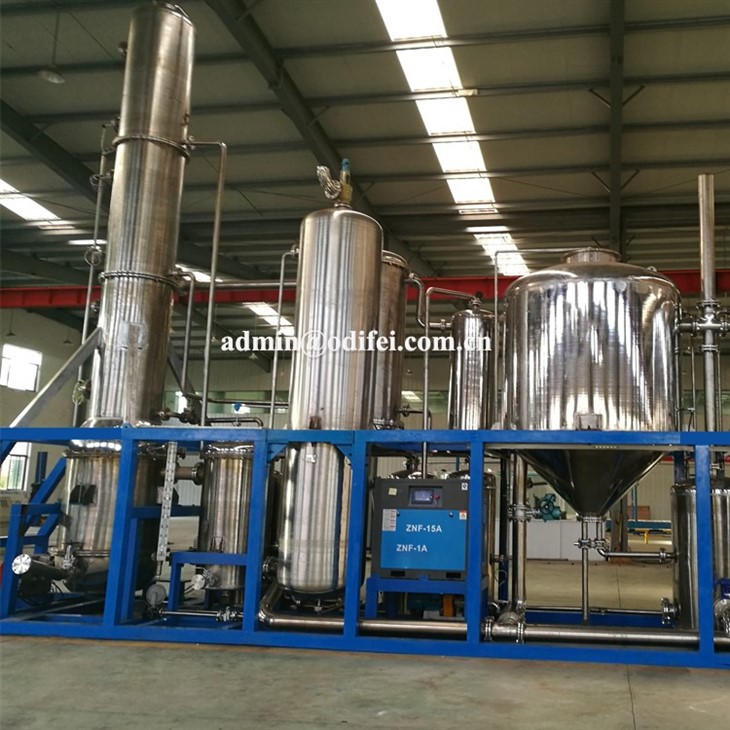

Waste Oil Distillation Plant



The waste oil is added to the distillation furnace, heated to the working temperature, and the oil and gas are distilled out. The oil and gas enter the condenser through the catalytic tower, the liquefied part is condensed into gasoline or diesel, and the non-liquefied part is sent to the heating system for combustion through the exhaust gas recovery system. The gasoline or diesel enters the sedimentation tank for filtration to produce refined oil.

The diesel oil is then precipitated, and the color of the precipitated refined oil is more translucent. It can be directly used in agricultural machinery, construction machinery or construction machinery.





Safety

1. The reaction kettle adopts automatic welding machine, and adopts two-sided welding, which ensures the quality of the weld and avoids air leakage.

2. Professional heat treatment and X-ray inspection room, quality inspection of each unit before heating.

3. Multi-layer safety device: safety water seal, negative pressure system, safety valve, alarm, etc.

4. Box-type cooling, after a sudden power failure, it can continue to run without stopping.



Environmental friendly:

1. The multi-stage dust removal system can meet the emission standard.

2. The non-condensable gas is used for heating the reactor without gas pollution

3. The joints of the reactor are well sealed, and professional sealing materials are used.



Long service life:

1. Material: Q345R boiler steel plate, thickness 18mm-20mm.

2. Welding: Automatic welding machine with heat treatment and x-ray inspection to maximize the life of the reactor.



High oil yield:

1. The three-stage cooling process ensures that the oil and gas are fully liquefied.

2. When the oil and gas passes through the condenser, it is divided into several parts by the small tube in the condenser and cooled separately.



Energy saving:

1. The burner adopts both oil and gas, which can be effectively converted.

2. Non-condensable gas recovery is used for heating fuel in the furnace of the distillation kettle, saving operating costs.





Item	Contents
Input-Raw Materials	Waste engine/sludge oil /Plastic pyrolysis oil/Tire pyrolysis oil/Lubrication oil
Average out-put oil rate	85%-90%
End products	Diesel oil, waste gas, slag
Structure form	Horizontal
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil
Model(Diameter*Length)(mm)	Reactor size	Capacity
	D1500*L3000	3 Ton/Day
	D2000*L5000	5 Ton/Day
	D2800*L6000	10 Ton/Day
Material of reactor	Q245R&Q345R boiler plate
Thickness of reactor	16mm, 18mm
Mode of cooling	Circulating water cooling
Space needed	Length: 30m, Width :10 m at most
Power consumption	Average 15 KW/h



1. Preheating tank: remove the water in the feed oil.

2. Distillation furnace: refine the preheated waste oil.

3. Heating system: make the oil temperature reach the set value by burning coal or fuel oil.

4. Catalytic system: liquid catalysis and gaseous catalysis are combined to obtain gasoline and diesel composition.

5. Cooling system: cool the oil and gas to make it liquid.

6. Temperature control system: accurate temperature control to improve the quality of refined oil.

7. Waste gas treatment system: the gas after combustion can meet the emission standard.
