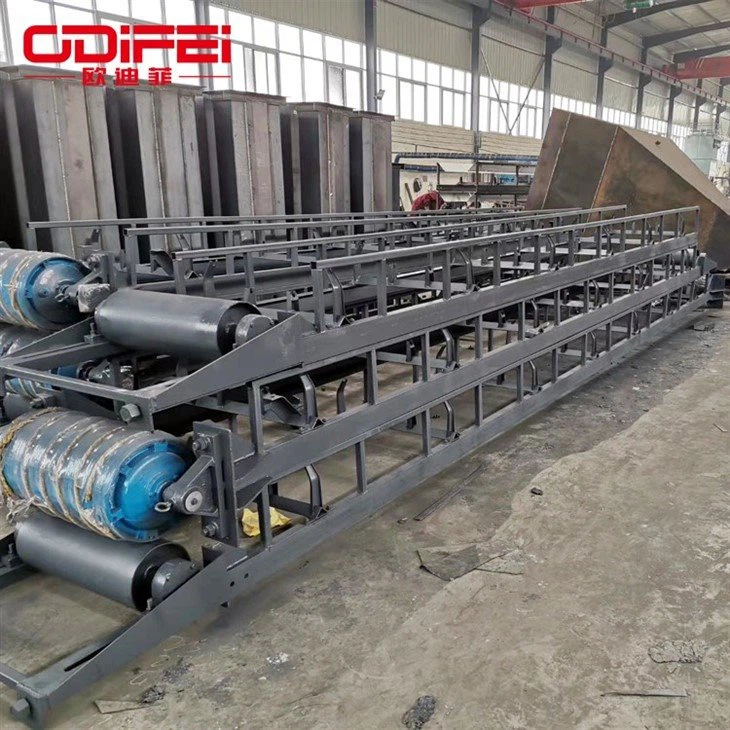

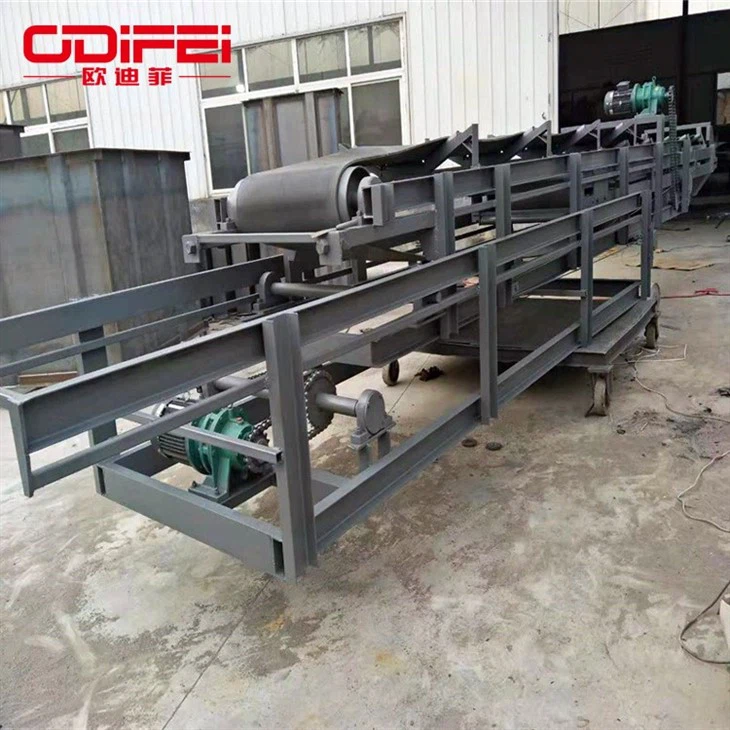

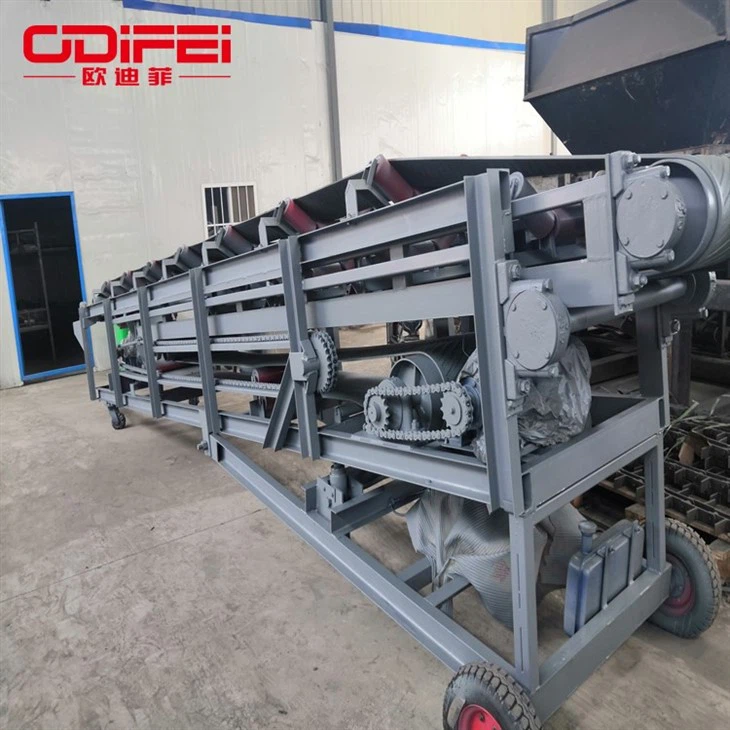

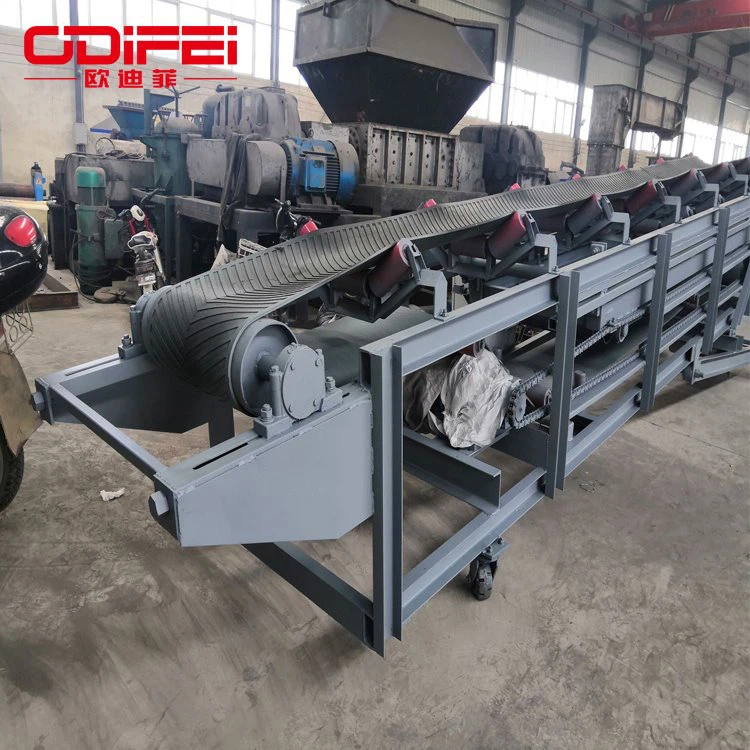

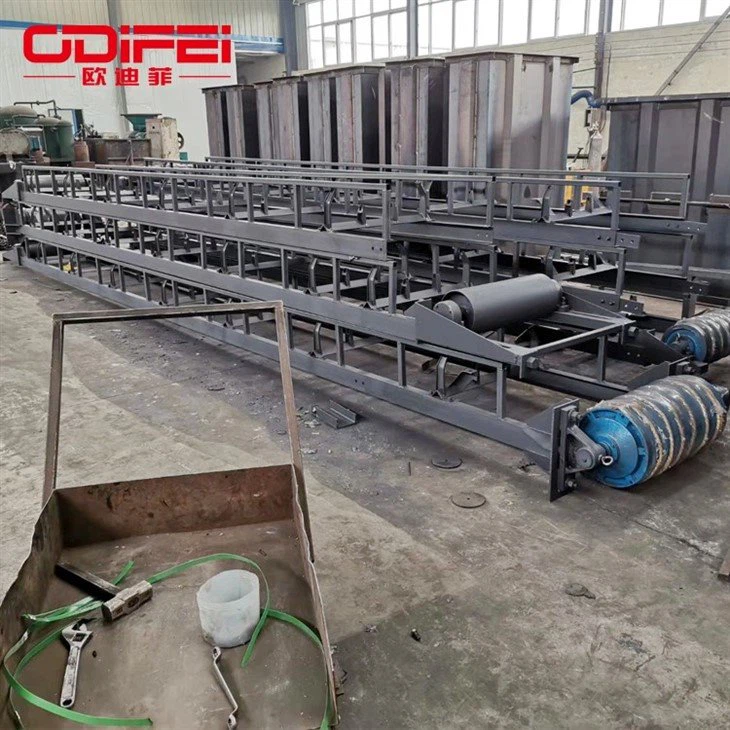

Telescopic Belt Conveyor



The telescopic belt conveyor has telescopic performance, and the conveying distance can be adjusted freely within a certain range. The machine completes the distance-adjusted conveying operation through the same conveyor belt. The change of the conveying distance is realized by the relative movement of the fixed frame and the telescopic frame. When the telescopic frame is extended or retracted, the transmission length of the conveyor is It can be changed accordingly. The machine has a compact structure, flexible control, flexible and continuous adjustability, and the conveyor belt surface is smooth and barrier-free, and the forward and reverse operation can be changed at any time.





1. Strong conveying capacity, long conveying distance and free expansion and contraction in the length direction, control the length of the conveyor at any time.

2. Simple structure and easy maintenance

3. Low cost and strong versatility

4. The conveying direction can be run in one or two directions.





Width (mm)	Length (m)  power (kw)			Speed (m/s)	Delivery volume(t/h)
500	≦12(m) 3(kw)	12-20(m)  4-5.5(kw)	2O-3O(m) 5.5-7.5(k w)	1.3-1.6	78-191
650	≦12(m) 4(kw)	12-20(m)  5.5(kw)	20-30(m) 7.5-11(k w)	1.3-1.6	131-323
800	≦6(m) 4(kw)	6-15(m)  5.5(kw)	15-30(m) 7.5-11(k w)	1.3-1.6	278-546
1000	≦10(m) 5(kw)	10-20(m)  7.5-11(k w)	20-40(m) 11-22(kw)	1-3-2.0	435-853
1200	≦10(m)7.5(kw)	10-20(m)  11(kw)	20-40(m) 15-30(kw)	1.3-2.0	655-1284







1. Tailstock(with tensioner) 2. Tailstock 3. Sidewall conveyor belt 4. Guide chute 5. Concave Arc Segment Bracket 6. pinch roller 7. steering wheel 8. Intermediate rack 9. Intermediate rack bracket 10. Convex segment bracket 11. Convex segment steering wheel 12. head frame 13. beater 14. hood 15. drive roller(With power) 16. hopper









Coal powder, crushed coal, soot, carbon black, ammonium bicarbonate, pyrite powder, ammonium chloride, copper concentrate powder, alumina powder, gypsum powder, limestone powder, soda powder, urea, activated carbon, sodium oxide, silicon Calcium acid, asbestos powder, synthetic resin, rubber powder, calcium carbide, pottery ten, synthetic fertilizer, powdered pesticide, calcium sulfate, thiamine, soda ash, powdered medicine, wheat, soybean, rice, sugar, starch, crushed charcoal, wood chips , sawdust, polyvinyl alcohol synthetic detergent, fly ash phosphate fertilizer, etc.





High temperature, toxic, flammable and explosive, highly abrasive, highly corrosive, highly adhesive, highly suspending, highly fluid, hard and brittle Materials that do not want to be broken.







1. The factors causing the deviation must be eliminated in time.

2. Adhere to the maintenance system to avoid man-machine accidents.

3. No-load start or stop, strictly abide by the operating procedures and sequences.

4. Keep records of equipment use and maintenance, and do a good job of handover work.





1. Check whether there is any abnormality in the joint part of the tape, such as cuts, cracks, etc., and damage caused by other reasons.

2. Whether the upper and lower layers of the tape are worn, and whether the sidewall is worn.

3. Check whether the rubber scraper of the cleaning device is severely worn and cannot be in close contact with the tape. If so, adjust or replace the rubber scraper.

4. Keep each idler rotating flexibly, and replace the non-rotating or damaged idler.

5. Refuel all kinds of bearings regularly.

6. Repair or replace other worn parts or components.

7. Repair or replace the tape.





Pre-Sale Service:

• Guide customers to choose the appropriate equipment model.
• Send engineering and technical personnel to the production site in time to plan the site for customers, design reasonable processes and solutions.
• We can design and manufacture products according to the special needs of customers to meet the different needs of investors



On Sale Service:

• Strict inspection of products before leaving the factory
• Ships according to contract



After-sale Service:

• The main warranty period of the equipment sold by our company is one year (except for the failure or damage caused by human factors, fuel factors or irresistible natural phenomena, and vulnerable parts are not covered by the warranty: fuel injectors, pump heads, photosensitive eyes, etc.).
• If the equipment failure is caused by human factors, the cost will be charged according to the factory price.
• After receiving the warranty notice, reply within 2 hours. 24 hours technical guidance to solve problems.







Zhengzhou Odifei Machinery Equipment Co., Ltd. has been focusing on conveying equipment for 17 years. Its main business is: spiral vibration vertical elevator, slat feeder, chain plate conveyor, slat conveyor, Telescopic belt conveyor, large angle Telescopic belt conveyor, screw conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, TH ring chain bucket elevator, NE bucket elevator, NSE bucket elevator and other full range of bucket elevators. TD75 Telescopic belt conveyor (or Telescopic belt conveyor), mobile conveyor, Telescopic belt conveyor with large inclination angle ribs; screw conveyor, shaftless screw conveyor; light, medium and heavy chain plate conveyor; chain bucket conveyor machine, SCD trough clinker conveyor; horizontal double shaft mixer; light, medium and heavy plate feeder; GZG motor vibration feeder; trommel screen, shaftless trommel screen;

In 2010, our company's R&D team entered the resource recycling industry, and successively developed domestic waste treatment scaly conveyors, domestic waste screening and sorting shaftless trommel screens, construction waste slat feeders, and electric arc furnace scaly scrap conveyors, which not only create It also creates objective social and environmental benefits, and is an indispensable part of the resource recycling industry chain.

Zhengzhou Odifei Machinery Equipment Co., Ltd. has continuously carried out technological innovation in the spirit of excellence, and has developed several practical new products. The product is advanced in design, fine in production, reliable in performance, has international advanced level, sells well at home and abroad, and aims to be the industry leader!





Q: Are you a factory or a trading company? When we build a Telescopic belt conveyor, can we use it to convey other materials?

A: We are a factory, established in 2007, specializing in the manufacture of spiral vibration vertical elevator, slat feeder, chain plate conveyor, slat conveyor, Belt conveyor, large angle belt conveyor, screw conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, and so on.

This belt conveyor can transport a variety of materials, such as powder, particle and block.



Q: How about spare parts?

A: We always provide spare parts at cost price and give you a list of spare parts when you buy the machine.



Q: Will you test the Telescopic belt conveyor before delivery?

A: Yes, we will test each machine and production line before delivery, and send the working video to you. You can also check with us before delivery.



Q: How long is the warranty?

A: one year. After one year, paid services are provided for life.



Q: What are the payment methods?

A: T/T, L/C are all available. Both USD and RMB are acceptable.



Q: Can the Telescopic belt conveyor be customized?

A: Yes, we are a manufacturer and accept customization.











1. Please provide material name, specific gravity, particle size, etc

2. Are there other characteristics: such as viscosity, temperature, corrosivity, etc?

3. Conveying length, horizontal conveying or inclined conveying?

4. Conveying capacity / hour



If you are interesting in Telescopic belt conveyor, please feel free contact us in 24 hours!
