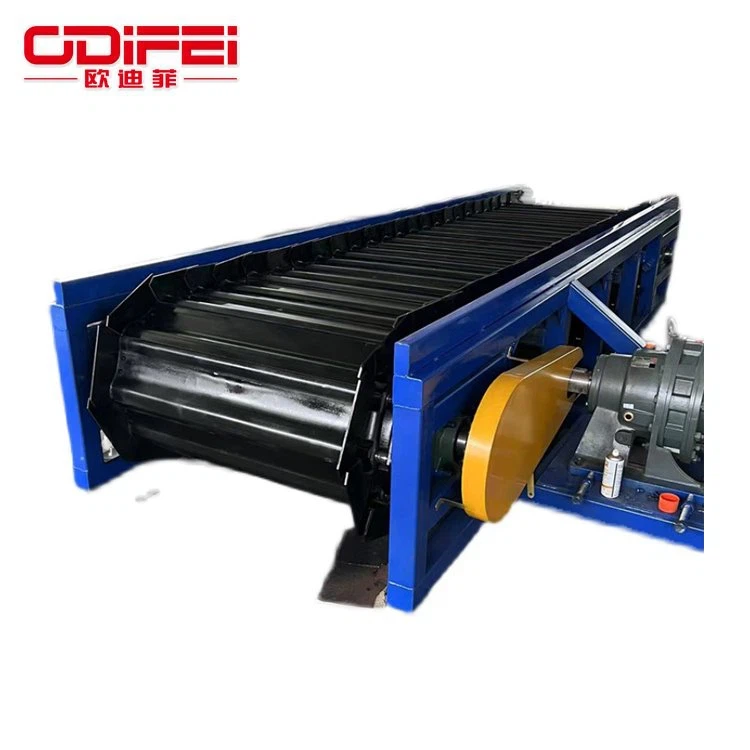

Plate Feeder

A plate feeder is used to convey and control the flow of bulk materials (such as ores, coal, or grains) from one location to another in a controlled and continuous manner.

Send Inquiry

PRODUCT INTRODUCTION

Plate feeder is a kind of continuous feeding machine suitable for short distance transmission of the bulk material, It is especially used in mining, material handling, and bulk processing industry.

The Structure

plate feeder structure

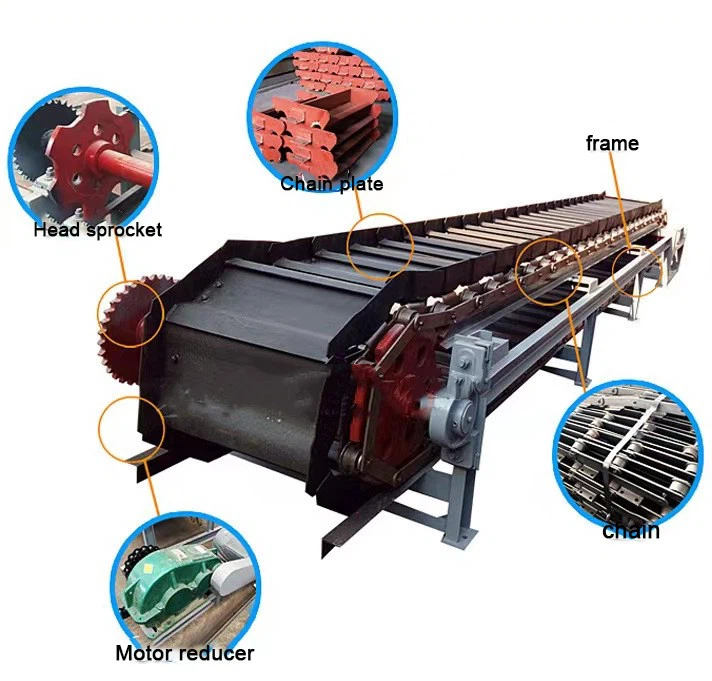

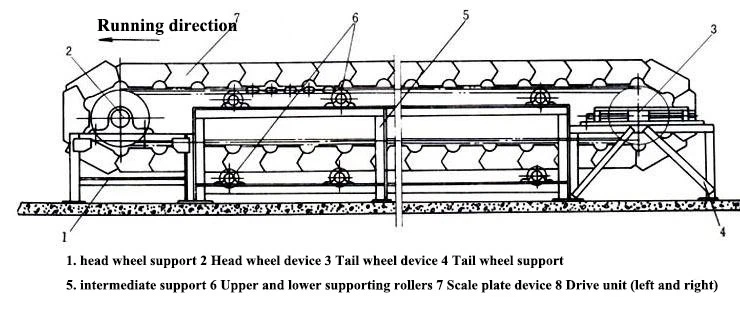

The plate feeder is composed of head wheel device, scale plate chain device, tail wheel tensioning device, guide material protection device, frame and driving device.

1. Driving device: these apron conveyors don't move very fast-usually under 0.5 meters per second. Because of that, the drive system is pretty straightforward: just a motor paired with a reducer. It connects directly to the head wheel shaft using something called a cross-slider coupling. That keeps things simple-no complicated parts.

2. Tail wheel tensioning device: this device uses a simple screw-style tensioning setup. Basically, you've got a tail wheel shaft, two sprockets at the end, a pair of tensioning screws, and some other bits and pieces.

3. Scale plate chain device: The chain it uses is made up of piece chains and stamped chains that have rollers attached at the ends. These rollers are mounted on the outside of the outer chain plate, and their job is pretty simple-they just support the weight of the material on the plate. The joint sleeves-the parts that connect the chain links-are made from alloy steel. plate hopper is pressed into shape from thick steel plate using a mold, so each one comes out accurate and consistent.

4. Rack: We build these racks using a standardized process. it makes the manufacturing super consistent, eliminates errors that people can make.

Features

The structure of the apron conveyor is simple and the applicability is strong
Large conveying capacity and low running resistance
Easy installation and maintenance, long service life
Not only can be conveyed horizontally, but also can be conveyed obliquely
Multi-point feeding is possible, and the equipment and process layout is flexible.

plate feeder structure

Technical Parameters

Conveyor type	Width mm	Conveying speed m/s	side panel height mm	Conveyor chain pitch mm	Delivery volume m³/h
Lightweight slat conveyor	400	0.05--1.60	160-250	200	450
	500		160-315		700
	630		200-400		1150
	800		250-500	250	1850
Medium-sized slat conveyor	800	0.05-1.0	160-400	250	900
	1000		200-500	250	1400
	1200		250-500	315	1750

Main Application

Mining industry: It is used to feed raw material into crushers, mills, or other processing equipment.One machine covers full range of materials (cement, iron ore, sand, coal, limestone, fertilizers and so on.)
Coal Handling industry: This machine transport coal to be processed or fed into furnaces.
Wagon unloading:It can receive the material from dump trucks,such as iron ore,limestone etc.
