Cleaning Chain Conveyor

Cleaning Chain Conveyor

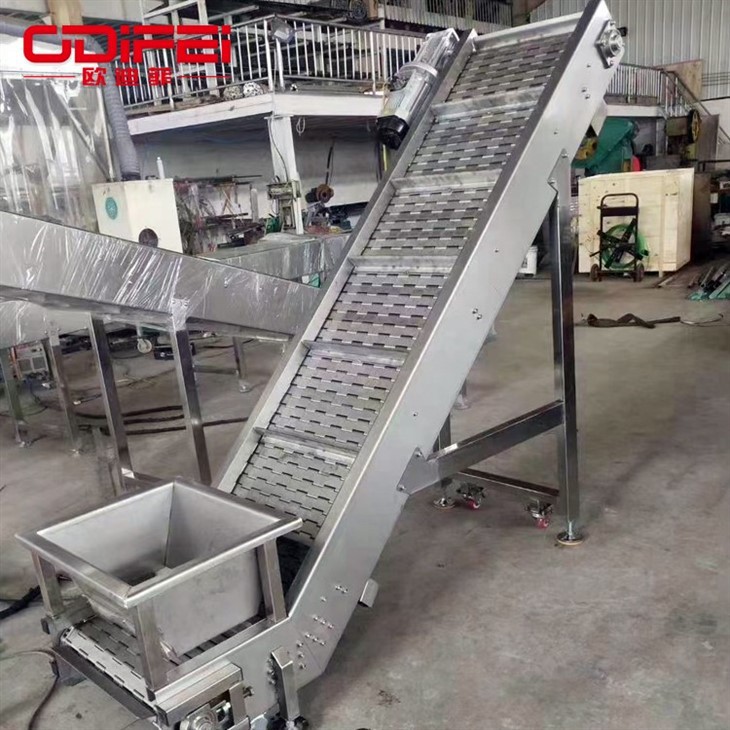

The Cleaning Chain Conveyor is also called the chain plate type feeder: the chain plate has high compressive strength and impact resistance, and can withstand large and heavy objects such as stones and electric vehicles. The high temperature resistance reaches 1300 degrees, and it can also withstand the low temperature of minus tens of degrees. Working in these harsh conditions will not affect the transportation status of the chain plate machine. The traction chain has high strength and is suitable for long-distance material transportation up to more than 100 meters. The chain plate machine within 5 meters is usually operated by a single person. The chain plate machine with too long a conveying distance should be made by multiple machines separately and transported to the user. Assemble on site.



1. Wide range of application: Except for materials with high viscosity, general solid bulk materials and finished items can be transported.

2. Large conveying capacity: especially, the conveying capacity of the scale plate conveyor can be as high as 1000T/H.

3. The traction member has high strength and can be transported over a long distance. The conveying length of domestic conveyors reaches 200M; the largest foreign conveyors reach more than 1000M.

4. Flexible layout of conveyor lines: Compared with belt conveyors, slat conveyors can convey materials at a larger inclination angle and smaller bending radius, so they have greater flexibility. The inclination angle can reach 30- 50 degrees, and the bending radius is 5-8M.

5. During the conveying process, various technological operations such as classification, cleaning, drying, cooling, or assembly can be carried out at the same time.

6. The chains and accessories used are produced by professional factories, and the quality is guaranteed. Not only is the operation stable and reliable, but also a certain service life can be guaranteed.

Model	name	Chain pitch mm	Single chain ultimate strength KN	Chain allowable tension KN	Tabletop width mm	load-bearing capacityKGf/m	speedm/min	Operating temperature℃
BP40	Light-duty flat conveyor	38.1	31.1	8	200-300	50	1-12	0-150
BP50	Curved plate conveyor, single-track plate conveyor, double-track plate conveyor	50.8	55.6	15	300-400	100	1-12	0-150
BP100		100	56	15	400-500	120	1-12	0-150
BP150		150	136	30	600-800	200	1-12	0-150
BP200		200	230	40	800-1200	500	1-12	0-150
BP250		250	230	40	1000-1200	1200	1-12	0-150
BP300		300	230	40	1000-1500	1500	1-12	0-150
BP400		400	230	40	1200-1800	2000	1-12	0-150
DPB	Heavy-duty large flatbed conveyor				1500-3000	2000	1-20	0-150

Typical applications of the Cleaning Chain Conveyor include: cleaning glass bottles, PET bottles, and aluminum cans; cleaning fruits and vegetables to remove mud, sand, and pesticide residues; using commercial dishwashers to clean trays and tableware; cleaning engine parts and wheel hubs; cleaning turnover boxes and plastic pallets; and cleaning glass panels and door and window profiles.
