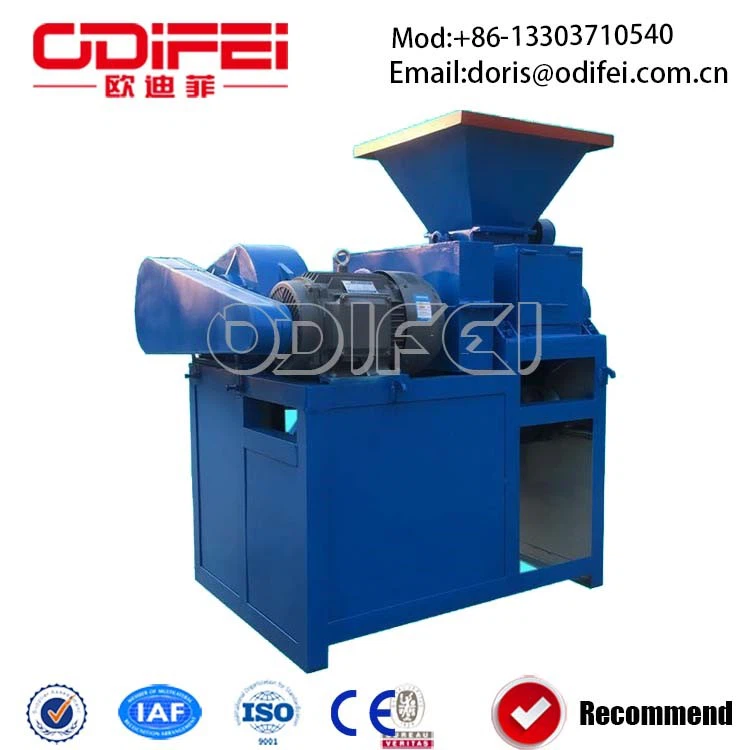

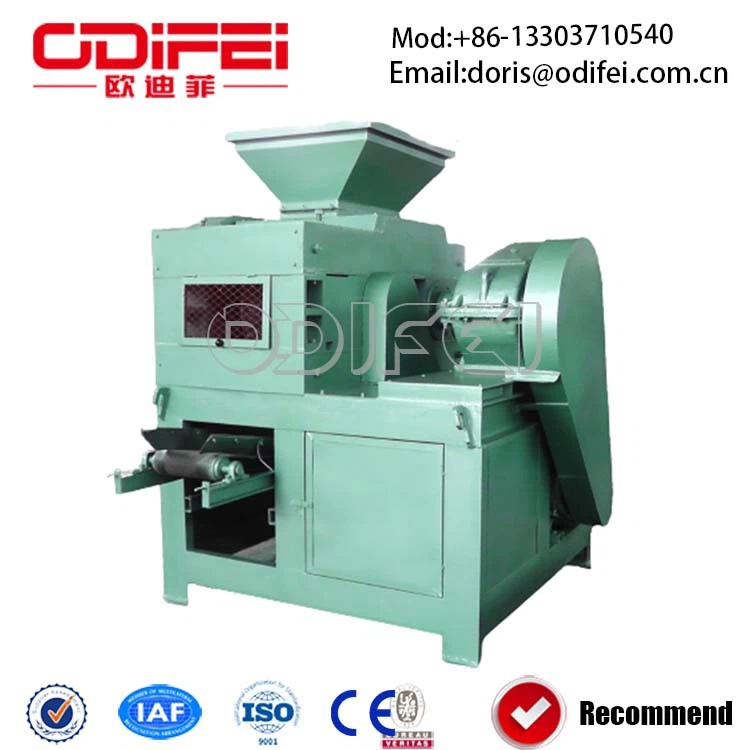

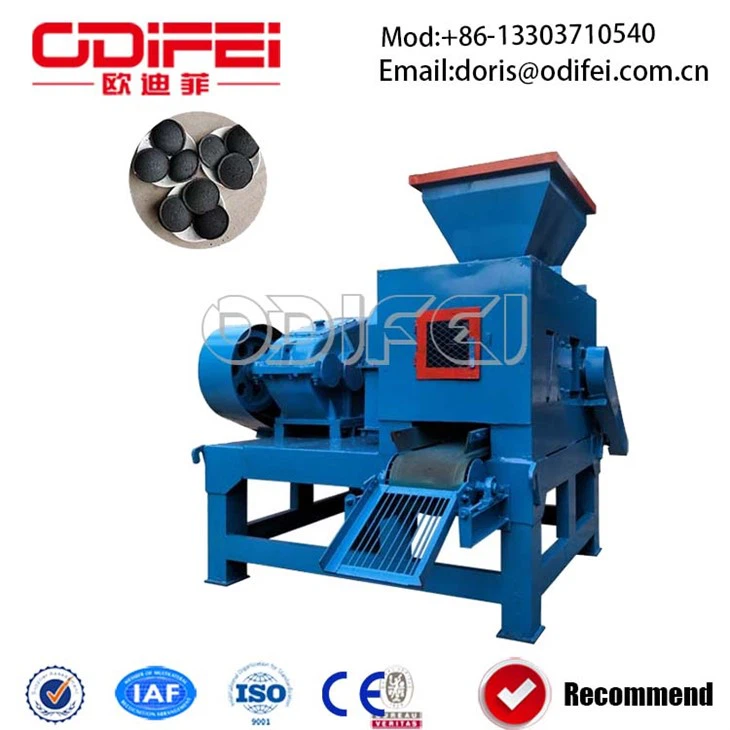

CHARCOAL BALL PRESS MACHINE
Introduction
A charcoal ball press machine is a mechanical device that compacts powdery materials, such as charcoal or coal powder, into different shapes, such as round, pillow, or oval, to produce briquettes. It is widely used in various industries, including metallurgy, power plants, heating, and catering. The machine typically consists of a feeding part, driving part, and forming part, with a hydraulic device to ensure high forming pressure and a stable quality of the finished product. The finished briquettes can be used for purposes such as barbecuing, heating, and industrial production. The machine's production capacity, material requirements, and application areas can vary based on specific models. The output of the machine can range from 1 to 50 tons per hour, depending on the model. The raw materials used in the machine include coal powder, iron powder, carbon powder, aluminum powder, and various waste materials. The fineness of the raw materials should be below 5mm, with a moisture content between 7-15%
working principle
The working principle of a charcoal ball press machine involves the use of pressure to compress charcoal powder or coal powder into different shapes. The machine consists of a feeding part, driving part, and forming part. The feeding part ensures even distribution of the material, the driving part operates the machine, and the forming part, which includes the rollers and hydraulic device, is responsible for the actual compression process. When too much material is fed or a hard object enters, the hydraulic system protects the machine from damage by adjusting the pressure rollers. The finished products are widely used in various industries such as metallurgy, power plants, and heating. The machine can also be used to process materials like coal powder, iron powder, and biomass into various shapes. The working steps are relatively simple, involving feeding the raw material, compressing it into shape, and discharging the finished product
The ball press machine developed by ODF company can briquette charcoal powder or coal powder after pre-processing. It can be used for pressing and shaping shisha charcoal, as well as processing wood, bamboo, and coconut shell into barbecue charcoal. The machine's finishend product can be used in industrial boilers or household combustion
The ball pressing machine is mainly used for pressing powdery materials that are difficult to form, using high forming pressure and an adjustable main engine revolution
The charcoal ball briquette making press machine consists of a main machine and motor in a single structure, making it easy to operate and quick to discharge
Technical Parameters
| Model | Gear Reducer | Roll size | Motor | Capacity | Dimension | Machine weight |
| 290 | ZQ350 | φ290*200 | 5.5 | 1-2 | 1.5*1.2*1.6 | 600 |
| 360-1 | ZQ350 | φ360*240 | 7.5 | 2-3 | 1.7*1.2*1.6 | 900 |
| 360 | ZQ400 | φ360*240 | 11 | 2-3 | 1.7*1.6*1.8 | 1800 |
| 450 | ZQ450 | φ450*280 | 22 | 4-5 | 1.8*1.9*2.2 | 3800 |
| 550 | ZQ650 | φ550*320 | 37 | 5-7 | 2.4*2.2*2.3 | 4800 |
| 650 | ZQ750 | φ650*388 | 45 | 8-10 | 2.6*2.2*2.7 | 6000 |
| 850 | ZQ1000 | φ850*500 | 75 | 15-20 | 2.6*2.4*3.2 | 9800 |
| 1000 | ZQ1200 | φ1000*500 | 110 | 25-30 | 2.9*2.8*3.5 | 22000 |
Application
It can be used to press hundreds of materials such as coal powder, iron powder, ore powder, aluminum powder, coke powder, etc. It is widely used in refractory, metallurgy, energy, heating and other industries. The materials formed by the briquetting machine are low-dust and environmentally friendly. , easy to transport, improves the utilization rate of waste materials, and has good economic and social benefits.
Finished product effect
Equipment advantages
1.Stable operation,high efficiency and energy saving
2.Simple operation,high pellet rate
3.Low noise,no pollution,widely used
4.Abrasive tools customization
Strictly required welding process, the machine as a whole is relatively strong and durable, and the welding is beautiful
