Product Description Of Diesel Oil Burner
The Diesel Oil Burner uses all flammable liquids as fuel for combustion, and adopts the second-stage fire control method. The maximum calorific value of the burner can reach 18 million kcal. Using the second-stage combustion control method, accurate air-fuel ratio, with protection functions such as power failure, low fuel pressure, and low air pressure. Equipped with special ion current and electronic eye detection module, ion current and electronic eye double flame detector, to achieve safe, efficient and reliable combustion.
It is widely used in cracking furnaces, waste tire pyrolysis plant, steam boilers, hot water boilers, thermal oil furnaces, coal-fired boilers, hot blast stoves, drying furnaces, kilns, ovens and other boilers that require heat sources.
Technical Parameter
Calorie output: 200,000 kcal - 18 million kcal
Output power: 0.4MW-21MW
Adjustment method: smooth second stage fire
Control method: PLC man-machine integrated analog control
Air volume and oil volume control: Servo motor controls the damper
Combustion Engine Composition System
1. Air supply system
The function of the air supply system is to send air with wind speed and volume into the combustion chamber. Its main components are: shell, fan motor, fan impeller, air gun fire pipe, damper controller, damper baffle, cam adjustment mechanism, diffusion plate.
2. Ignition system
The function of the ignition system is to ignite the mixture of air and fuel, and its main components are: ignition transformer, ignition electrode, and electric fire high-voltage cable.
3. Monitoring system
The function of the monitoring system is to ensure the stable operation of the burner, and its main components include a flame monitor, a pressure monitor, and a temperature monitor.
4. Fuel system
The function of the fuel system is to ensure that the burner burns the required fuel. Mainly include: oil pipes and joints, oil pumps, solenoid valves, nozzles, heavy oil preheaters.
5. Electronic control system
The electronic control system is the command center and contact center of the above systems. The main control element is the program controller. Different burners are equipped with different program controllers. The common program controllers are: LFL series, LAL series, LOA series, LGB series, the main difference is that the time of each program step is different.
Application of the Diesel Oil Burner

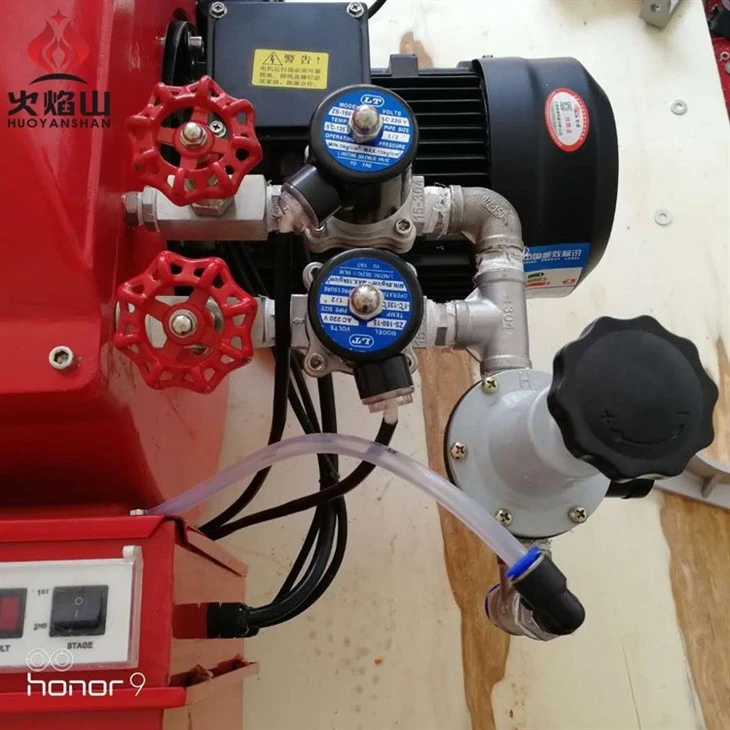

picture of the Diesel Oil Burner
