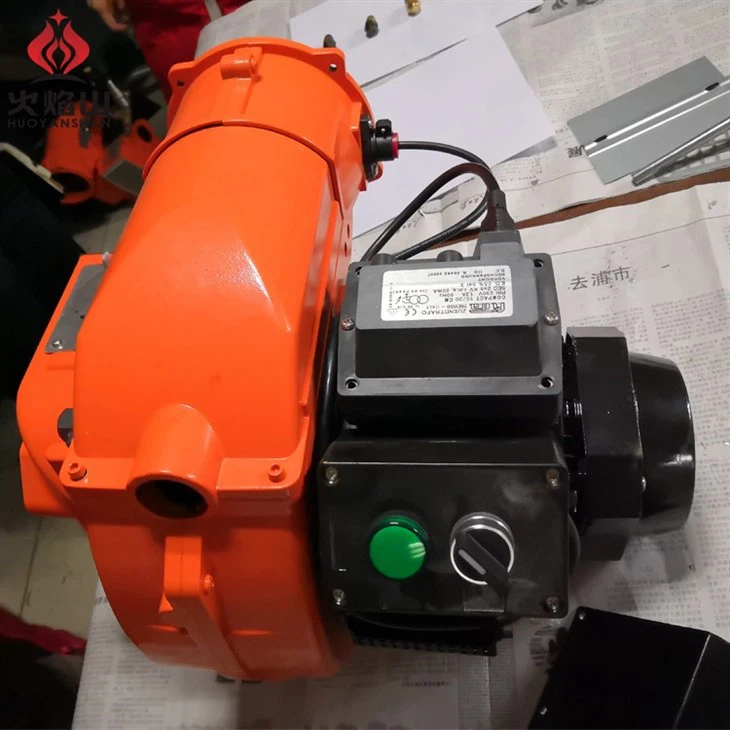

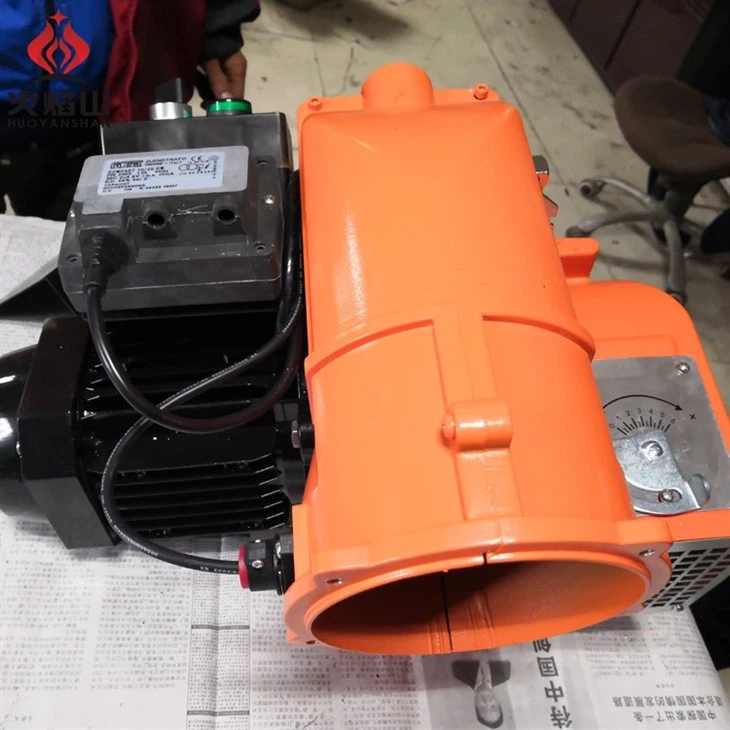

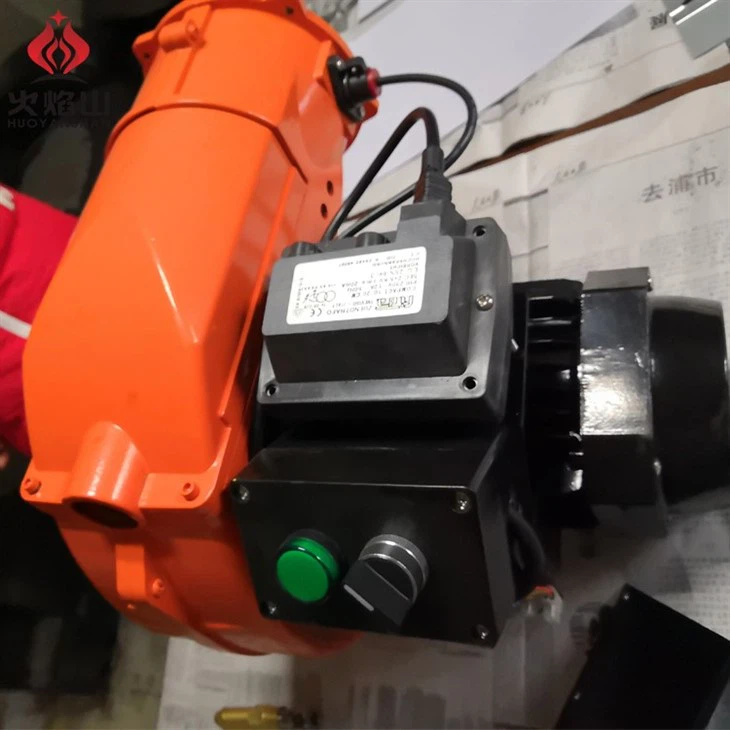

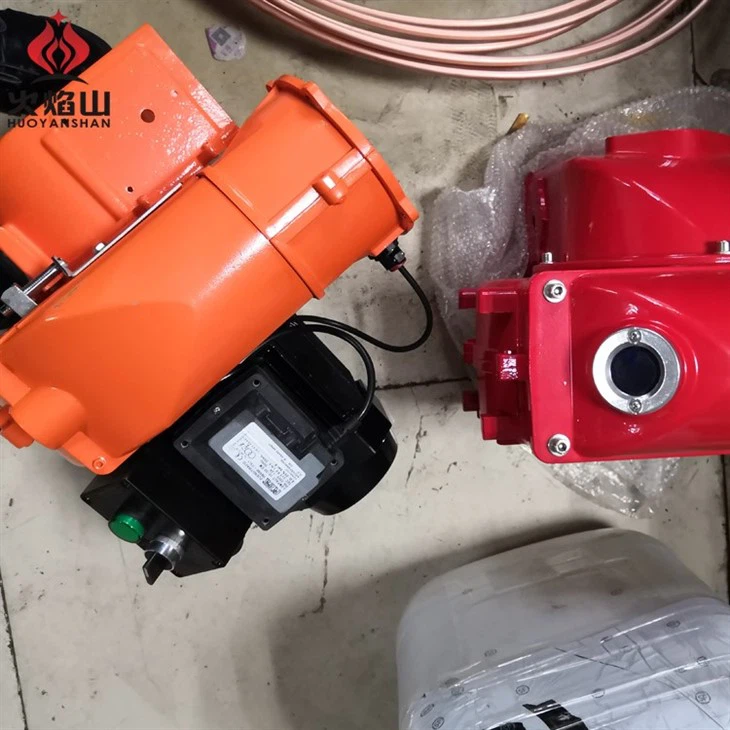

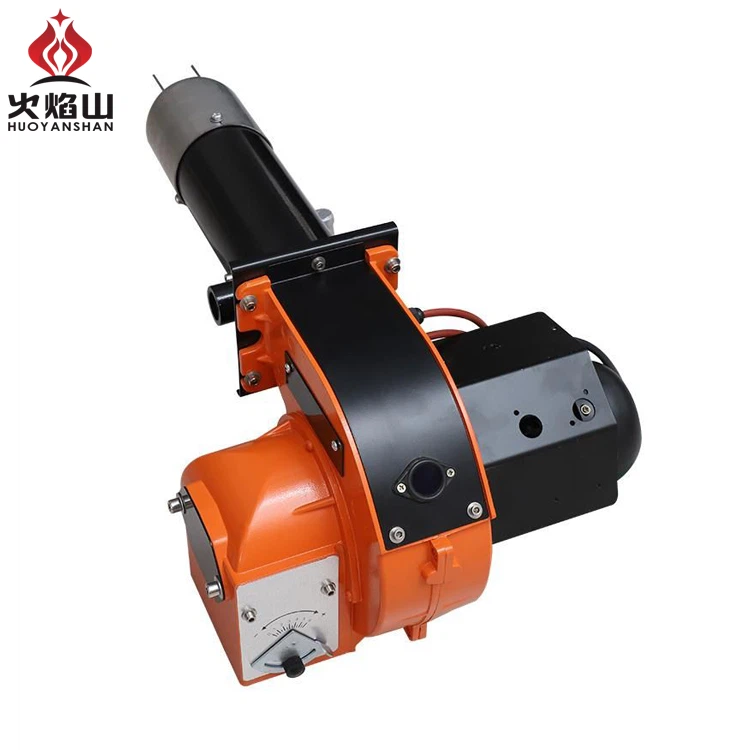

Diesel Heavy Oil Burner



The function of the ignition system of the heavy oil burner is to ignite the mixture of air and fuel, and its main components are transformers, ignition electrodes, and electric high-voltage cables. Ignition transformers are divided into electronic and mechanical (inductive) types. They are conversion components that generate high-voltage output. The output voltage is generally 2% 205KV, 2% 206KV, 2% 207KV, and the transmission current is generally 15~30mA.

The ignition electrode converts high-voltage electrical energy into light energy and thermal energy in the form of arc discharge to ignite the fuel. Generally, there are two types: single type and split type. The role of electric fire high-voltage cables is to transmit electrical energy. It can withstand 1.5 million volts.





Diesel heavy oil Burner Monitoring System:

a flame monitor, a pressure monitor, and an external monitoring temperature monitor. The function of the fuel system is to ensure that the burner burns the required fuel.



The fuel system of the Diesel heavy oil burner mainly includes:

oil pipe and joint, oil pump, solenoid valve, nozzle, heavy oil preheater. Gas burners mainly include filters, pressure regulators, Xiaoyi Dayi valve groups, and ignition solenoid valve groups.

The electronic control system of the heavy oil burner is the command center and contact center of the above systems. The main control element is the program controller, which is equipped with different program controllers for different burners.



Before using a Diesel heavy oil burner, note the following:

1. During the debugging process, pay attention to the high temperature of the heavy oil to avoid scalding people.

2. Do not do open flame operations such as welding on site.

3. If it fails to ignite several times, find out the reason, and then ignite after improvement.

4. Observe whether the flame is normal or not with partial fire and coking.

5. Observe whether the adjusted output meets the requirements.

6. After debugging, the customer should be taught the use and precautions, and the user should be trained to establish the operation process.

7. Stop boils for a long time every day, and change to light oil for about ten minutes to prevent residual heavy oil.





• Adopt advanced low-pressure medium atomizing spray gun, with strong oil adaptability;
• The integrated burner specially developed for the drying cylinder of the asphalt station has a compact structure and is easy to install and maintain. The oil supply lines and control lines are compactly arranged for easy system connection. The left and right double access door structure is adopted, which is convenient for layout and maintenance.
• The oil pump and fan all adopt frequency conversion control technology, which reduces the complexity of the traditional mechanical proportional adjustment system and improves the reliability of the system;
• It can directly burn heavy oil, reducing the oil reaction failure that may be caused by traditional light and heavy oil conversion;
• The special fan is adopted, and the high-efficiency air distribution structure makes the flame shape more stable and prolongs the service life of the flame tube.
• The fuel valve adopts a self-reset closing method, which can be closed by itself without relying on external force in extreme accidents to prevent safety accidents.
• Safety, energy saving, all meet Chinese and international industry standards.
• The components adopt effective protective measures, which can adapt to the harsh operating environment of the asphalt mixing plant, effectively eliminate hidden troubles and ensure a high degree of safety.
• Two control modes of constant pressure and constant frequency are used to control the fuel injection quantity, precisely control the air-oil ratio, and the combustion efficiency is higher. The adaptive control technology is adopted to automatically compensate for the deviation of the air-oil ratio of the burner caused by the wear of the fuel pump, so as to prolong the service life of the fuel pump.
• The adjustment ratio is 1:10, the ignition starts to run smoothly, and the temperature control accuracy is high.
• Applicable fuel: light oil, heavy oil, residual oil and blending oil





Burner model	Power (KW)	Fuel consumption (kg/h)	Specification of supporting asphalt mixing station	Operation mode
LCR1000Y	720-7200	65-650	1000	Electronic modulation Dual frequency conversion control
LCR1500Y	1050-10500	94-940	1500
LCR2000Y	1420-14200	128-1280	2000
LCR3000Y	2170-21700	194-1940	3000
LCR4000Y	2680-26800	240-2400	4000





1. Applied to various boilers: such as garment factories, catering industries, etc.,

2. Applied to powder spray drying production line,

3. Applied to zinc-aluminum alloy die-casting industry

4. Applied to various thermal energy equipment, such as road construction, asphalt heating heat conduction furnace, food oven, air conditioner heater, snow sweeper, garbage incinerator, hot air generator and various general boilers.









Pre-sale service:

• Guide customers to choose the appropriate equipment model.
• Send engineering and technical personnel to the production site in time to plan the site for customers, design reasonable processes and solutions.
• We can design and manufacture products according to the special needs of customers to meet the different needs of investors



On sale service:

• Strict inspection of products before leaving the factory
• Ships according to contract



After-sale service:

• The main warranty period of the equipment sold by our company is one year (except for the failure or damage caused by human factors, fuel factors or irresistible natural phenomena, and vulnerable parts are not covered by the warranty: fuel injectors, pump heads, photosensitive eyes, etc.).
• If the equipment failure is caused by human factors, the cost will be charged according to the factory price.
• After receiving the warranty notice, reply within 2 hours. 24 hours technical guidance to solve problems.







Zhengzhou Odifei Machinery Equipment Co.Ltd id founded in 2004, which is a specialized enterprise dedicated to R & D and production of the tire recycling plant, tire pyrolysis plant, distillation plant, waste engine oil refining plant, tire crusher, plastic crusher, tire cutter machine, rubber powder plant, tyre shredder machine, plastic shredder, Heavy oil burner, diesel burner, methanol burner, pulverized coal burner, biomass burner, Bucket elevator, vertical vibrating feeder, belt conveyor, scraper conveyor, screw conveyor, chain conveyor, etc.. our company by reputation first, service first, customer first is an objective and take integrity as life. All for customer's satisfaction efforts, all for the company's long term healthy development efforts. We solemnly promise that we will develop us with good quality and credible after sale service! We sincerely welcome you to our company and give us suggestions and directions!!!





Q: Are you a factory or a trading company? When we use a burner, can we use it to burn other raw materials?

A: We are a factory, established in 2007, specializing in the production of heavy oil fuel engines, diesel burners, methanol burners, biomass burners and other burners. If you need to burn other raw materials, please select the corresponding burner.



Q: Can heavy oil burners use light diesel as fuel?

Answer: Yes, heavy oil burners can use light diesel as fuel; but light diesel burners should try not to use heavy oil as fuel, which will easily block the nozzle.



Q: How to choose the right burner?

A: According to the required heat, fuel, boiler size and other parameters.



Q: How is the machine installation?

A: For the installation of the burner, we will provide you with the wiring diagram and technical support. Generally, you can do it yourself; but if you really need our technicians, we will send them to your workplace as needed.



Q: What about spare parts?

A: We always provide spare parts at cost price and provide you with a spare parts list when you buy the machine.



Q: Will you test the machine before delivery?

A: Yes, we will test each machine before shipment and send you the working video. You can also contact us before delivery.



Q: Can I be an agent of the burner in our area?

A: Thank you for your trust. Please contact us for preliminary verification: First, whether there is already a local agent for the burner. Second, whether the agency conditions are met.
