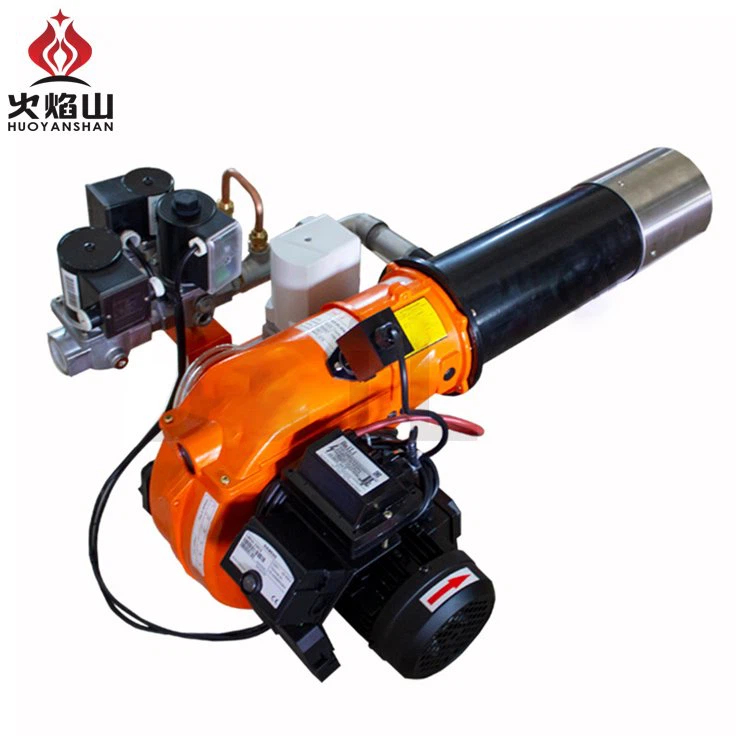

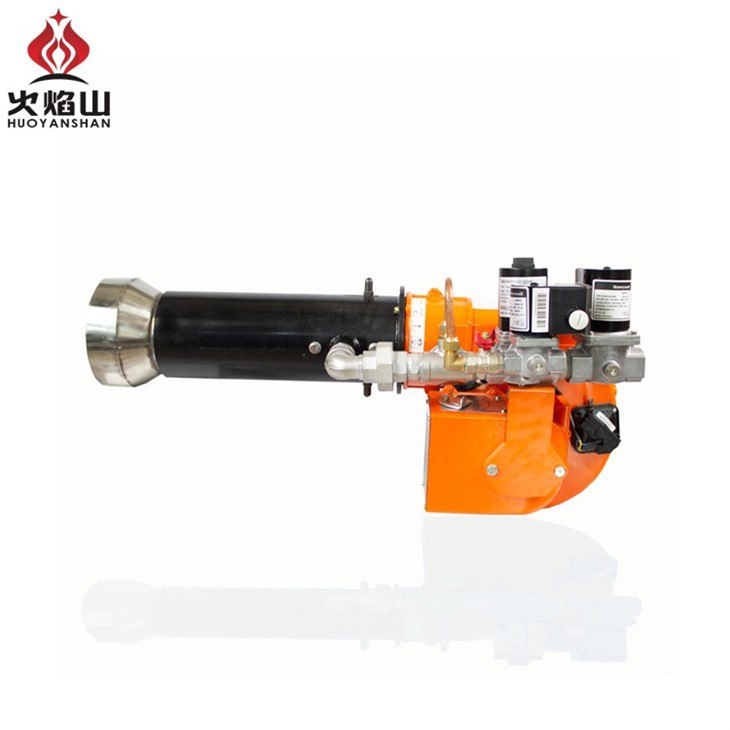

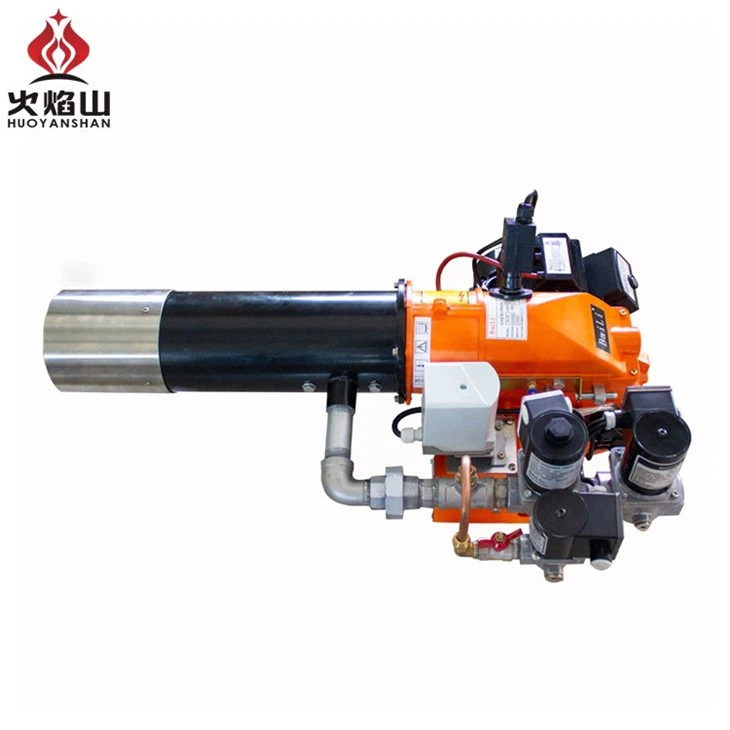

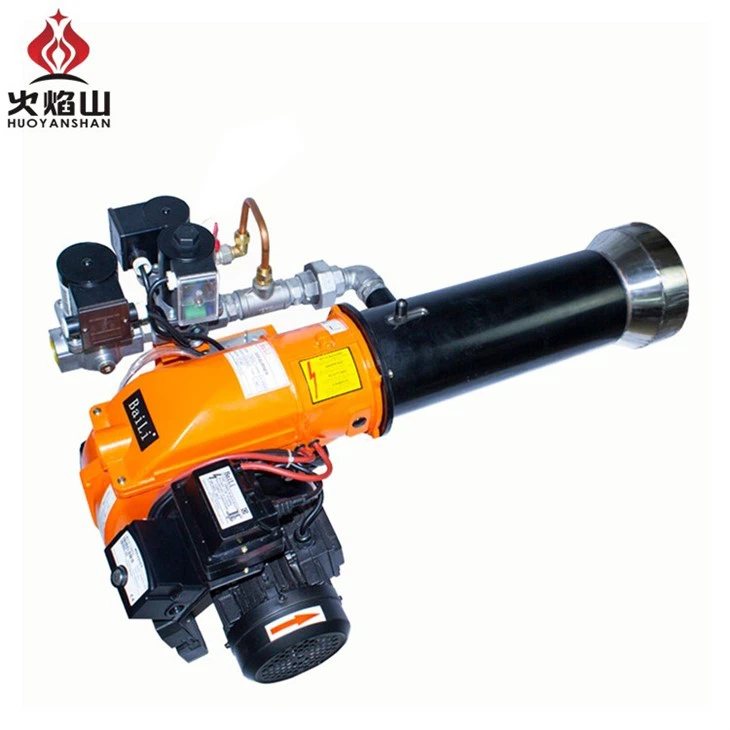

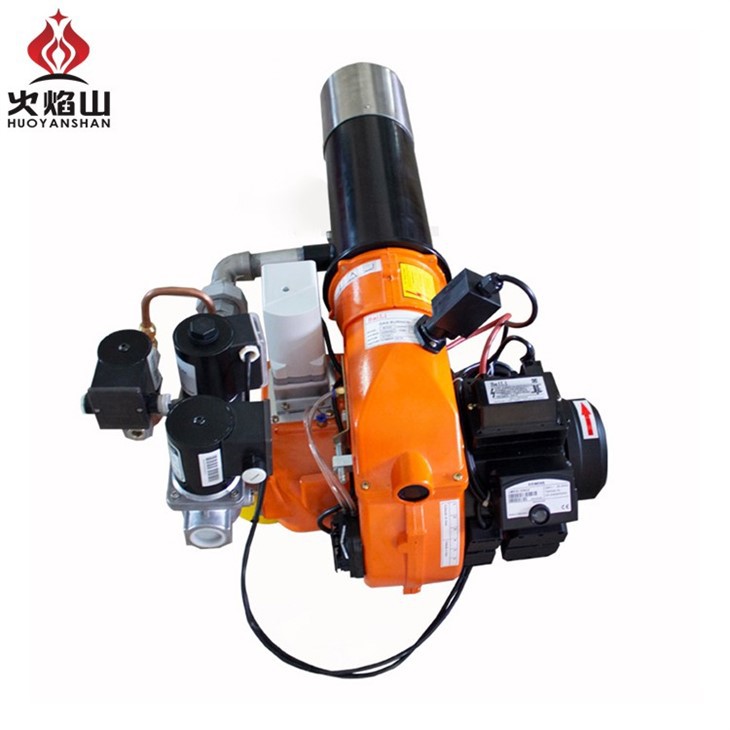

Diesel Burning Machine

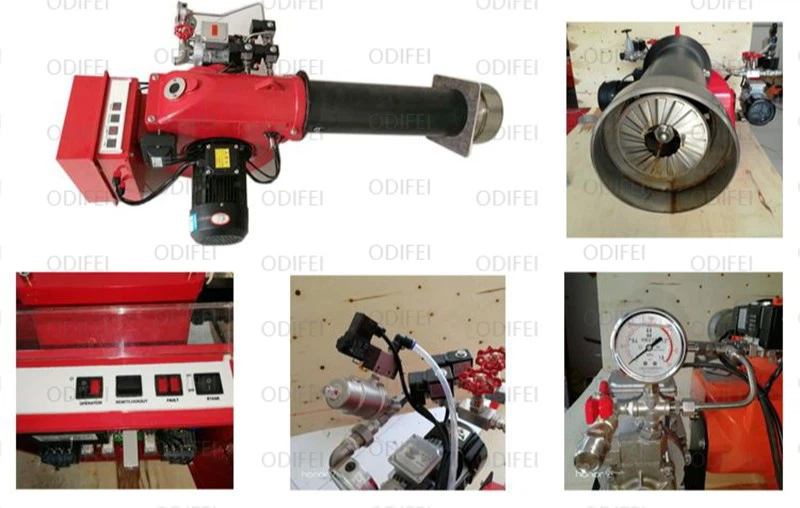

In order to fully burn the fuel, the atomization quality of the fuel must be improved to mix the oil mist with the air, which is mainly achieved by the burner. The burner is the key equipment of the oil-fired boiler. It consists of fuel injection part, air regulating machine part, ignition combustion device, electrical system, motor and servo motor. The fuel injection part is composed of oil pump, oil pump control valve, filter screen, oil preheater, solenoid valve, fuel injection nozzle, oil return control valve, etc.;





1. Heating evenly to prevent local overheating

2. The furnace heats up and the material heats up quickly

3. The pressure in the furnace is uniform

4. Save fuel and burn fully

5. The content of nitrogen oxides in the flue gas is low, and the noise is small

6. No pollution





Model	ODF-30	ODF-40	ODF-60	ODF-80
Fuel	Methanol, light diesel oil, kerosene and other liquid fuels (heavy oil and waste oil fuels require heavy oil burners)
Air Pressure（MPa)	0.3
Size （mm）	630*650*380	1000*740*430	1030*740*430	1270*850*500
Protection class（IP）	45（The protection level can be increased according to the order requirements）
Air volume adjustment method	Manual damper adjustment	Automatic damper adjustment

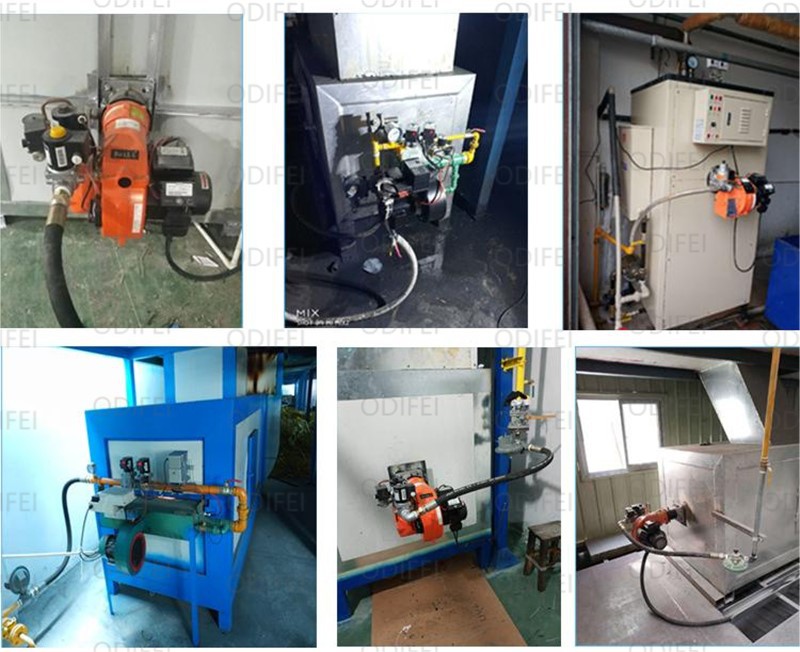

1. Applied to various boilers: such as garment factories, catering industries, etc.,

2. Applied to powder spray drying production line,

3. Applied to zinc-aluminum alloy die-casting industry

4. Applied to various thermal energy equipment, such as road construction, asphalt heating heat conduction furnace, food oven, air conditioner heater, snow sweeper, garbage incinerator, hot air generator and various general boilers.











·The light diesel oil used must be clean, please pay attention to cleaning the fuel tank and oil filter regularly.

· Under normal use conditions, replace the oil nozzle once a year, and replace the elastic coupling and the rubber parts on the coupling once a year and a half.

· It is strictly forbidden for foreign objects to enter the air duct.

· The burner should be kept away from flammable and explosive materials and equipped with fire extinguishing equipment.

· Adjust the oil pressure appropriately according to the oil pressure indication value.

· Regularly check the combustion cylinder, impeller, flame detector and ignition electrode to remove oil stains and carbon deposits. In particular, the flame detector should be kept clean and free from water.

· Always switch off the power supply when servicing the burner.







Pre-sale service:

• Guide customers to choose the appropriate equipment model.
• Send engineering and technical personnel to the production site in time to plan the site for customers, design reasonable processes and solutions.
• We can design and manufacture products according to the special needs of customers to meet the different needs of investors



On sale service:

• Strict inspection of products before leaving the factory
• Ships according to contract



After-sale service:

• The main warranty period of the equipment sold by our company is one year (except for the failure or damage caused by human factors, fuel factors or irresistible natural phenomena, and vulnerable parts are not covered by the warranty: fuel injectors, pump heads, photosensitive eyes, etc.).
• If the equipment failure is caused by human factors, the cost will be charged according to the factory price.
• After receiving the warranty notice, reply within 2 hours. 24 hours technical guidance to solve problems.







Zhengzhou Odifei Machinery Equipment Co.Ltd id founded in 2004, which is a specialized enterprise dedicated to R & D and production of the tire recycling plant, tire pyrolysis plant, distillation plant, waste engine oil refining plant, tire crusher, plastic crusher, tire cutter machine, rubber powder plant, tyre shredder machine, plastic shredder, Heavy oil burner, diesel burner, methanol burner, pulverized coal burner, biomass burner, Bucket elevator, vertical vibrating feeder, belt conveyor, scraper conveyor, screw conveyor, chain conveyor, etc.. our company by reputation first, service first, customer first is an objective and take integrity as life. All for customer's satisfaction efforts, all for the company's long term healthy development efforts. We solemnly promise that we will develop us with good quality and credible after sale service! We sincerely welcome you to our company and give us suggestions and directions!!!





Q: Are you a factory or a trading company? When we use a burner, can we use it to burn other raw materials?

A: We are a factory, established in 2007, specializing in the production of heavy oil fuel engines, diesel burners, methanol burners, biomass burners and other burners. If you need to burn other raw materials, please select the corresponding burner.



Q: Can heavy oil burners use light diesel as fuel?

Answer: Yes, heavy oil burners can use light diesel as fuel; but light diesel burners should try not to use heavy oil as fuel, which will easily block the nozzle.



Q: How to choose the right burner?

A: According to the required heat, fuel, boiler size and other parameters.



Q: How is the machine installation?

A: For the installation of the burner, we will provide you with the wiring diagram and technical support. Generally, you can do it yourself; but if you really need our technicians, we will send them to your workplace as needed.



Q: What about spare parts?

A: We always provide spare parts at cost price and provide you with a spare parts list when you buy the machine.



Q: Will you test the machine before delivery?

A: Yes, we will test each machine before shipment and send you the working video. You can also contact us before delivery.



Q: Can I be an agent of the burner in our area?

A: Thank you for your trust. Please contact us for preliminary verification: First, whether there is already a local agent for the burner. Second, whether the agency conditions are met.
