Diesel Burner

Diesel Burner

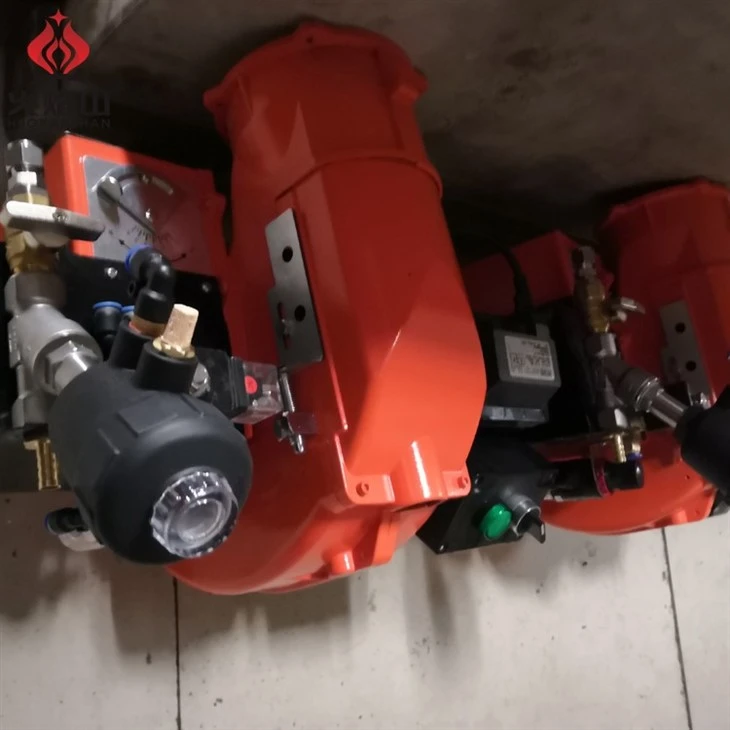

The  Diesel Burner can burn all flammable liquids as fuel. It adopts the two-stage fire control method, and the burner heats up to 18 million kcal. Using the second-stage combustion control method, the air-fuel ratio is optimized, and it has protection functions such as power failure, low fuel pressure, and low air pressure. Equipped with an ion current and electronic eye detection module, an ion current and electronic eye double flame detector, to achieve safe, efficient, reliable combustion, with no safety hazard. It is widely used in steam boilers, hot water boilers, heat transfer oil furnaces, coal-fired boilers, hot blast stoves, drying furnaces, kilns, ovens, and other boilers that require heat sources.

1. Liquid atomization has smaller molecules and more complete combustion.

2. Fuel consumption is saved by 10% to 20%.

3. Strong anti-corrosion ability, increasing the service life of the whole machine

4. All parts are easy to disassemble, clean, repair, and replace;

5. Can adapt to any type of combustion chamber;

6. Simple structure, easy to operate, and easy to install.

7. Wide range of applications, high viscosity fuel oil can be used

8. Flexible flame size adjustment, safe and reliable, and low noise

Specification	Parameter	Specification	Parameter
Model	ODF-30	Air supply pressure	10(kg/h)
Scope of application	boiler drying heating	Dimensions	800*1000*960(mm)
calorific value	30 (10,000 cal/h)	weight	200KG
Types	industrial burner	flame length	0.3-2m
Rated voltage	380v	power	1.5kw

1. Applied to various boilers, such as garment factories, catering industries, etc.

2. Applied to powder spray drying production line,

3. Applied to the zinc-aluminum alloy die-casting industry

4. Applied to various thermal energy equipment, such as road construction, asphalt heating, heat conduction furnace, food oven, air conditioner heater, snow sweeper, garbage incinerator, hot air generator, and various general boilers.

1. When the equipment is parked, the liquid in the equipment should be drained.

2. Close all valves.

3. Thoroughly clean the surface of the equipment.

4. All rotating parts are coated with anti-grease.

5. Cover all the equipment with canvas to prevent dirt from depositing on the surface of the equipment.
