Introduction of Tire Oil To Diesel Equipment
Tire oil distillation equipment is widely used to refine waste tire oil, waste plastic oil, waste motor oil, waste industrial lubricating oil, waste diesel oil, etc. Using distillation catalytic technology, all waste oil can be regenerated into base oil and diesel oil, which has the characteristics of low cost, recovery rate as high as 85%-90%, environmental protection and energy saving. The recycling of waste motorcycle oil is not only the regeneration of waste motorcycle oil, but also can reduce the emission of pollutants. It is the first choice for waste oil recycling enterprises and will bring the greatest economic and social benefits to the enterprise.
Raw Materials
|
NO |
Raw materials |
Note |
|
1 |
Waste engine oil |
All kinds of liquid oils are available, but the oil yield varies. Please inform us of the type of raw materials, or mail your samples. We will test the oil rate for you in advance.
|
|
2 |
Tyre oil |
|
|
3 |
Plastic oil |
|
|
4 |
Crude oil |
|
|
5 |
Used motor oil |
|
|
6 |
Heavy oil |
|
|
7 |
Waste lubricating oil |
|
|
8 |
Waste diesel |
Machine Model
|
No |
Model |
Proess Capacity |
Weight |
Power |
|
1 |
ODFJL-5 |
5T/D |
10T |
65KW |
|
2 |
ODFJL-10 |
10T/D |
15T |
70KW |
|
3 |
ODFJL-20 |
20T/D |
20T |
85KW |
|
4 |
ODFJL-30 |
30T/D |
35T |
100KW |
Contrast Table
(Comparison of Technical Indicators of Diesel, Mixed Oil and National Standard 0# Diesel after Distillation)
|
Item |
Diesel oil (after distillation) |
Mixed Oil |
National Standard 0 # Diesel |
|
Oxidation stability |
2.0 |
1.5 |
2.5 |
|
sulfur content% |
0.008 |
0.005 |
0.05 |
|
10%Steam residue carbon% |
0.25 |
0.2 |
0.3 |
|
Ash% |
0.008 |
0.007 |
0.01 |
|
Copper corrosion / grade |
1.1 |
1.1 |
1 |
|
Moisture% |
trace |
trace |
trace |
|
Mechanical impurities |
NO |
NO |
NO |
|
density |
0.85 |
0.80 |
0.82-0.86 |
|
Solidifying point/℃ |
-10 |
-20 |
0 |
|
Flash point (closed)/℃ |
45 |
40 |
55 |
|
Kinematic viscosity |
2.5 |
2.0 |
3.0-8.0 |
|
Combustion value |
9500 |
9200 |
8500 |
|
Chroma |
1.2 |
1.5 |
≤3.5 |
|
Cetane number |
43 |
40 |
46 |
Advantage
(A) Different kinds of waste oil can be treated: such as waste motor oil, waste lubricating oil, tire oil, pyrolysis oil, waste diesel oil, etc.
(B) Water cooling system
"S" type tube cooling, long cooling distance and long cooling time, ensure that the oil and gas are fully condensed into oil. Improve oil yield.
(C) Pretreatment System
The waste oil is dehydrated to prevent the waste oil from overflowing into the catalytic tower when it is heated in the distillation furnace, so as to prolong the service life of the catalyst.
(D) Flue gas treatment system
The flue gas is discharged after being treated by the dust removal system, so that it meets the discharge standard and does not pollute the environment.
(E) Oil Purification System
After the refined oil is filtered and precipitated, the color is more translucent. Improve the quality of refined oil.
(F) Electric heating system
Precise temperature control to improve the quality of refined oil.
FAQ
Q1. What is the final product after processing?

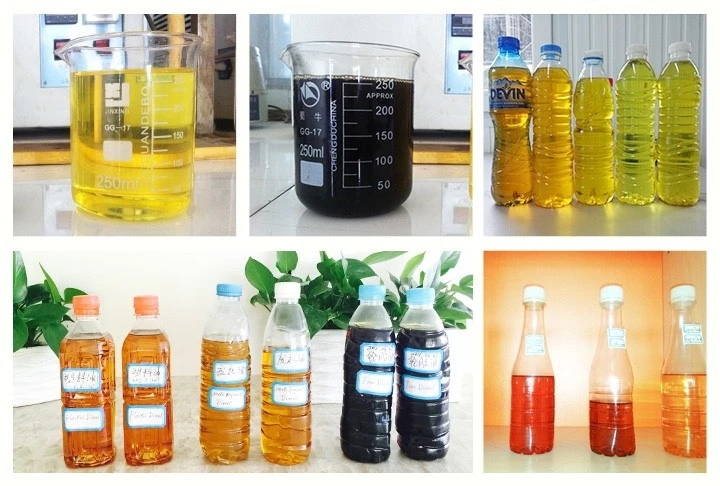

A. Diesel, gasoline and heavy oil.
Q2. Does your process use catalysts?
A. Yes, both liquid catalysts and gaseous catalysts. Using the catalyst of Zhengzhou Odifei Machinery Equipment Co., Ltd., no need for acid-base washing, the refined oil can be obtained directly. More environmentally friendly and lower operating costs.
Q3. Can the refined diesel be used directly in the engine?
A. Yes, treated diesel can be used directly in engines such as trucks, ships, etc.
Q4. Is the Tire Oil To Diesel Equipment running continuously?
A: Yes, our machines are running continuously for 24 hours. We have intermittent, semi-continuous and full-continuous, customized solutions according to your usage.
Our Company
|
Company Name |
Zhengzhou Odifei Machinery Equipment Co., Ltd. |
|
Covering Area |
30000 Square Meters |
|
Founded Year |
2004 |
|
Certification |
ISO, CE, Patents, SGS Report, ISO9000 |
|
Main Products |
Pyrolysis Machine, waste tyre pyrolysis plant, waste plastic pyrolysis plant, tyre crusher, waste oil distillation plant, pyrolysis oil to diesel machine, waste engine oil refining machine, oil burner, diesel burner, heavy oil burner |
|
Engineer Owned |
4 R&D Engineers, 19 Technical People |
|
International Market |
15% Europe, 14% Southeast Asia, 33% Chinese Mainland, 5% America, 7% Africa, 8% Middle East, 3% East Asia, 11% South Asia, 4% Central Asia, 11% South Asia |
After-Sales Service
1. Quality warranty period: Jinzhen's plants enjoy one-year guarantee, after which, we still offer lifelong technical support for your plant.
2. Our After-sales Service Department will pay you regular visits for any feedback, opinions or suggestions.
3. For any tiny plant problem you cannot solve after one-year guarantee finishes, please feel free to Email or call our salespeople, who will wholeheartedly help you solve your problem.
4. For problems that cannot be solved via email or phone-call, our engineers may be dispatched to do plant maintenance and debugging (which usually takes as short as one day) until your plant resumes normal operation.
5. For the damage caused by the users, our company provides the parts and accessories with cost price.
