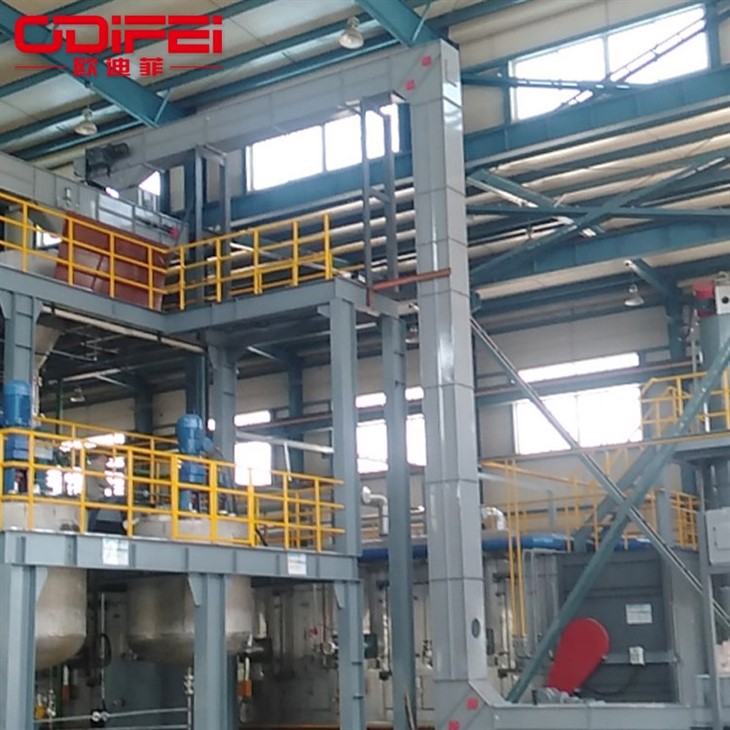

Pet Feeding Bucket Elevator





The Z-shaped elevator is mainly used for vertical lifting of pellets in the grain, food, feed and chemical industries. It can convey materials in a horizontal-vertical-horizontal manner, which is a type of elevator. The Z-shaped elevator can save the cost of the production line and improve the efficiency of production. The lower horizontal conveying section is mainly used for feeding, the vertical lifting section is mainly used to lift the material to a specified height, and the upper horizontal conveying section is mainly used for single-point or multi-point unloading. The machine constitutes a quantitative packaging system, which is easy to use.





1. Wide range of promotion

2. Large conveying capacity

3. Low drive energy consumption

4. Long service life

5. High lifting height

6. Good sealing

7. High structural precision





Hopper: In order to meet the needs of customers, there are various materials such as nylon, ABS, PP, stainless steel 304, stainless steel 316L, stainless steel 310, carbon steel, etc.

Chain: Using domestic famous brand chain, our rotary bucket conveyor mechanical conveyor chain adopts large pitch self-lubricating roller conveyor chain. Therefore, the friction loss of the chain in use is reduced, the service life of the chain is prolonged, and the maintenance and replacement cost is reduced.

Chassis: The whole machine can be made of carbon steel cold plate electrostatic spraying or stainless steel structure

Conveying type: Rotary bucket conveyor transports materials in a closed body, and transports materials through a hopper suspended on a chain. The modular design can realize a wide range of configurations and can be combined horizontally, vertically and horizontally. Z-type, C-type, E-type, L-type, R-type can also be multi-point feeding, multi-point unloading, the whole machine is fully sealed, no pollution, no leakage, neat and clean, and flexible composition, can be used in a small space Conveying is carried out vertically and horizontally inside, making the conveying machinery easy to install and modify.





Z-type hoist model	ZX-160	ZX-330	ZX-500	ZX-650
Conveying capacity m³/h	2.9～4.8	6.0～10.0	25.4～42.3	32.9～54.9
Model	ZX-250	ZX-400	ZX-530	ZX-800
Conveying capacity m³/h	4.6～15.7	15.2～25.2	20～33.4	40.6～67.6



Note:

1. The bucket volume in the table is the calculated bucket volume, and the conveying volume is calculated according to the filling factor of 0.6.

2. Hopper: food grade ABS hopper/stainless steel hopper/carbon steel hopper





Z series hoist is composed of running parts, driving device (slow rotation device), upper device, middle casing and lower device.

Running parts----consists of hopper and sleeve roller chain.

Driving device - adopts Y series motor, reducer and chain drive reducer, etc. (electronic control switch user-defined).

Slow-running device-adopting a geared motor, linked with a reducer and a chain drive reduction device through a clutch, generally used during equipment maintenance, this device is a user-selectable device.





This device can be used in a wide variety of environments that require gentle handling. Z-type feeding, C-type feeding, Z-C mixed feeding and multi-point feeding, multi-point unloading and other occasions. At present, it is mostly used for the feeding of weighing and packaging machines, the feeding and re-selection of color sorting machines, the three-dimensional circulation loading and unloading of automatic production lines, and the multi-point feeding of automatic weighing and batching systems.











Suitable for pet food industry, puffed food industry, feed industry, candy industry, dried and fresh fruit industry, cosmetics industry, health food industry, grain finishing processing industry, metallurgical manufacturing industry, Chemical and pharmaceutical industry, hardware and electrical materials industry, military industry and so on.



Lift material of Pet feeding bucket elevator

Food industry: biscuits, gummies, marshmallows, small steamed buns, pancakes, chicken essence, potato chips, rice noodles, dumplings, peanuts, melon seeds, pistachios, rice, etc.

Chemical industry: plastic granules, activated carbon, preservatives, additives, fertilizers, etc.

Pharmaceutical industry: capsules, tablets, pills, etc.

Hardware industry: screws, nuts, metal fittings, etc.







The Z series hoist is vertical, and its foundation bears the entire weight of the hoist, so the foundation must be checked before installation.

The Z series hoist is divided into several parts and is installed by the user on site. Usually installed in the following order.

1. First install the anchor bolts on the foundation, then install the lower device, calibrate its relative position on the foundation, so that the datum surface (upper flange surface) of the casing is in the horizontal plane, and then temporarily fasten it on the foundation superior.

2. Install the middle casings on the lower device one by one. Generally, the middle section with inspection door is installed at the position of the middle casing of the first section, and the first middle section must be connected with the upper device (pay attention to the supporting direction of the first middle section). ). Some middle sections are welded with anti-chain deviation guide rails. Such middle sections are delivered with a height of about 2mm. When installed, they are also configured with a height of about 2mm.

3. After the middle casing is installed and calibrated, install the upper device. In general, support devices should be installed at the upper and middle positions to prevent the casing from shifting sideways. The support devices should be reliably fixed on nearby buildings and allow the hoist to be freely retracted in the vertical direction. Coarse canvas or woven asbestos tape and asbestos rope should be padded at each connecting flange to prevent dust from rising.

4. To install the drive platform at the upper device, first connect the three platforms with bolts to form a whole, and then bolt or weld the whole platform and the root support channel steel to the upper casing. Then weld the maintenance frame and the segmented railing on the whole platform. Then install the power, drive chain and sprocket cover. After the chain drive is adjusted, fix it with bolts. Notice! ! The drive base and drive platform should be welded together.

5. Install the running parts. First lift the tail shaft to the highest position, and then install the chain and hopper.

6. Finally, install the left (right) hood. Set up electrical overload protection devices and electrical protection switches, and connect the transmission line to the motor of the hoist.





1. The hopper belt slips.

Adjust the handwheel of the landline and tighten the hopper belt.

2. The bearing is dusty and poorly lubricated.

Clean the bearings and add new grease.

3. The transmission belt slips or falls off, or the transmission device fails.

Tighten the drive belt to eliminate the fault of the transmission device.

4. The hopper screw is loose or falls off, and the hopper moves or falls off. Stop for inspection, tighten the hopper screws, and adjust the hopper position.





1. The granular Z-type bucket elevator is managed by a special person, and the power switch is regularly checked.

2. In order to improve the safety of use, the hoist needs to install a hoist limiter and a travel limiter. Let the pulley lift to the distance from the reel.

3. 300mm can make the hoist stop automatically, and can also carry out trial lifting.

4. The hoist should have a load sign, and the weight should not be overloaded when lifting and lowering.

5. After the hoist starts to send electricity, check the working conditions of the hoist limiter, travel limiter and interlock switch in order to see if they are normal.

6. Before lifting or landing, the car can be driven only after the bell rings.

7. The industrial pellet feeding conveyor is not allowed to carry people up and down.

8. After the work is completed, the hanging plate of the particle Z-type vertical feeder should fall to the ground, then cut off the power supply, and close the upper and lower guardrail doors.

9. Always keep the surrounding environment of the particle Z-type vertical feeder hygienic.





Name of lubricating part	Lubricating material	Lubrication Cycle	Lubrication method
Bearing	Water Resistant Grease	200 hours	with a lubricator
Backstop	Water Resistant Grease	50 hours	with a lubricator
Tension Bolt	Water Resistant Grease	500 hours	smear
Speed reducer	According to the specification of the equipped reducer	6 months	pour
Electric Motor	Water Resistant Grease	6 months	pour





Pre-Sale Service:

• Guide customers to choose the appropriate equipment model.
• Send engineering and technical personnel to the production site in time to plan the site for customers, design reasonable processes and solutions.
• We can design and manufacture products according to the special needs of customers to meet the different needs of investors



On Sale Service:

• Strict inspection of products before leaving the factory
• Ships according to contract



After-sale Service:

• The main warranty period of the equipment sold by our company is one year (except for the failure or damage caused by human factors, fuel factors or irresistible natural phenomena, and vulnerable parts are not covered by the warranty: fuel injectors, pump heads, photosensitive eyes, etc.).
• If the equipment failure is caused by human factors, the cost will be charged according to the factory price.
• After receiving the warranty notice, reply within 2 hours. 24 hours technical guidance to solve problems.







Zhengzhou Odifei Machinery Equipment Co., Ltd. has been focusing on conveying equipment for 17 years. Its main business is: spiral vibration vertical elevator, slat feeder, chain plate conveyor, slat conveyor, scraper conveyor, large angle belt conveyor, screw conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, TH ring chain bucket elevator, NE bucket elevator, NSE bucket elevator and other full range of bucket elevators. TD75 belt conveyor (or belt conveyor), mobile conveyor, belt conveyor with large inclination angle ribs; screw conveyor, shaftless screw conveyor; light, medium and heavy chain plate conveyor; chain bucket conveyor machine, SCD trough clinker conveyor; horizontal double shaft mixer; light, medium and heavy plate feeder; GZG motor vibration feeder; trommel screen, shaftless trommel screen;

In 2010, our company's R&D team entered the resource recycling industry, and successively developed domestic waste treatment scaly conveyors, domestic waste screening and sorting shaftless trommel screens, construction waste slat feeders, and electric arc furnace scaly scrap conveyors, which not only create It also creates objective social and environmental benefits, and is an indispensable part of the resource recycling industry chain.

Zhengzhou Odifei Machinery Equipment Co., Ltd. has continuously carried out technological innovation in the spirit of excellence, and has developed several practical new products. The product is advanced in design, fine in production, reliable in performance, has international advanced level, sells well at home and abroad, and aims to be the industry leader!





Q: Bucket elevators are composed of some components

A: Hopper: fixed on the tape (or traction chain), there are three kinds

Deep bucket - suitable for loose materials;

Shallow bucket - materials with high viscosity;

Triangle bucket - heavy and lumpy materials

Shell: Built-in transmission and stopper.

Body: The thin steel plate is welded into a square shell, and the installation is deviated.

Bottom: Install tensioning device.



Q: There are several types of bucket elevators

A: 1. According to the layout form: it can be divided into vertical type and inclined type

2. According to different discharge methods: it can be divided into centrifugal, gravity and hybrid.

3. According to different charging methods: it can be divided into excavation type and injection type.

4. According to the structure of the hopper: it can be divided into shallow bucket, deep bucket and triangular bucket.

5. According to different traction components: it can be divided into tape and steel chain.



Q: What is the working principle of bucket elevator

A: The conveying working principle of the bucket elevator is as follows: the hopper scoops up the material from the storage below, lifts it to the top with the conveyor belt or chain, turns down after bypassing the top wheel, and the bucket elevator dumps the material into the accepted in the slot. The drive belt of the belt-driven bucket elevator generally adopts a rubber belt, which is installed on the lower or upper driving drum and the upper and lower redirecting drums. The chain-driven bucket elevator is generally equipped with two parallel transmission chains, with a pair of transmission sprockets on the top or bottom, and a pair of redirecting sprockets on the bottom or top. Bucket elevators are generally equipped with casings to prevent dust from flying in the bucket elevators.



Q: What are the advantages and disadvantages of bucket elevators?

A: Advantages:

1. The structure is simple, the lateral size is small, and the floor space is small.

2. The lifting height is large, the conveying capacity is good, the body is fully enclosed, and the environmental pollution is small.

3. Low power consumption.

Shortcoming:

1. It is easy to block when overloaded, and the hopper is easy to wear.

2. It is only suitable for conveying powder, granular and small and medium-sized bulk cargo, such as grain, coal, sand, etc.

3. The goods cannot be transported in the horizontal direction.



Q: Are you a factory or a trading company? When building a Pet feeding bucket elevator, What other materials are bucket elevators suitable for?

A: We are a factory, established in 2007, specializing in the manufacture of vertical vibration hoists, vertical vibration elevator, bucket elevators, belt conveyors, scale conveyors, screw conveyors, etc. Bucket elevator can be used in chemical industry, ceramic industry, food industry, metallurgical industry, etc..



Q: How about spare parts?

A: We always provide spare parts at cost price and give you a list of spare parts when you buy the machine.



Q: Will you test the Pet feeding bucket elevator before delivery?

A: Yes, we will test each machine and production line before delivery, and send the working video to you. You can also check with us before delivery.











Chassis: Semi-enclosed chassis - dust-proof chassis - airtight chassis - stainless steel chassis - carbon steel spraying chassis.

Hopper: stainless steel hopper - carbon steel hopper - food grade plastic hopper.

Drive: Explosion-proof reducer, ordinary reducer.

Sprockets: Alloy steel sprockets-stainless steel sprockets.

Chain: Alloy steel chain - stainless steel chain.

Control: Manual start and stop, automatic start and stop, frequency conversion control.

Others: The whole machine is explosion-proof, built-in forced ventilation system, automatic hopper cleaning system, automatic refueling system.





1. The shape of the material: whether the material is powder or granular or small block.

2. Physical properties of the material: whether the material has adsorption or viscosity, and whether it contains water.

3. Proportion of materials: Generally, the parameters of bucket elevator are designed and calculated for materials with a bulk specific gravity below 1.6. If the specific gravity of materials is too large, the traction force and the tensile strength of the transmission part need to be calculated.

4. The delivery volume per unit time.



If you are interesting in Pet feeding bucket elevator, please feel free contact us in 24 hours!

Welcome you visiting our factory!!!
