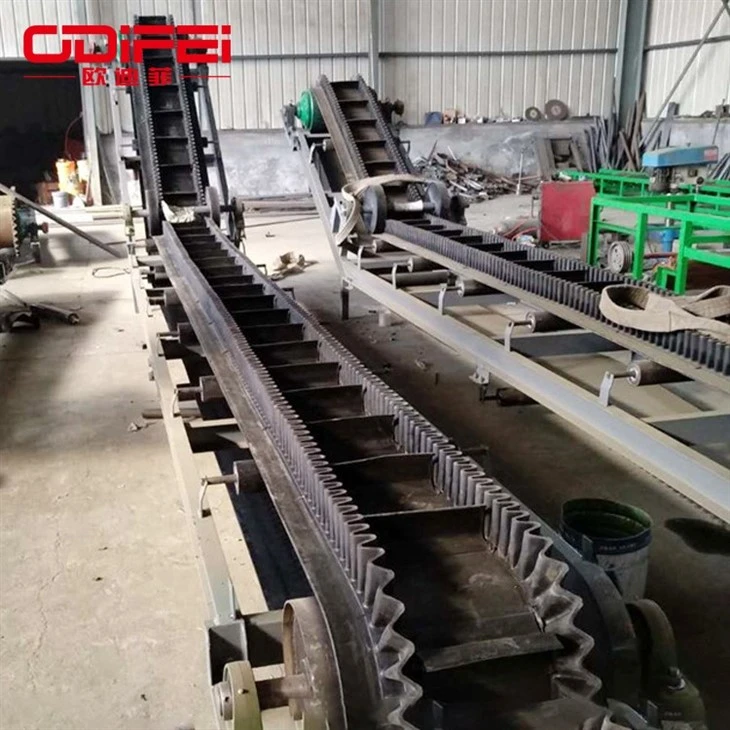

Building Belt Conveyor

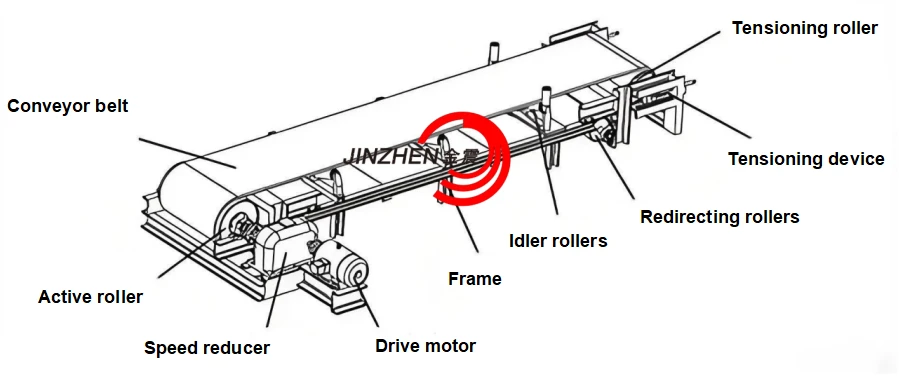

The Building Belt Conveyor is mainly composed of two end rollers and a closed conveyor belt tightly wrapped around them. The roller that drives the conveyor belt to rotate is called the drive roller (or transmission roller); the other roller, which only changes the direction of movement of the conveyor belt, is called the reversing roller. The driving roller is driven by the motor through the reducer, and the conveyor belt is dragged by the friction between the driving roller and the conveyor belt.

Model		JZ55	JZ57	JZ510	JZ5101	JZ5102	JZ515	JZ5151	JZ5152
Length (m)		5	7	10	10	10	15	15	15
Width (mm)		500	500	500	500	500	500	500	500
Speed (m/s)		1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
Maximum conveying height(m)		1.63	1.59	1.77	4.52	4.52	1.61	6.32	6.32
Capacity	m³/h	160	160	160	125	125	160	125	125
	t/h	145	145	145	112	112	145	112	112
Slope (°)		13°59'	9°16'	6.5°	10°~22°		3.81°	10°〜22°
Electric drum	Model	DY1.4			DY1.5	DY1.3	DY1.4	DY1.6	DY1.3
	Power -KW	2.2	2.2	2.2	3.0	1.1	2.2	4.0	1.1
Weight (kg)		51S	604	S92	1126	1071	1225	1491	1491

1. Long life;

2. The structure is compact, and the floor area is small (can be reduced by more than 50%).

3. Light weight and small size (can be reduced by 50%); especially the vertical transmission structure, it is more suitable for use on mining transportation machinery in coal mines.

4. Low horsepower compared with other types of conveyor.

5. Motor brand can be domestic or imported: Yutong, Shuangyu, ABB, Siemens, WEG, etc.
