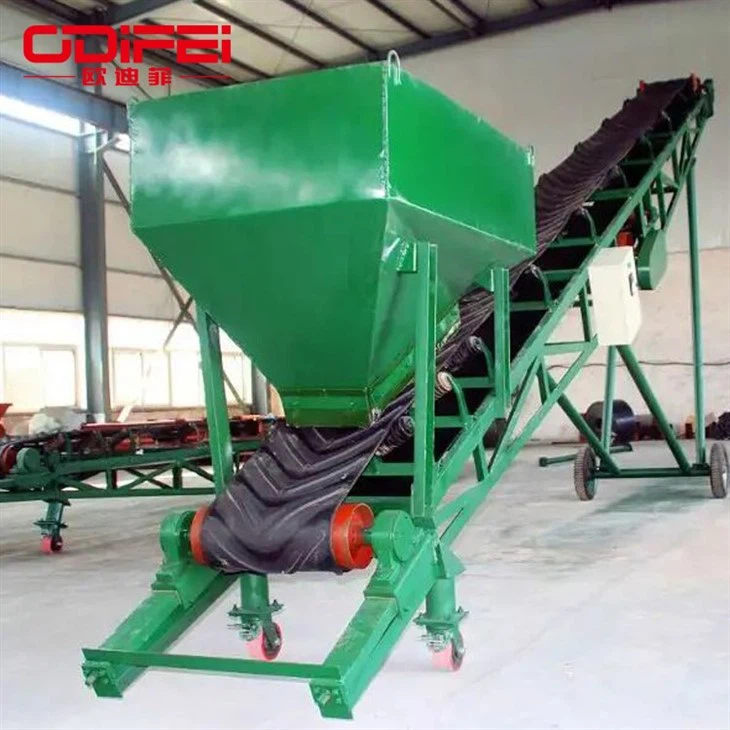

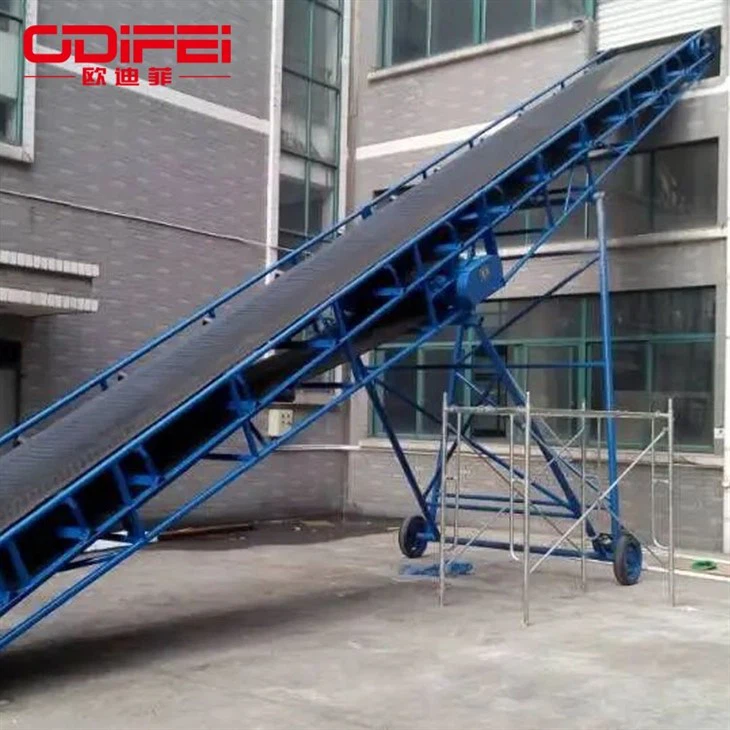

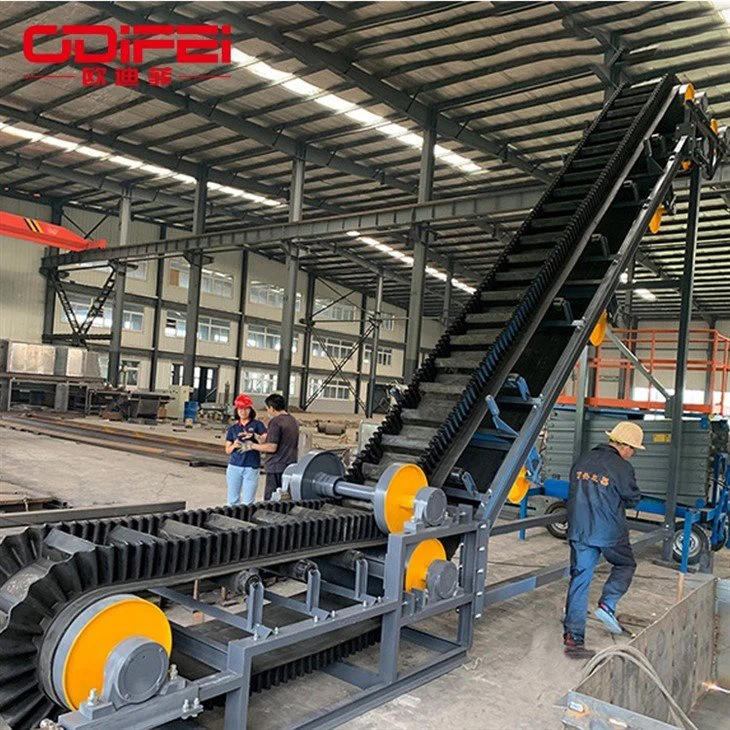

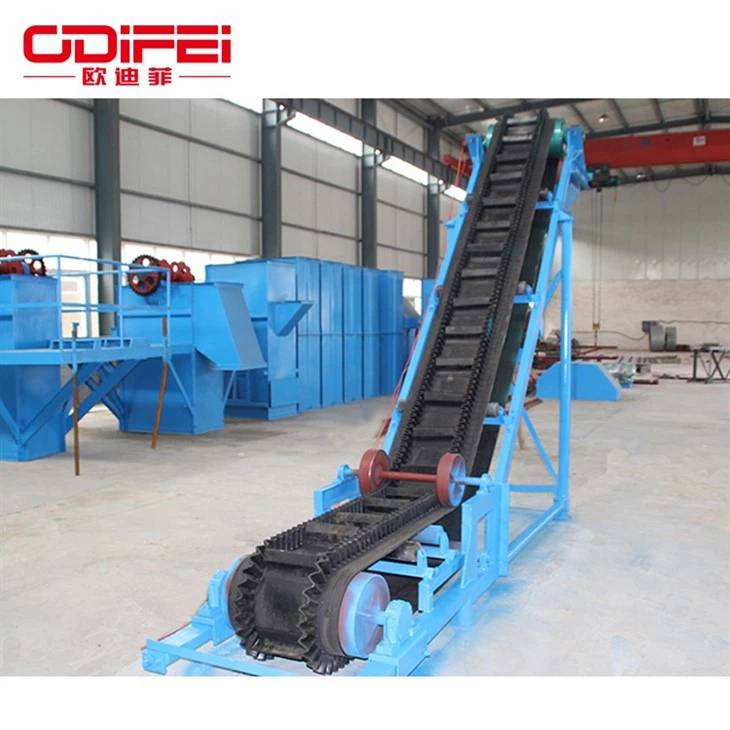

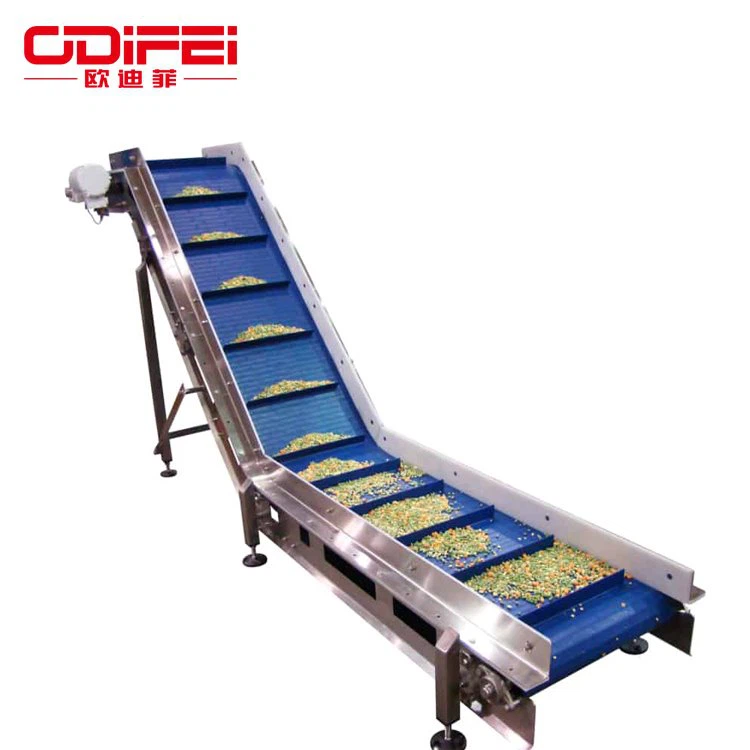

Large Inclination Belt Conveyor



DJ type large inclination belt conveyor is also called sidewall belt conveyor. The strength and elasticity of the diaphragm form a box-shaped bucket, so that the material can be continuously conveyed in the bucket. The sidewall belt conveyor can be widely used in coal, grain, building materials, chemical industry, hydropower and metallurgy and other departments. The ambient temperature is - Within the range of 19℃～+40℃, convey various bulk materials with bulk specific gravity of 0.5-2.5t/m3. For conveying materials with special requirements, such as high temperature, acid, alkali, oil or organic solvent, etc. The ingredients of the material, need to use a special sidewall conveyor belt.





1. cConveying bulk materials with a large inclination angle can greatly save the equipment floor area and solve the conveying angle that ordinary and patterned belt conveyors cannot reach.

2. Mechanized belt conveyor transports materials with low overall investment cost, which can save 20% - 30% of the investment cost. The effect of concrete and coal industries is better.

3. Compared with ordinary conveyor, bucket elevator and scraper conveyor, this model has superior comprehensive technical performance.

4. The conveying capacity is large, up to 2500m3/h, and the vertical lifting height can reach 200m.

5. When conveying materials vertically, the particle size of materials can be 400mm.

6. Smooth transition from horizontal to inclined (or vertical).

7. Low energy consumption, simple structure and convenient maintenance.

8. The tape has high strength and long service life.





Bandwidth Bmm	sidewall height Hmm	30°		45°		60°		75°
		Delivery volume m³/h	Power KW	Delivery volume m³/h	Power KW	Delivery volume m³/h	Power KW	Delivery volume m³/h	Power KW
500	120	52.8	2.85	36.5	1.86	26.6	1.32	19.8	0.98
650	120	77.6	3.97	53.3	2.3	39	1.85	29	1.35
	160	105	5.44	76.3	3.57	56.2	2.56	41.6	1.86
800	160	133	6.99	96.6	4.59	71.2	3.28	52.6	2.38
	200	195	9.8	159.8	7.07	117.6	5.07	86.5	3.66

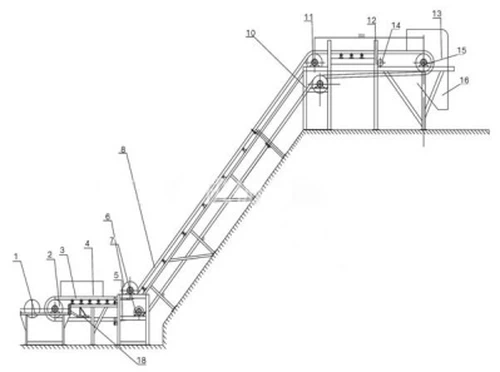

1. Tailstock(with tensioner) 2. Tailstock 3. Sidewall conveyor belt 4. Guide chute 5. Concave Arc Segment Bracket 6. pinch roller 7. steering wheel 8. Intermediate rack 9. Intermediate rack bracket 10. Convex segment bracket 11. Convex segment steering wheel 12. head frame 13. beater 14. hood 15. drive roller(With power) 16. hopper







These are the five most basic arrangements of skirt belt conveyors. In order to obtain better material receiving and unloading conditions, most of the models adopt the "Z" row arrangement. That is, there is an upper horizontal section, a lower horizontal end and an inclined section, and the material is fed at the lower horizontal end and discharged at the upper horizontal section.

(1) Upper horizontal section: In order to use different discharge height requirements, the head frame is divided into low head frame, middle head frame and high head frame. Correspondingly, the horizontal end is equipped with a low type convex arc section frame and a low type intermediate support leg, a middle type convex arc section frame and a Chinese type intermediate support leg, a high type convex arc section frame and a high type intermediate support leg. .

(2) Inclined section: no matter whether the horizontal section adopts the low-type, middle-type or high-type intermediate frame legs, the inclined section adopts the low-type intermediate frame legs. When the inclination of the conveyor is greater than or equal to 45 degrees, it is recommended to use the type II low intermediate frame legs.

(3) Lower horizontal section: The lower horizontal section adopts low-type intermediate frame legs.

(4) Under special circumstances, this model can also have no lower horizontal section, and use a hopper to directly transport the material on the net to the upper end, and there will be material overflow at this time; it is also possible to directly unload the material from the driving drum without the upper horizontal section. ; When there is no lower horizontal section, the tailstock is installed on the inclined surface, and there is no concave arc section; when there is no upper horizontal section, the headstock and the convex arc section bracket are combined into one bracket.





Coal powder, crushed coal, soot, carbon black, ammonium bicarbonate, pyrite powder, ammonium chloride, copper concentrate powder, alumina powder, gypsum powder, limestone powder, soda powder, urea, activated carbon, sodium oxide, silicon Calcium acid, asbestos powder, synthetic resin, rubber powder, calcium carbide, pottery ten, synthetic fertilizer, powdered pesticide, calcium sulfate, thiamine, soda ash, powdered medicine, wheat, soybean, rice, sugar, starch, crushed charcoal, wood chips , sawdust, polyvinyl alcohol synthetic detergent, fly ash phosphate fertilizer, etc.





High temperature, toxic, flammable and explosive, highly abrasive, highly corrosive, highly adhesive, highly suspending, highly fluid, hard and brittle Materials that do not want to be broken.







1. The factors causing the deviation must be eliminated in time.

2. Adhere to the maintenance system to avoid man-machine accidents.

3. No-load start or stop, strictly abide by the operating procedures and sequences.

4. Keep records of equipment use and maintenance, and do a good job of handover work.





1. Check whether there is any abnormality in the joint part of the tape, such as cuts, cracks, etc., and damage caused by other reasons.

2. Whether the upper and lower layers of the tape are worn, and whether the sidewall is worn.

3. Check whether the rubber scraper of the cleaning device is severely worn and cannot be in close contact with the tape. If so, adjust or replace the rubber scraper.

4. Keep each idler rotating flexibly, and replace the non-rotating or damaged idler.

5. Refuel all kinds of bearings regularly.

6. Repair or replace other worn parts or components.

7. Repair or replace the tape.







Belt conveyor idler type





Pre-Sale Service:

• Guide customers to choose the appropriate equipment model.
• Send engineering and technical personnel to the production site in time to plan the site for customers, design reasonable processes and solutions.
• We can design and manufacture products according to the special needs of customers to meet the different needs of investors



On Sale Service:

• Strict inspection of products before leaving the factory
• Ships according to contract



After-sale Service:

• The main warranty period of the equipment sold by our company is one year (except for the failure or damage caused by human factors, fuel factors or irresistible natural phenomena, and vulnerable parts are not covered by the warranty: fuel injectors, pump heads, photosensitive eyes, etc.).
• If the equipment failure is caused by human factors, the cost will be charged according to the factory price.
• After receiving the warranty notice, reply within 2 hours. 24 hours technical guidance to solve problems.







Zhengzhou Odifei Machinery Equipment Co., Ltd. has been focusing on conveying equipment for 17 years. Its main business is: spiral vibration vertical elevator, slat feeder, chain plate conveyor, slat conveyor, Large inclination belt conveyor, large angle Large inclination belt conveyor, screw conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, TH ring chain bucket elevator, NE bucket elevator, NSE bucket elevator and other full range of bucket elevators. TD75 Large inclination belt conveyor (or Large inclination belt conveyor), mobile conveyor, Large inclination belt conveyor with large inclination angle ribs; screw conveyor, shaftless screw conveyor; light, medium and heavy chain plate conveyor; chain bucket conveyor machine, SCD trough clinker conveyor; horizontal double shaft mixer; light, medium and heavy plate feeder; GZG motor vibration feeder; trommel screen, shaftless trommel screen;

In 2010, our company's R&D team entered the resource recycling industry, and successively developed domestic waste treatment scaly conveyors, domestic waste screening and sorting shaftless trommel screens, construction waste slat feeders, and electric arc furnace scaly scrap conveyors, which not only create It also creates objective social and environmental benefits, and is an indispensable part of the resource recycling industry chain.

Zhengzhou Odifei Machinery Equipment Co., Ltd. has continuously carried out technological innovation in the spirit of excellence, and has developed several practical new products. The product is advanced in design, fine in production, reliable in performance, has international advanced level, sells well at home and abroad, and aims to be the industry leader!





Q: Are you a factory or a trading company? When we build a Large inclination belt conveyor, can we use it to convey other materials?

A: We are a factory, established in 2007, specializing in the manufacture of spiral vibration vertical elevator, slat feeder, chain plate conveyor, slat conveyor, Belt conveyor, large angle belt conveyor, screw conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, and so on.

This belt conveyor can transport a variety of materials, such as powder, particle and block.



Q: How about spare parts?

A: We always provide spare parts at cost price and give you a list of spare parts when you buy the machine.



Q: Will you test the Large inclination belt conveyor before delivery?

A: Yes, we will test each machine and production line before delivery, and send the working video to you. You can also check with us before delivery.



Q: How long is the warranty?

A: one year. After one year, paid services are provided for life.



Q: What are the payment methods?

A: T/T, L/C are all available. Both USD and RMB are acceptable.



Q: Can the Large inclination belt conveyor be customized?

A: Yes, we are a manufacturer and accept customization.











1. Please provide material name, specific gravity, particle size, etc

2. Are there other characteristics: such as viscosity, temperature, corrosivity, etc?

3. Conveying length, horizontal conveying or inclined conveying?

4. Conveying capacity / hour



If you are interesting in Large inclination belt conveyor, please feel free contact us in 24 hours!
