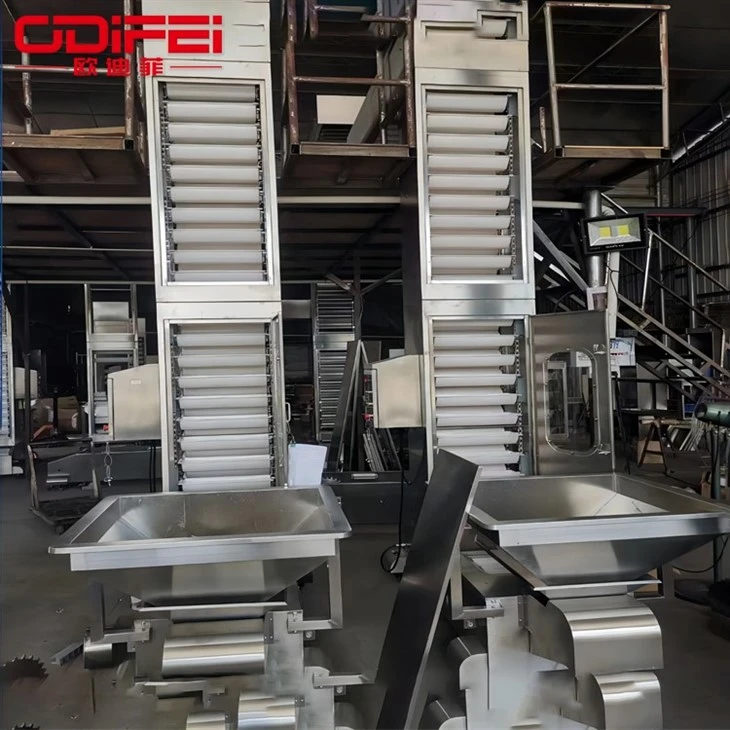

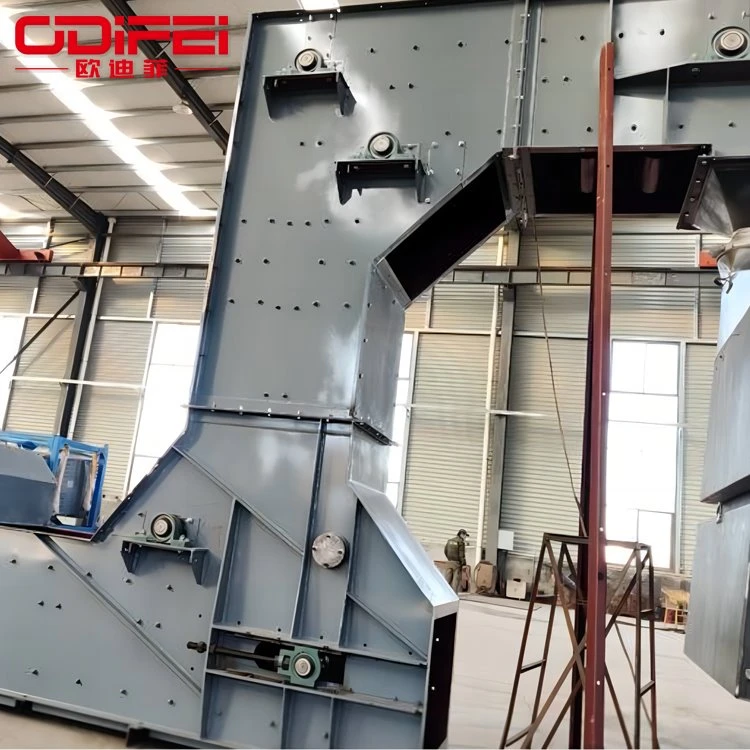

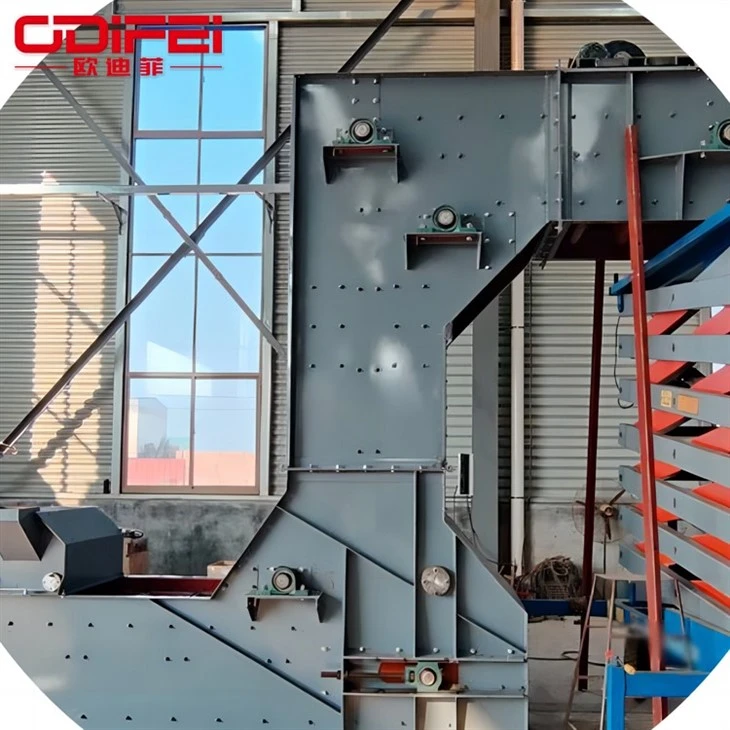

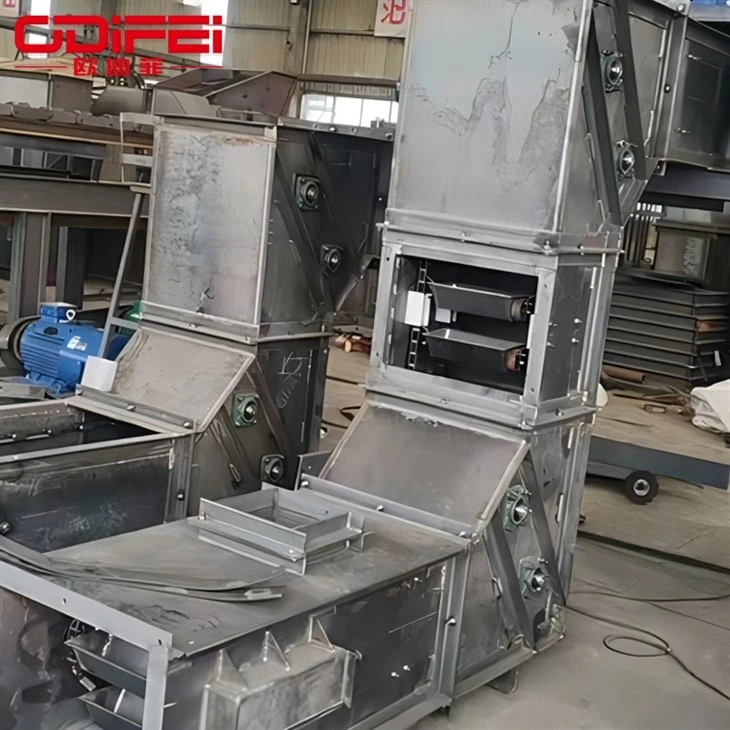

Z-shaped Bucket Elevator



The Z-shaped Bucket Elevator is driven by a motor and a reducer. The traction parts are two chains for transmission and conveying. Both sides of the hopper are suspended on the two chain pins, respectively. Unloading: Z-type bucket elevator consists of drive system, transmission system, casing parts (upper casing, standard middle casing, guide rail standard middle casing, inspection middle casing, lower casing), tensioning device, feeding system, Unloading system, lubrication system, and electrical control system.

1. Sealed operation without pollution

Wide lifting range. The shell of the whole machine is airtight, and there is no leakage during operation. It can be equipped with a vibrating feeder, and the whole process of inflow feeding, conveying, and unloading; not only can it lift general powder, small particles, and no dust flying, and meet environmental requirements.

2. Anti-spill

Feeding at a uniform speed, overcoming the overflow phenomenon of the full hopper

3. Prevent material damage

No damage to the object itself, reducing the scrap rate

4. Can lift and convey a variety of materials

It can not only lift and convey powder and granules, but also improve the abrasiveness of materials

1. The Z-shaped Bucket Elevator is composed of running parts, driving device (slow rotation device), upper device, middle casing, and lower device.

2. Running parts consist of the hopper and sleeve roller chain.

3. Driving device - adopts Y series motor, reducer, and chain drive reducer, etc. (electronic control switch user-defined).

4. The Slow-running device-adopting a geared motor, linked with a reducer and a chain drive reduction device through a clutch, generally used during equipment maintenance, this device is user-selectable.

Because the Z-shaped Bucket Elevator is a mechanical product, it has a certain degree of professionalism, so it is necessary to quote before quotation.

To communicate with customers, the following information:

1. What material is the customer conveying?

2. What is the bulk specific gravity of the material?

3. What are the upper horizontal distance and the lower horizontal distance? What is the conveying height?

4. What is the required delivery volume per hour?

5. Others, such as: material moisture content, equipment material, etc.
