Introduce

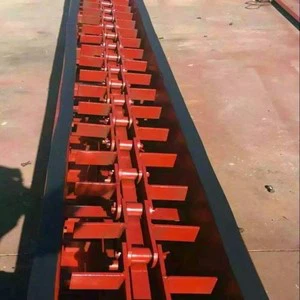

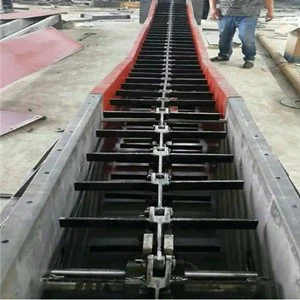

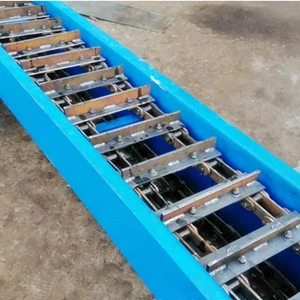

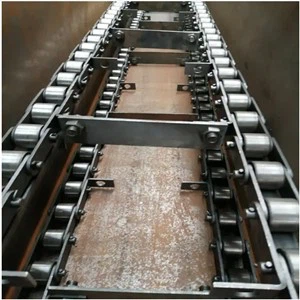

An embedded scraper conveyor is a kind of conveying equipment that continuously conveys bulk materials with the help of a moving scraper chain in a closed rectangular shell. Because the scraper chain is buried in the transported materials in the conveying process, it is called a buried embedded scraper conveyor.

Features
1. The Fu chain embedded scraper conveyor has the advantages of small volume and large conveying capacity.
2. Long service life and low cost
3. The use of low energy consumption, the energy consumption is only 30% ~ 60% of the screw conveyor.
4. Good sealing, green, and environmental protection.
5. Multipoint feeding or unloading

Technical Parameter
| Embedded Scraper Conveyor | |||||
| model | FU150 | FU200 | FU270 | FU350 | FU410 |
| Groove width (mm) | 150 | 200 | 270 | 350 | 410 |
| Ideal particle size (mm) | <4 | <5 | <7 | <9 | <11 |
| Maximum particle size (mm) | <8 | <10 | <14 | <18 | <20 |
| Conveying capacity (m³/h) | 10 | 22 | 40 | 50 | 80 |
The Structure

Application
The Embedded Scraper Conveyor is suitable for dry, powdery to small granular materials with a certain coefficient of internal friction. Examples include: grains, feed, flour, cement, plastic granules, calcium carbonate, and coal powder.

Types
Due to the different use conditions, use space, and coal seam thickness, the requirements for conveying capacity and laying length are also different. Therefore, there are many types of embedded scraper conveyors produced and used at home and abroad.







Delivery
