Apron Feeder Mining

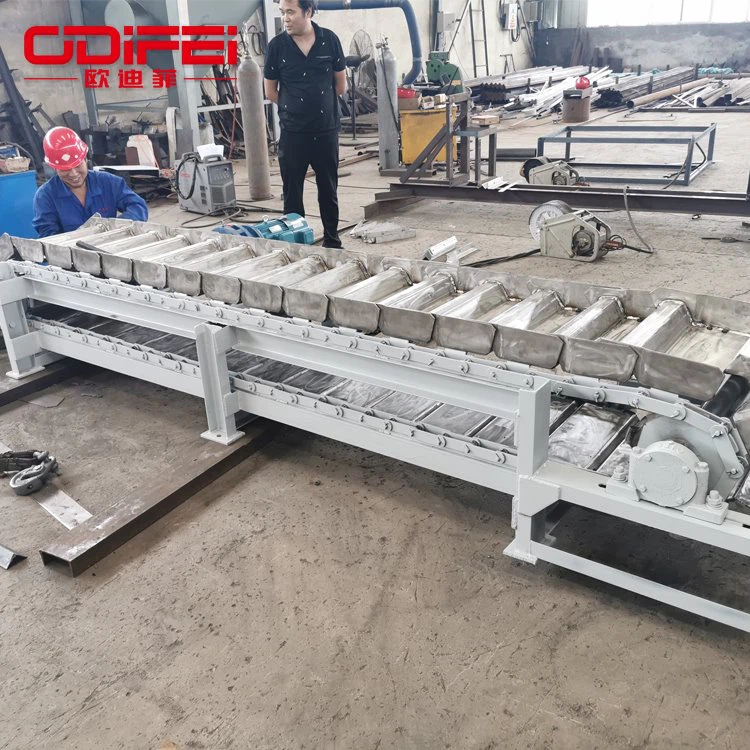

The apron plate conveyor is a general-purpose fixed conveying equipment, which uses the circulating chain or roller as the traction component and the steel plate as the transport tank. It can be used for the transportation of a large number of bulk materials and single heavy objects. Its traction force is large, the tank plate is rigid, impact resistant, and is suitable for the transportation of hot, large-size, highly abrasive, heavy castings and forgings and other large materials or finished articles, It can be used to transport various bulk materials and finished articles horizontally or obliquely, and it can also be used to transport finished articles in the flow production line. It can also transport high-temperature materials at about 600 ℃. Apron Feeder Mining has been widely used in chemical industry, machinery, metallurgy, coal, mining, electric power, casting, automobile manufacturing, cement, garbage disposal and other industries.





• Wide application range: except for materials with extremely high viscosity, general solid materials or finished articles can be transported.
• It is suitable for conveying hot, large-sized, highly abrasive, heavy castings and forgings and other large materials or finished articles.
• It can be used to transport various bulk m aterials and finished articles horizontally or obliquely, and it can also be used to transport finished articles in the flow production line.
• It can transport high-temperature materials of about 600 ℃.
• Large conveying capacity; The traction chain has high strength and can be used for long-distance transportation.
• Process processing operations such as classification, drying, cooling or assembly can be carried out during transportation.
• Smooth and reliable operation, low failure rate, long service life, simple installation and maintenance, large bearing capacity and wide speed selection range.





Model	Capacity t/h	Material size mm	Conveying speed m/s	Conveying length mm	Motor	Power KW	Reducer
BL400	20	130	0.8-3	~10	JZT－31-4	2.2	JZQ250
				>10-20	32-4	3	350
				>20-30	41-4	4	350
				>30-40	42-4	5.5	400
BL500	25	150	0.8-3	~10	32-4	3	350
				>10-20	41-4	4	400
				>20-30	42-4	5.5	400
				>30-40	51-4	7.5	500
BL650	35	200	0.8-3	~10	41-4	4	400
				>10-20	42-4	5.5	500
				>20-30	51-4	7.5	500
				>30-40	52-4	10	650
BL800	55	280	0.8-3	~10	42-4	5.5	500
				>10-20	51-4	7.5	650
				>20-30	52-4	10	650
				>30-40	61-4	13	750

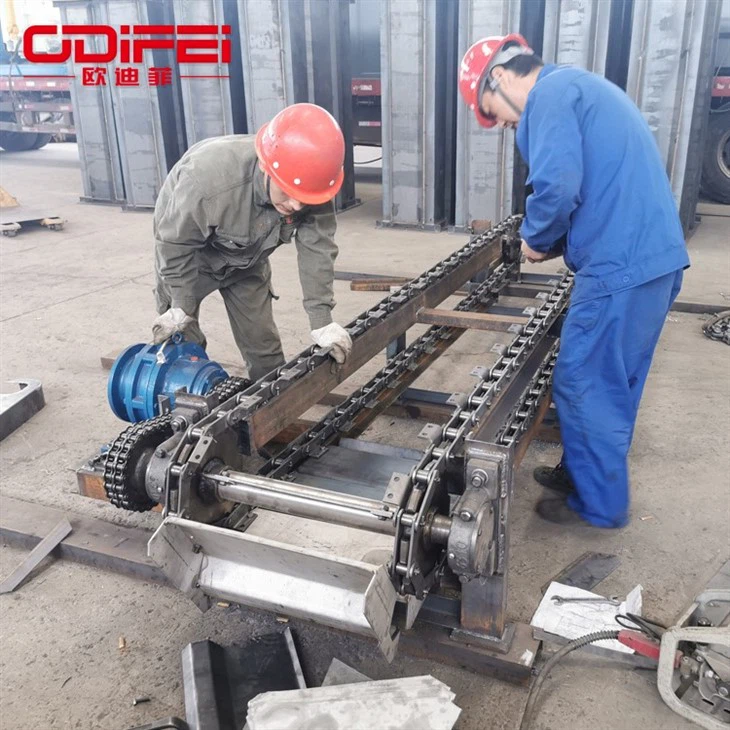

Driving device of Apron Feeder Mining: the driving components often adopt sprocket, drum wheel with socket, special claw wheel and chain crawler device with special claw shape. The function of the tensioning device is to obtain the initial tension of the traction component. In the Apron Feeder Mining, the initial tension must make the tension of the traction component on the winding branch of the drive sprocket enough to ensure that the traction component can be wound out of the drive sprocket correctly.

Base of Apron Feeder Mining: it is generally welded with angle steel or channel steel, and its head and end ends are made into separate frames for installing driving devices and tensioning devices; The middle straight-line section is generally made into a 4 ~ 6m metal structure section to support the walking part.

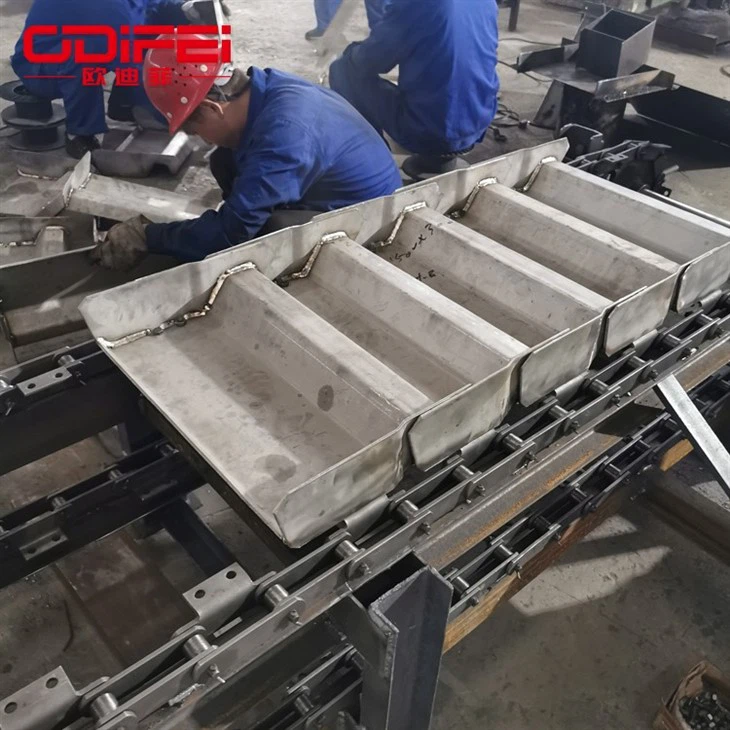

Base plate bearing member of Apron Feeder Mining: it is fixed on angle steel or parts of special structure, and the latter is fastened with traction members. The structural form of base plate depends on the physical properties of the transported goods, the conveying capacity and the placement form of the goods on the base plate, including wave type without edge, wave type with edge and deep type with edge.

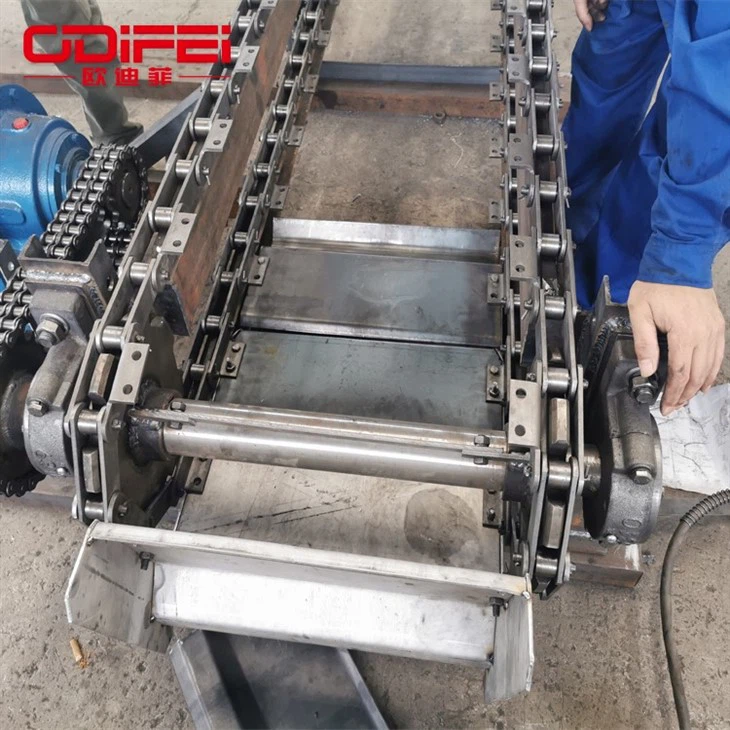

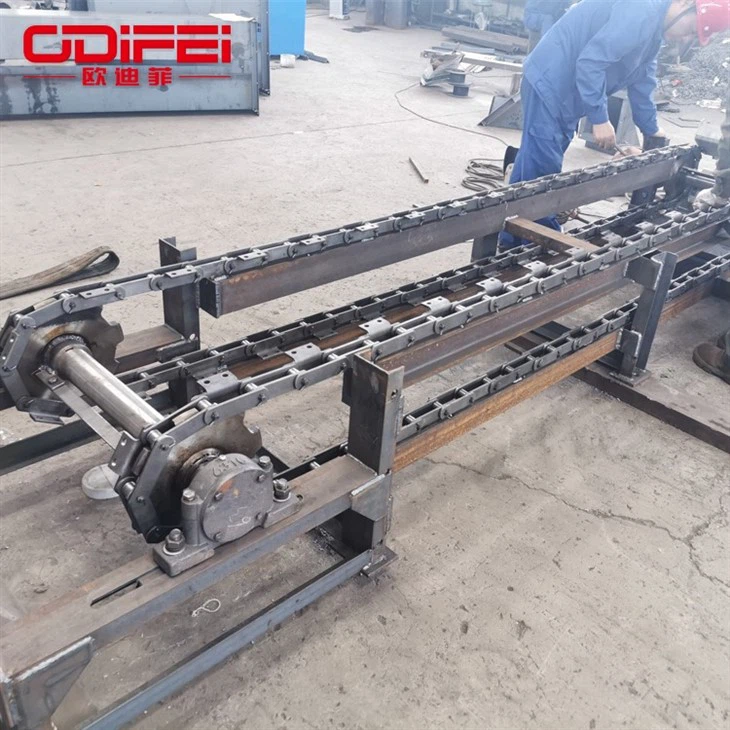

Flake chain of Apron Feeder Mining: it is a kind of chain widely used. The inner chain is fixed on the end face of bushing with interference fit, while the outer chain is fixed on the pin shaft with lock. Therefore, when the chain is bent on the sprocket, the friction occurs between the pin shaft and the bushing, the pressure distribution surface is large, and the joint wear is small. At the same time, the chip chain is more impact resistant, reliable and stable. Its disadvantage is that it can only bend in the plane perpendicular to the plate, can not bear the bending action in other directions, and the chain joint is sensitive to dust, easy to be worn, and the cost is high. The segments of the chip chain are in pairs, so the chain effect on the conveyor is even.





Coal powder, crushed coal, soot, carbon black, ammonium bicarbonate, pyrite powder, ammonium chloride, copper concentrate powder, alumina powder, gypsum powder, limestone powder, soda powder, urea, activated carbon, sodium oxide, silicon Calcium acid, asbestos powder, synthetic resin, rubber powder, calcium carbide, pottery ten, synthetic fertilizer, powdered pesticide, calcium sulfate, thiamine, soda ash, powdered medicine, wheat, soybean, rice, sugar, starch, crushed charcoal, wood chips , sawdust, polyvinyl alcohol synthetic detergent, fly ash phosphate fertilizer, etc.





High temperature, toxic, flammable and explosive, highly abrasive, highly corrosive, highly adhesive, highly suspending, highly fluid, hard and brittle Materials that do not want to be broken.







1. The slat conveyor considers its own production conditions. The applications of slat conveyors in different industries are different. For large electromechanical industries such as automobiles and home appliances, heavy-duty Apron Feeder Minings should be selected, and industries such as food and electronics should choose light chain conveyors.

2. The slat conveyor determines the conveying material requirements. The chain plate of the Apron Feeder Mining is made of polypropylene, polyethylene, acetal, nylon, stainless steel, etc.; the frame of the Apron Feeder Mining is composed of stainless steel, high-strength aluminum alloy, carbon steel plate bending, carbon steel channel, etc., according to Choose the appropriate sheet material for the characteristics of the material you are transporting.

3. The slat conveyor determines the conveying direction. According to the different conveying directions, the scale plate conveyor is divided into linear phosphorus plate conveyor line, climbing phosphorus plate conveyor, turning chain plate conveyor, vertical phosphorus plate conveyor, curved phosphorus plate conveyor, accumulating phosphorus plate conveyor, etc. . Select the conveying direction according to the space characteristics of the site.

4. Determine the basic parameters of the slat conveyor. The width, height, spacing, length, conveying speed and carrying capacity of the conveyor can be set according to the needs of the producer.













No.	Name	Quantity	Remarks	No.	Name	Quantity	Remarks
1	Flake Hopper		On demand	4	Transmission large sprocket	1piece
2	Chain		On demand	5	Drive chain		On demand
3	Transmission small sprocket	1piece		6	Pin		On demand





(1) Common width of scale conveyor: b=650mm, 800mm, 1000mm, 1200mm, 1500mm, 2000mm; Among them, b=800mm, 1000mm and 1500mm are widely used;

(2) Weight of single object transported: generally 75kg, * up to 120-150kg;

(3) Conveyor length: generally 60-120m, * up to 200m;

(4) Conveyor Express Series: v=0.8, 0.96, 1.2, 1.5, 1.8, 2.4, 3.0m/min;

(5) Lifting height of conveyor: h=2.2-4.5m, * up to 10m;

(6) For various materials, the allowable inclination angle of the conveyor is 25 degrees;

(7) When the conveyor is installed on the workshop ground or open ground, the clearance height from the chord top of the return side scale plate to the ground shall not be less than 200mm; When installed in the pit, the clearance height shall not be less than 300mm. Under certain circumstances and limited by certain external conditions, the clearance height can be determined as required.





Pre-Sale Service:

• Guide customers to choose the appropriate equipment model.
• Send engineering and technical personnel to the production site in time to plan the site for customers, design reasonable processes and solutions.
• We can design and manufacture products according to the special needs of customers to meet the different needs of investors



On Sale Service:

• Strict inspection of products before leaving the factory
• Ships according to contract



After-sale Service:

• The main warranty period of the equipment sold by our company is one year (except for the failure or damage caused by human factors, fuel factors or irresistible natural phenomena, and vulnerable parts are not covered by the warranty: fuel injectors, pump heads, photosensitive eyes, etc.).
• If the equipment failure is caused by human factors, the cost will be charged according to the factory price.
• After receiving the warranty notice, reply within 2 hours. 24 hours technical guidance to solve problems.







Zhengzhou Odifei Machinery Equipment Co., Ltd. has been focusing on conveying equipment for 17 years. Its main business is: spiral vibration vertical elevator, slat feeder, chain plate conveyor, slat conveyor, Apron Feeder Mining, large angle Apron Feeder Mining, screw conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, TH ring chain bucket elevator, NE bucket elevator, NSE bucket elevator and other full range of bucket elevators. TD75 Apron Feeder Mining (or Apron Feeder Mining), mobile conveyor, Apron Feeder Mining with large inclination angle ribs; screw conveyor, shaftless screw conveyor; light, medium and heavy chain plate conveyor; chain bucket conveyor machine, SCD trough clinker conveyor; horizontal double shaft mixer; light, medium and heavy plate feeder; GZG motor vibration feeder; trommel screen, shaftless trommel screen;

In 2010, our company's R&D team entered the resource recycling industry, and successively developed domestic waste treatment scaly conveyors, domestic waste screening and sorting shaftless trommel screens, construction waste slat feeders, and electric arc furnace scaly scrap conveyors, which not only create It also creates objective social and environmental benefits, and is an indispensable part of the resource recycling industry chain.

Zhengzhou Odifei Machinery Equipment Co., Ltd. has continuously carried out technological innovation in the spirit of excellence, and has developed several practical new products. The product is advanced in design, fine in production, reliable in performance, has international advanced level, sells well at home and abroad, and aims to be the industry leader!





Q: Are you a factory or a trading company?

A: We are a factory, established in 2007, specializing in the manufacture of spiral vibration vertical elevator, slat feeder, chain plate conveyor, slat conveyor, Apron Feeder Mining, large angle Apron Feeder Mining, screw conveyor Conveyor, chain bucket conveyor, TD belt bucket elevator, and so on.



Q: How about spare parts?

A: We always provide spare parts at cost price and give you a list of spare parts when you buy the machine.



Q: Will you test the machine before delivery?

A: Yes, we will test each machine and production line before delivery, and send the working video to you. You can also check with us before delivery.



Q: Can this Apron Feeder Mining be resistant to high temperature?

A: Yes, materials with a high temperature of less than 1000 degrees can be transported. Please contact the customer to explain the material characteristics, conveying volume and conveying length, etc. Thanks.

Q: Can a Apron Feeder Mining be used in a steel casting plant?

A : Yes, the Apron Feeder Mining is an ideal equipment for conveying sharp, hot, bulky and corrosive materials in industries such as iron and steel, mining, building materials, metallurgy, coal, chemical industry, etc.











1. Please provide material name, specific gravity, particle size, etc

2. Are there other characteristics: such as viscosity, temperature, corrosivity, etc?

3. Conveying length, horizontal conveying or inclined conveying?

4. Conveying capacity / hour



If you are interesting in Apron Feeder Mining, please feel free contact us in 24 hours!
